Figure 7. Installing the base cover

Steps

1. Connect the battery cable to the connector (BATT1) on the system board.

2. Place the base cover on top of the palm-rest and keyboard assembly.

3. Align the screw holes on the base cover with the screw holes on the palm-rest and keyboard assembly. Then, snap the base

cover latches into place.

4. Tighten the two captive screws and replace the six screws (M2x4) to secure the base cover to the palm-rest and keyboard

assembly.

Next steps

1. Follow the procedure in After working inside your computer.

Removing the base cover (for computers shipped with an aluminum

chassis)

Prerequisites

1. Follow the procedure in Before working inside your computer.

About this task

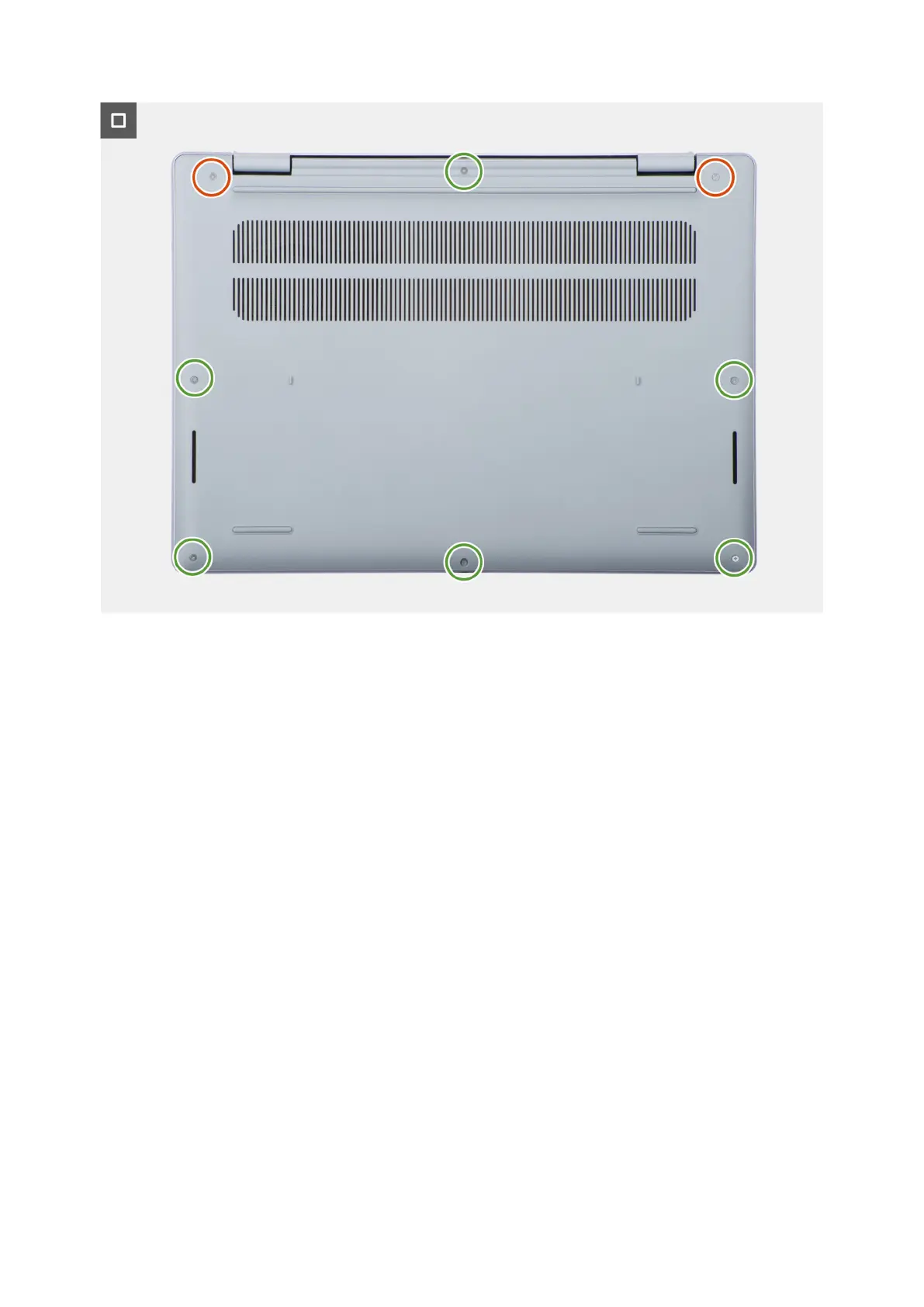

The following images indicate the location of the base cover and provide a visual representation of the removal procedure.

Removing and installing Customer Replaceable Units (CRUs)
