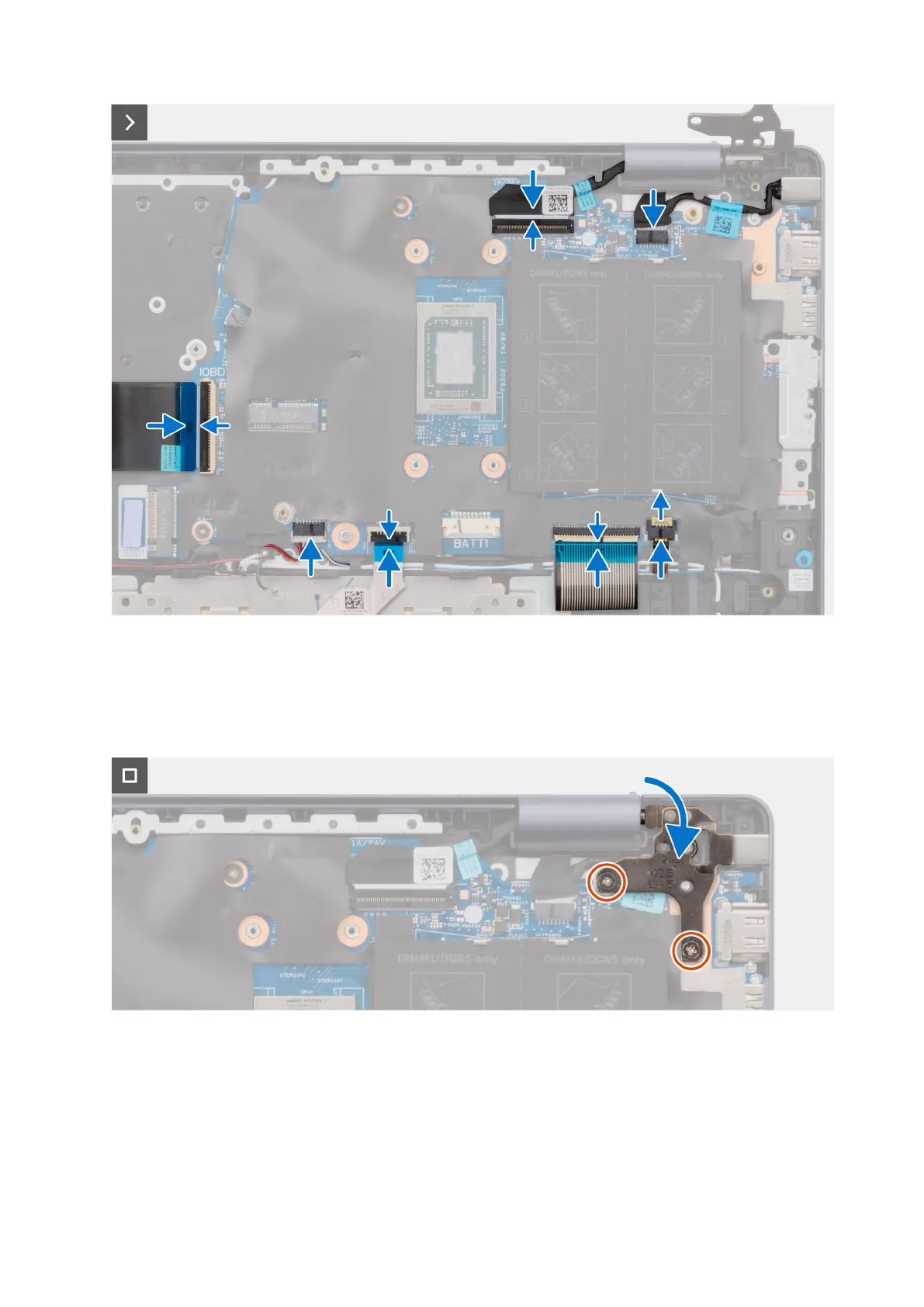

Figure 94. Installing the system board (for computers shipped with an aluminum chassis

8. Close the right display hinge to align the screw holes on the right display hinge with the screw holes on the system board

and the palm-rest and keyboard assembly.

9. Replace the two screws (M2.5x4.5) to secure the right display hinge to the system board and the palm-rest and keyboard

assembly.

Figure 95. Installing the system board

Next steps

1. Install the heat sink.

2. Install the 3-cell battery or the 4-cell battery, whichever is applicable.

3. Install the fan.

4. Install the wireless card.

106
