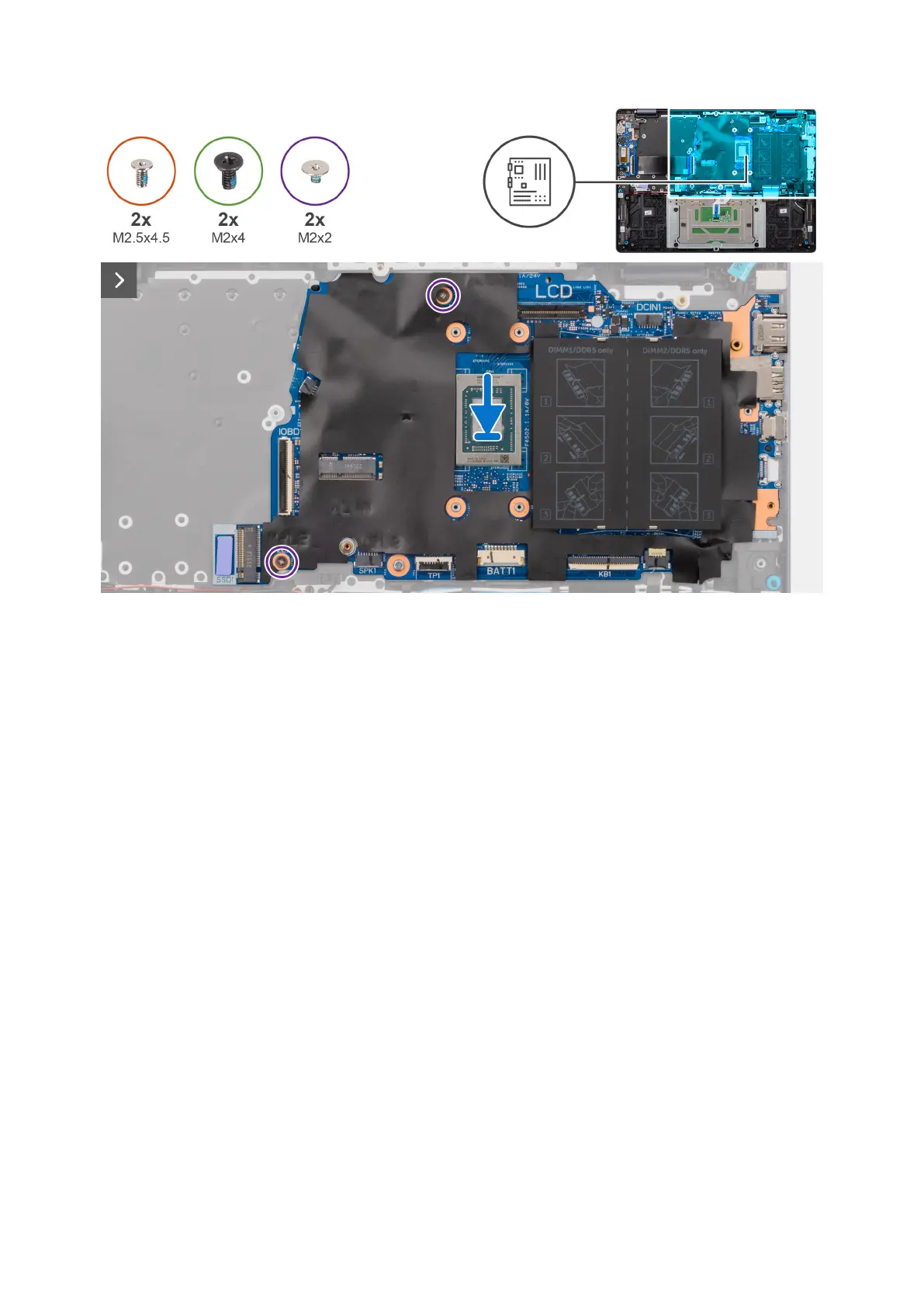

Figure 92. Installing the system board (for computers shipped with an aluminum chassis)

Steps

1. Align the ports on the system board with the port slots and place the system board on the palm-rest and keyboard assembly.

2. Align the screw holes on the system board with the screw holes on the palm-rest and keyboard assembly.

3. Replace the two screws (M2x2) to secure the system board to the palm-rest and keyboard assembly.

4. Place the USB Type-C port bracket in the slot on the system board.

5. Align the screw holes on the USB Type-C port bracket with the screw holes on the system board.

6. Replace the two screws (M2x4) to secure the USB Type-C port bracket to the system board.

104

Removing and installing Field Replaceable Units (FRUs)
