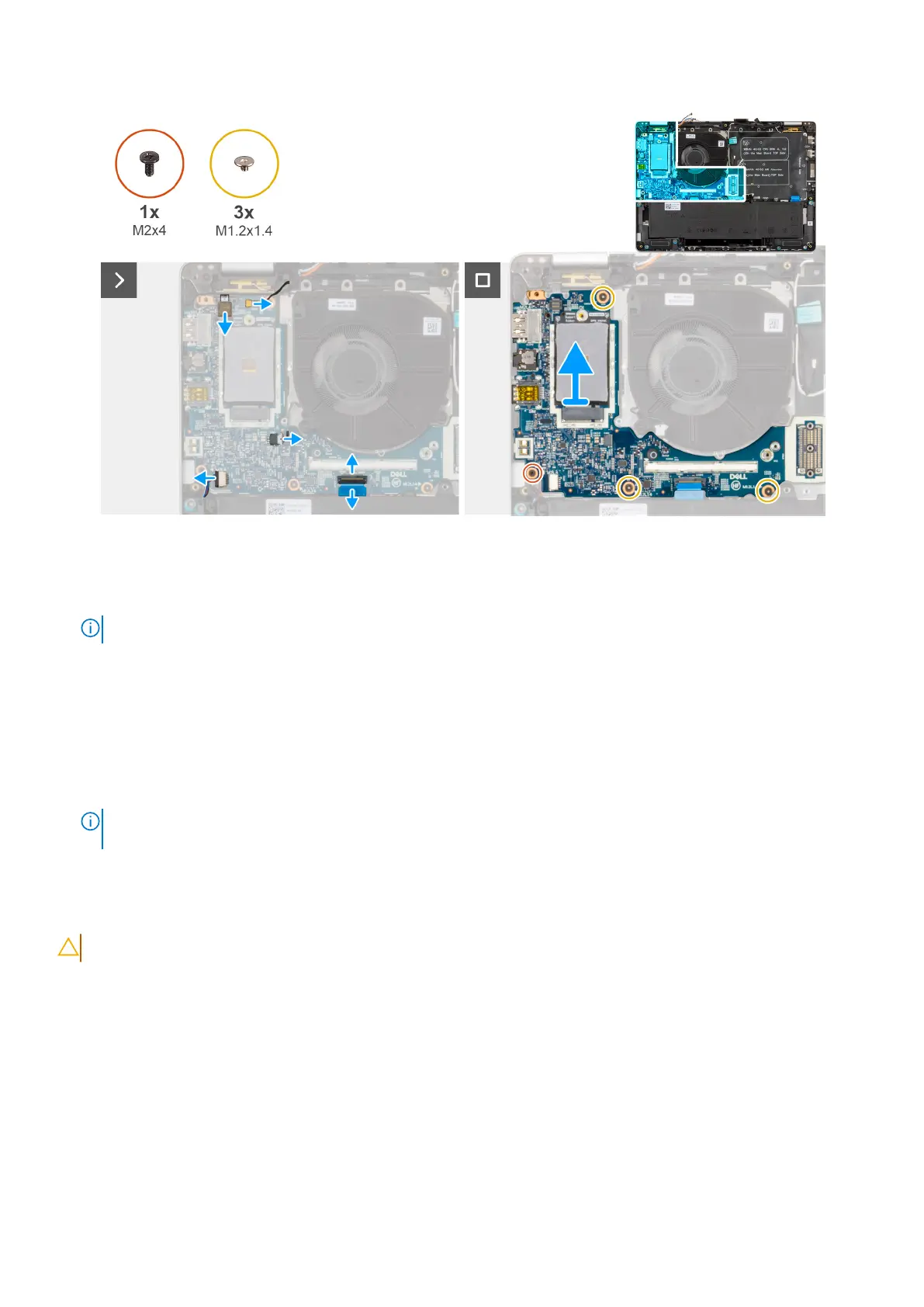

Figure 36. Removing the I/O board
Steps
1. Unroute the WWAN antenna cables from the routing guides on the I/O board.
NOTE: This step applies to models shipped with a USH daughter board.
2. Disconnect the optional fingerprint-reader cable from the I/O board.
3. Disconnect the speaker cable from the I/O board .
4. Disconnect the fan cable from the I/O board.
5. Disconnect the keyboard cable from the I/O board.
6. Remove the three screws (M1.2x1.4) that secure the I/O board in place.
7. Remove the screw (M2x4) that secures the I/O board in place.
8. Lift the I/O board away from the computer.
NOTE:
While replacing the I/O board, the WWAN card thermal pad mylar sticker at the top side of the I/O board must
be replaced to the replacement I/O board.
Installing the I/O board
CAUTION: The information in this installation section is intended for authorized service technicians only.
About this task
The following images indicate the location of the I/O board and provide a visual representation of the installation procedure.
