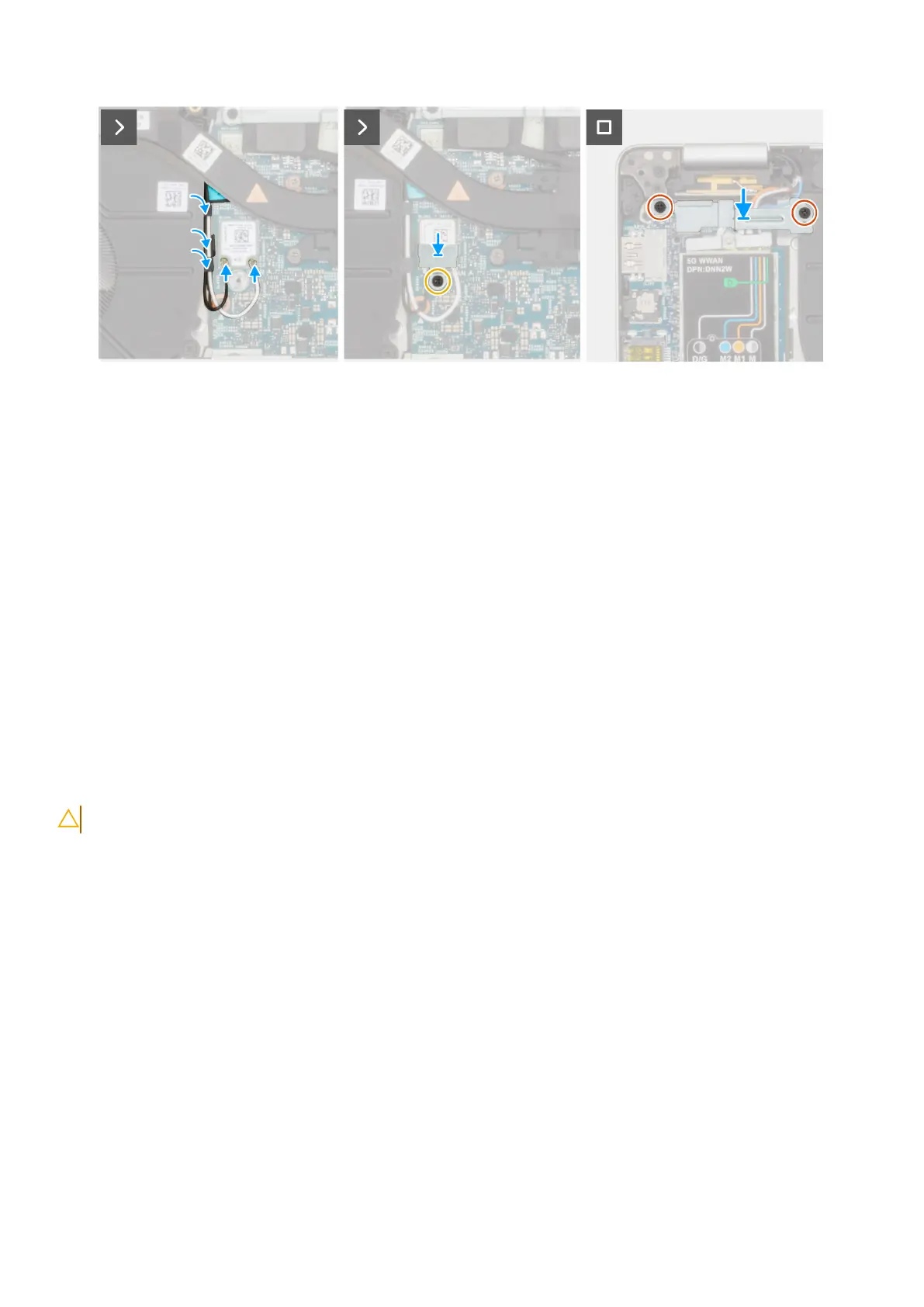

Figure 21. Installing the fan
Steps
1. Align the screw holes on the fan with the screw holes on the palm-rest assembly.
2. Replace the two screws (M2x4) that secure the fan to the palm-rest assembly.
3. Connect the fan cable to the fan-cable connector (FAN1) on the system board.
4. Replace the two screws (M2x4) that secures the 5G WWAN-card bracket to the 5G WWAN card.
5. Route the WWAN cable and antenna cable through the routing guides on the palm-rest assembly.
6. Connect the antenna cable to the WLAN card and tighten the captive screw to secure the WWAN bracket.
Next steps
1. Install the base cover.
2. Install the SIM card (optional).
3. Follow the procedure in After working inside your computer.
USH daughter board
Removing the USH-daughter board
CAUTION: The information in this removal section is intended for authorized service technicians only.
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the SIM card (optional).
3. Remove the base cover.
4. Remove the battery.
Removing and installing Field Replaceable Units (FRUs)
63
