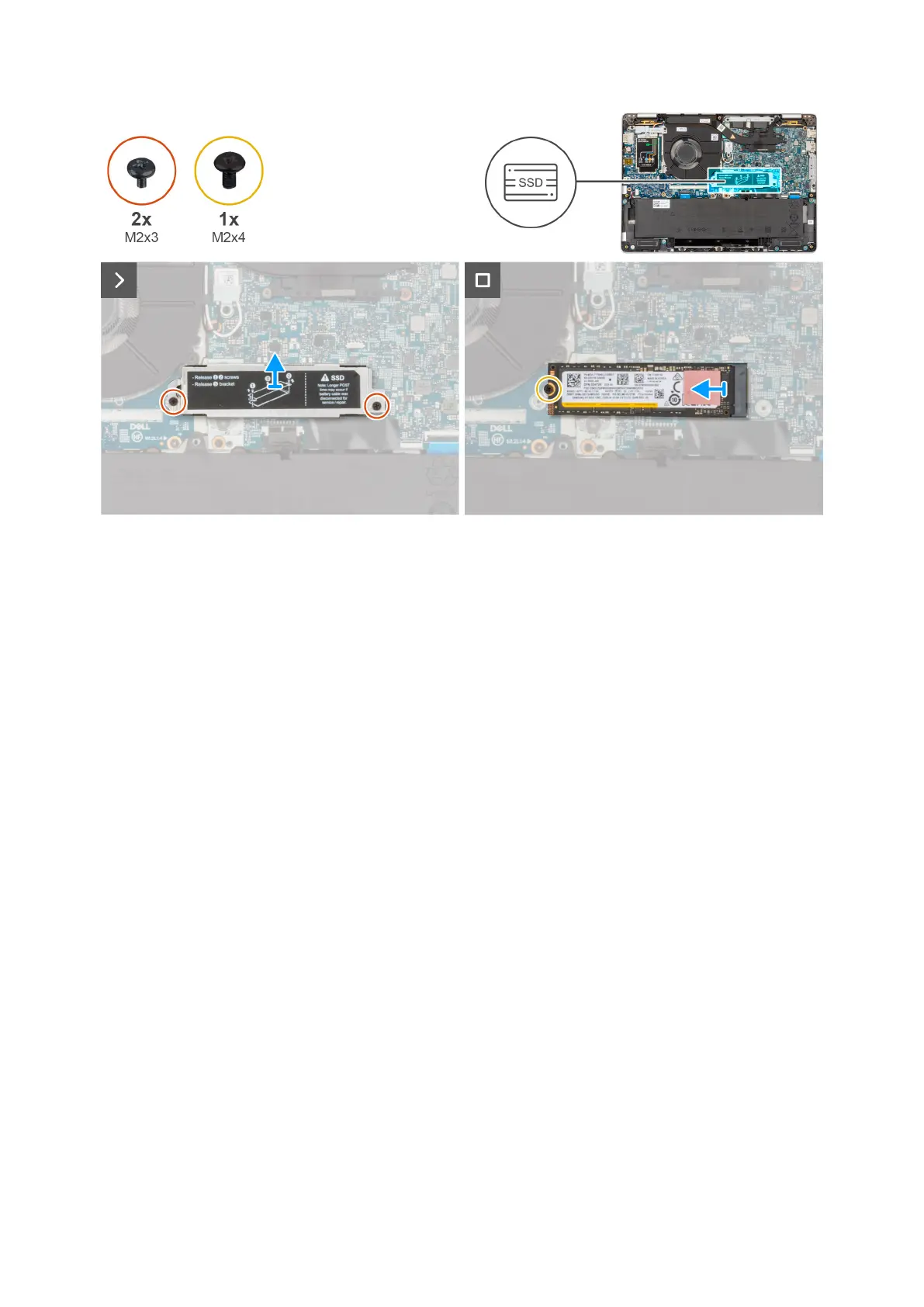

Figure 15. Removing the M.2 2280 SSD
Steps
1. Remove the two screws (M2x3) that secures the SSD bracket to the palm-rest assembly.
2. Lift the SSD bracket off the system board.
3. Remove the screw (M2x4) that secures the M.2280 SSD to the system board.
4. Remove the M.2 2280 SSD from the system board.
Installing the M.2 2280 SSD
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following images indicate the location of the M.2 2280 SSD and provide a visual representation of the installation procedure.
56
Removing and installing Customer Replaceable Units (CRUs)
