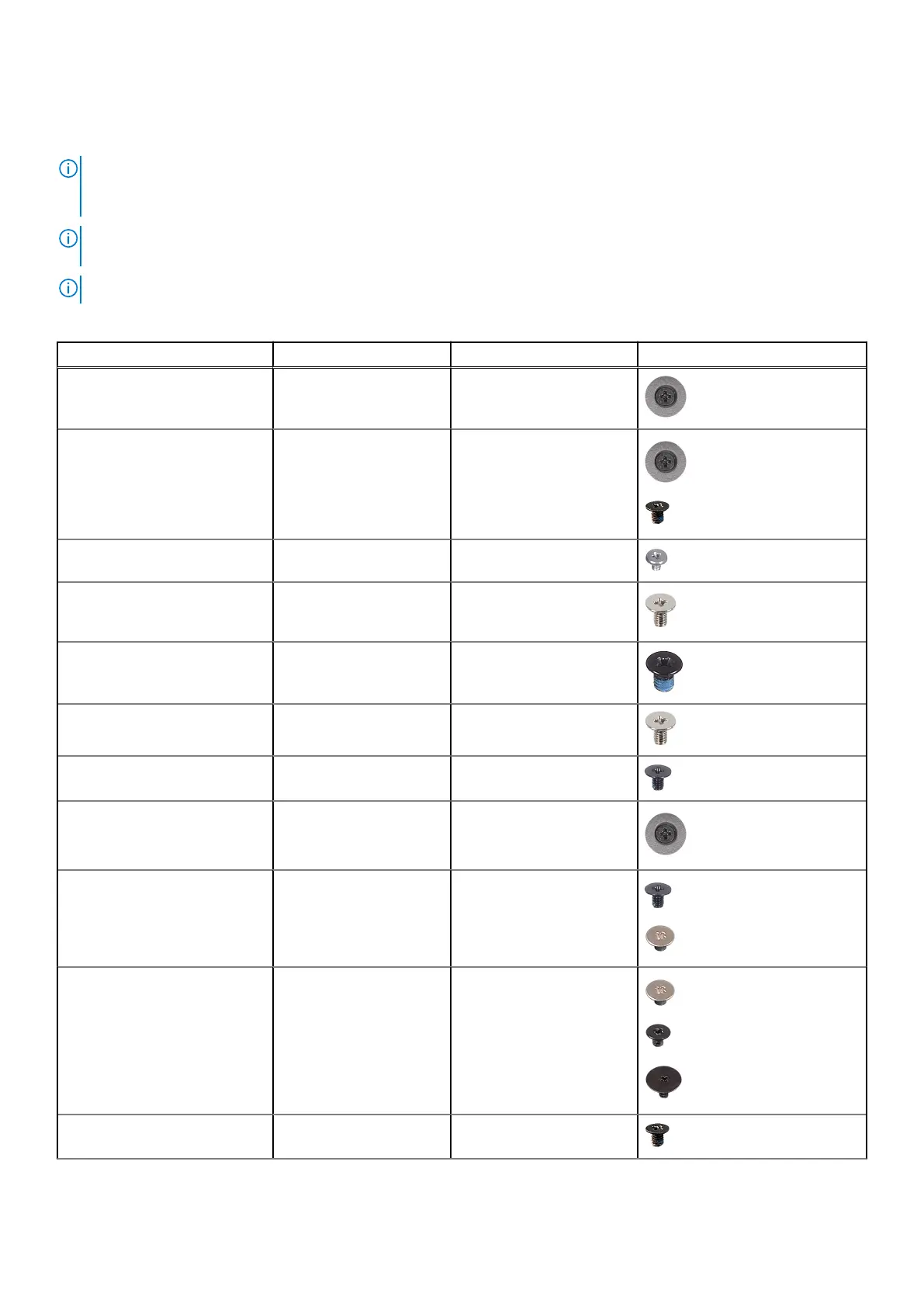

Screw list
NOTE: When removing screws from a component, it is recommended to note the screw type and the quantity of screws,
and then place them in a screw storage box. This is to ensure that the correct number of screws and correct screw type is
restored when the component is replaced.
NOTE: Some computers have magnetic surfaces. Ensure that the screws are not left attached to such surfaces when
replacing a component.
NOTE: Screw color may vary depending on the configuration ordered.
Table 27. Screw listî
Component Screw type Quantity Screw image
Base cover captive screws 8
Battery Captive screws 4
Display-cable bracket M2x2.5
2
Display hinges M2.5x3.5 6
Display Hinge cap M2x2.5
2
Display panel M2x2.5
2
Fan M2x4
2
Heat sink captoive screws
4
I/O Board M2x4
M1.2x1.4
1
3
Keyboard bracket
Keyboard
M2x2.5
M2x2
M2x2.2
1
16
2
M.2 2230 Solid state drive M2x4
1
