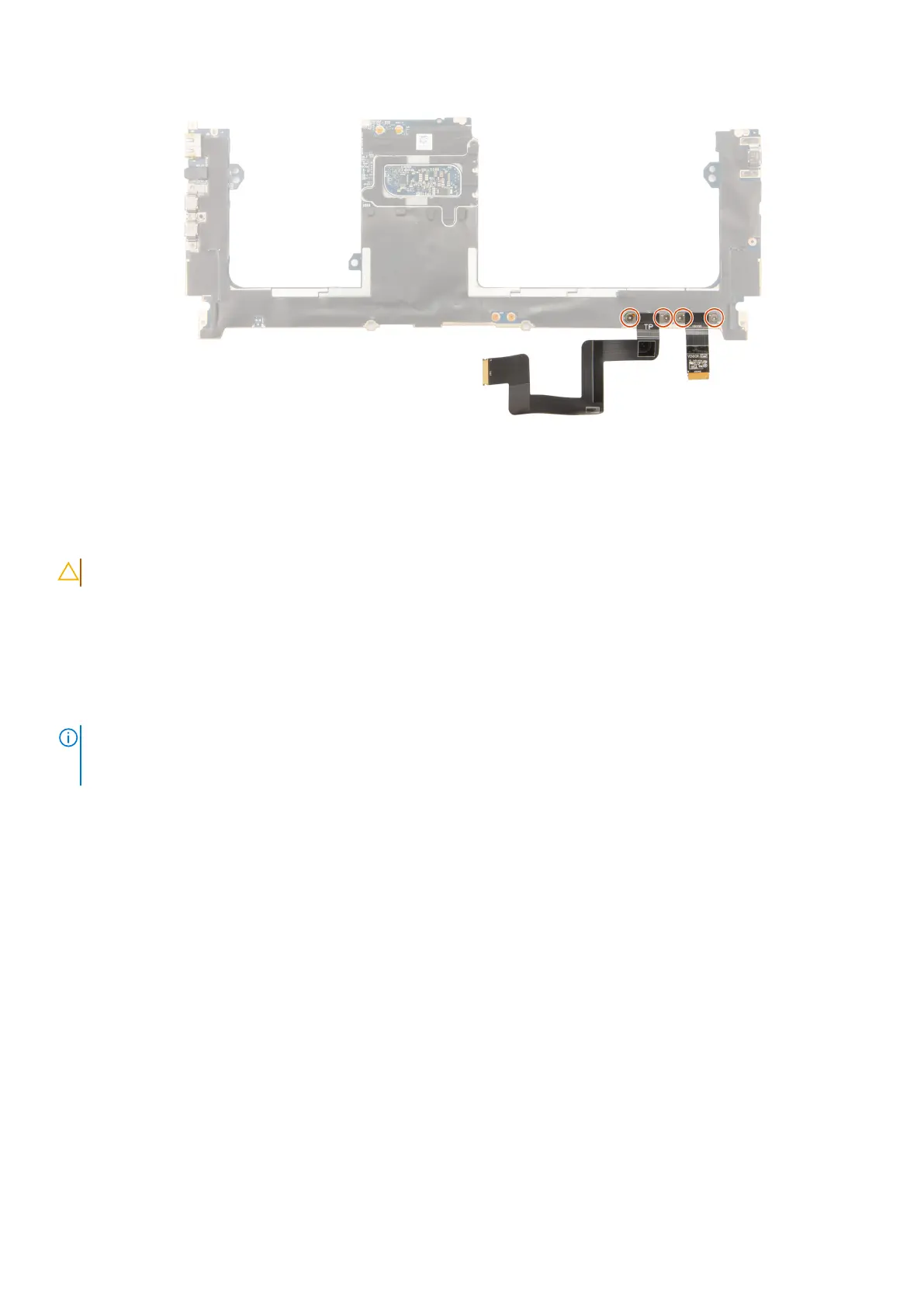

Figure 60. Touchpad FPC and USH board FPC
Installing the system board
CAUTION: The information in this removal section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the system board and provides a visual representation of the installation procedure.
NOTE:
Replacement of the system board requires further removal of the Haptics touchpad FPC and SD-card
daughterboard FPC/USH and SD-card daughterboard FPC. See disassembly procedures of Haptics touchpad and SD-card
daughterboard FPC/USH and SD-card daughterboard FPC for more information.
Removing and installing Field Replaceable Units (FRUs) 95
