Steps
1. Remove the two screws (M2x4) that secure the PC-bridge bracket in place.
2. Remove the PC-bridge bracket from the system board.
3. Remove the two screws (M2x4) that secure the dummy graphics card in place.
4. Remove the dummy graphics card from the system board.
Installing the dummy graphics card
CAUTION: The information in this installation section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
NOTE: The following procedure is applicable for computers that are shipped with an integrated graphics only.

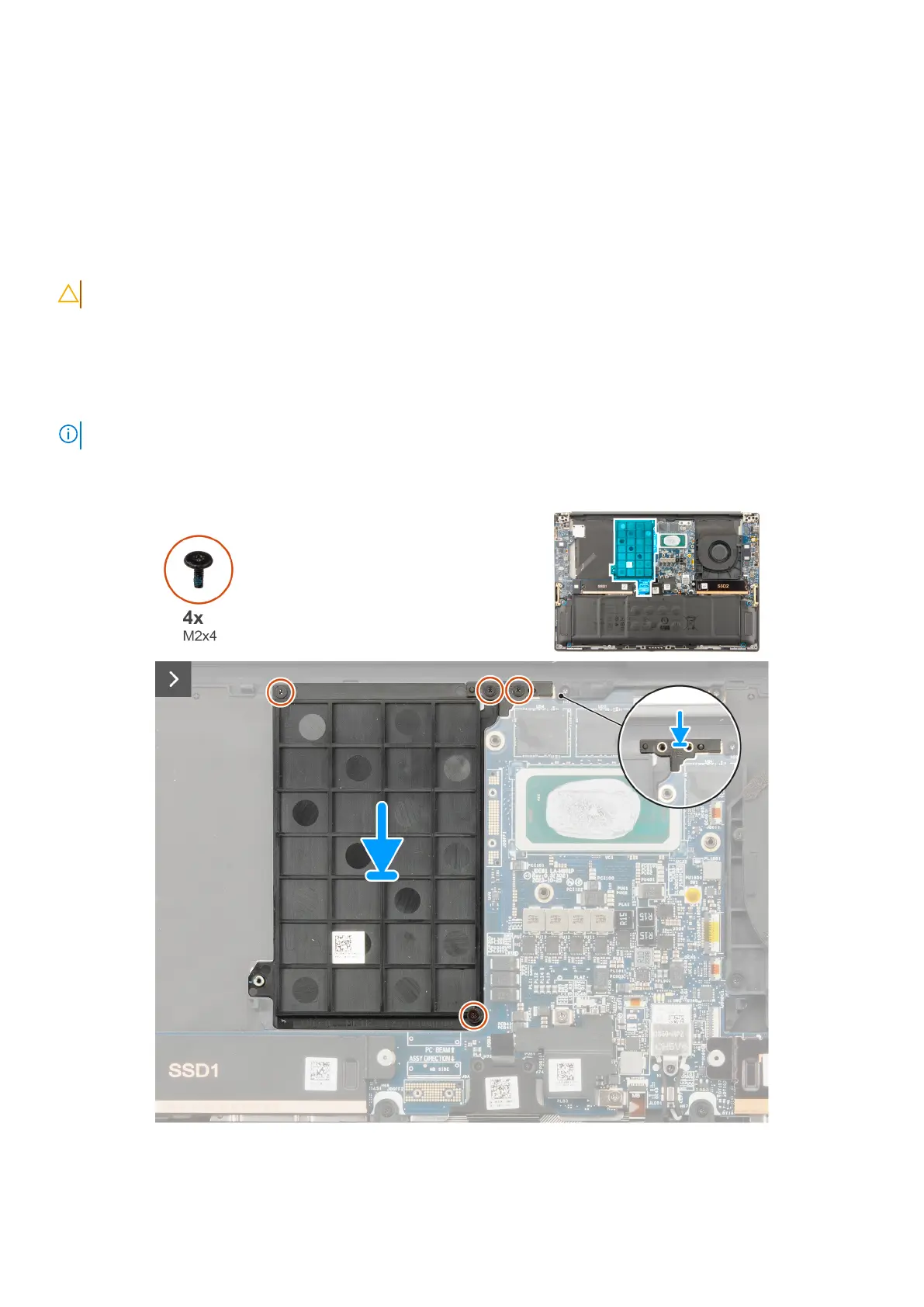

The following image indicates the location of the dummy graphics card and provides a visual representation of the installation
procedure.
Figure 52. Installing the dummy graphics card
Removing and installing Field Replaceable Units (FRUs)
87
