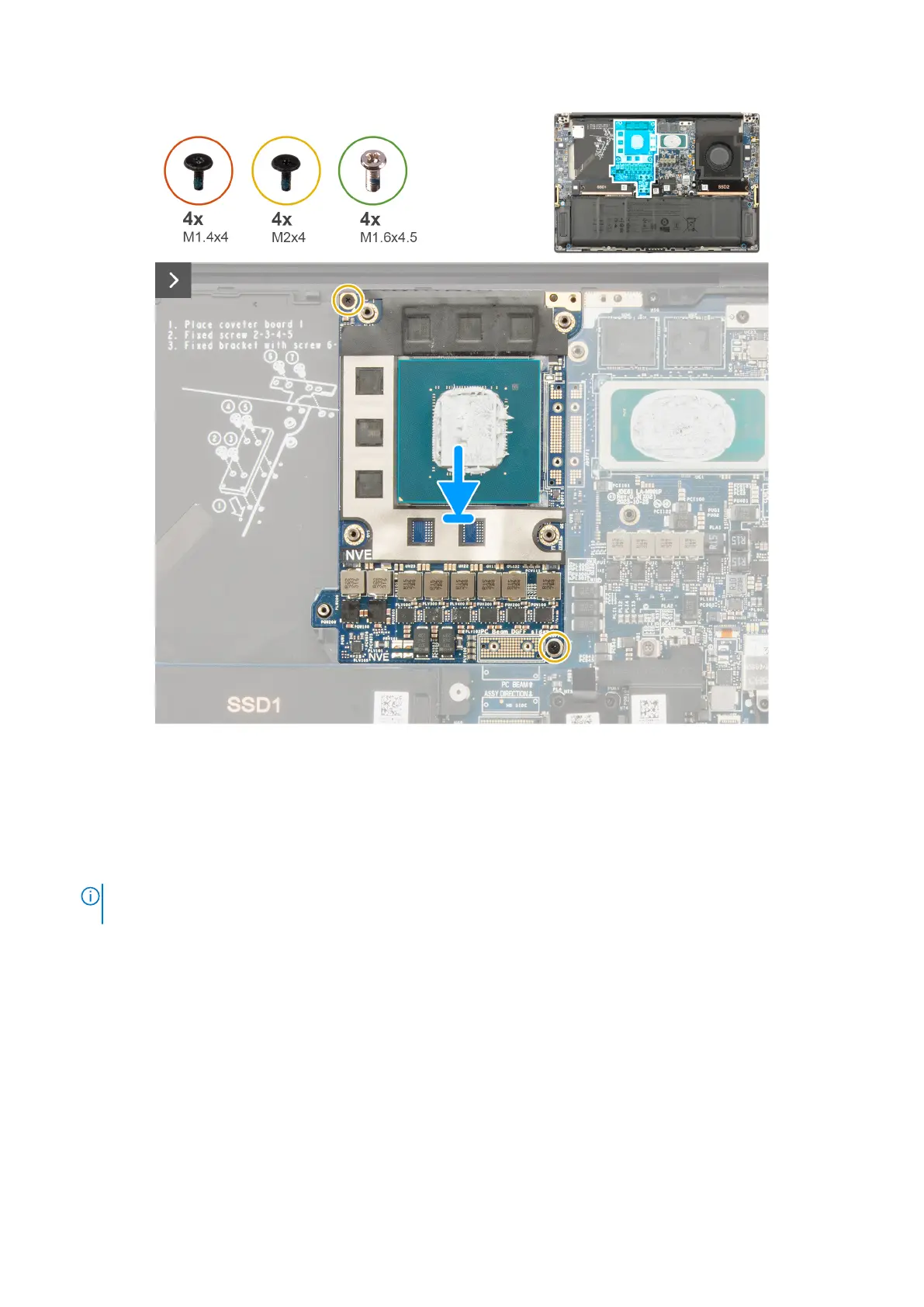

Figure 47. Removing the graphics card
Steps
1. Remove the four torx screws (T5, M1.4x4) sequentially as mentioned on the graphics-card FPC that secures the graphics-
card FPC in place.
2. Remove the graphics-card FPC from the connector on the system board.
3. Remove the two graphics-card FPC interposer boards from the system board.
NOTE:
The pins on the interposer board are fragile. Avoid contact with the pins on the board. When handling the
interposer board, lift and hold the board from the edges or the sides.
82 Removing and installing Field Replaceable Units (FRUs)
