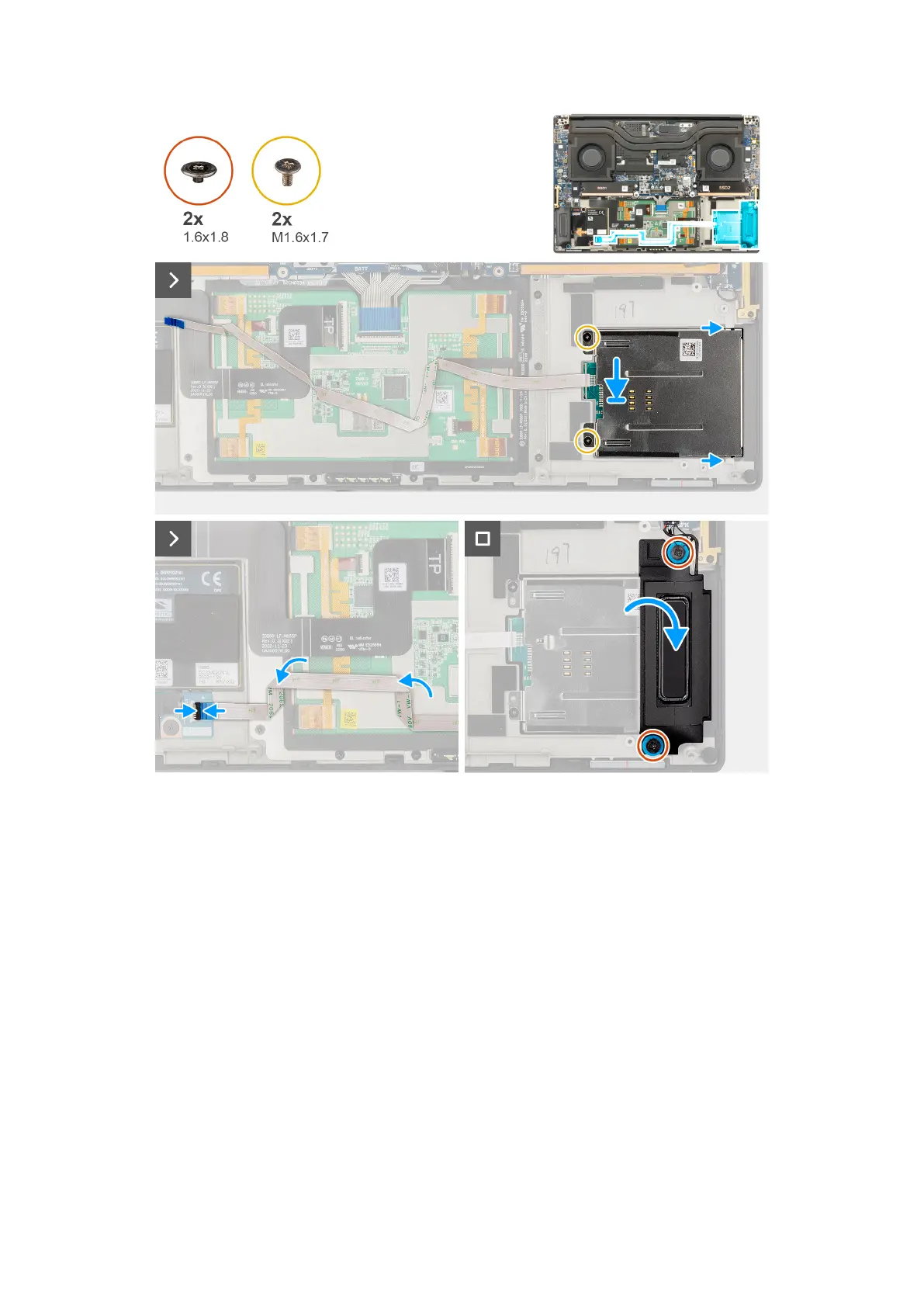

Figure 45. Installing the smart-card reader
Steps
1. Align and place the smart-card reader with the smart-card reader FFC into the slot on the chassis.
2. Replace the two screws (M1.6x1.7) to secure the smart-card reader to the chassis.
3. Adhere the smart-card reader FFC on the palm-rest assembly.
4. Connect the smart-card reader FFC cable to the connector on the USH and SD-card daugherboard.
5. Align and place the left speaker into the slot on the chassis.
6. Replace the two screws (M1.6x1.8) to secure the left speaker in place.
Next steps
1. Install the battery.
2. Install the base cover.
3. Install the SD card.
4. Follow the procedure in After working inside your computer.
80
Removing and installing Field Replaceable Units (FRUs)
