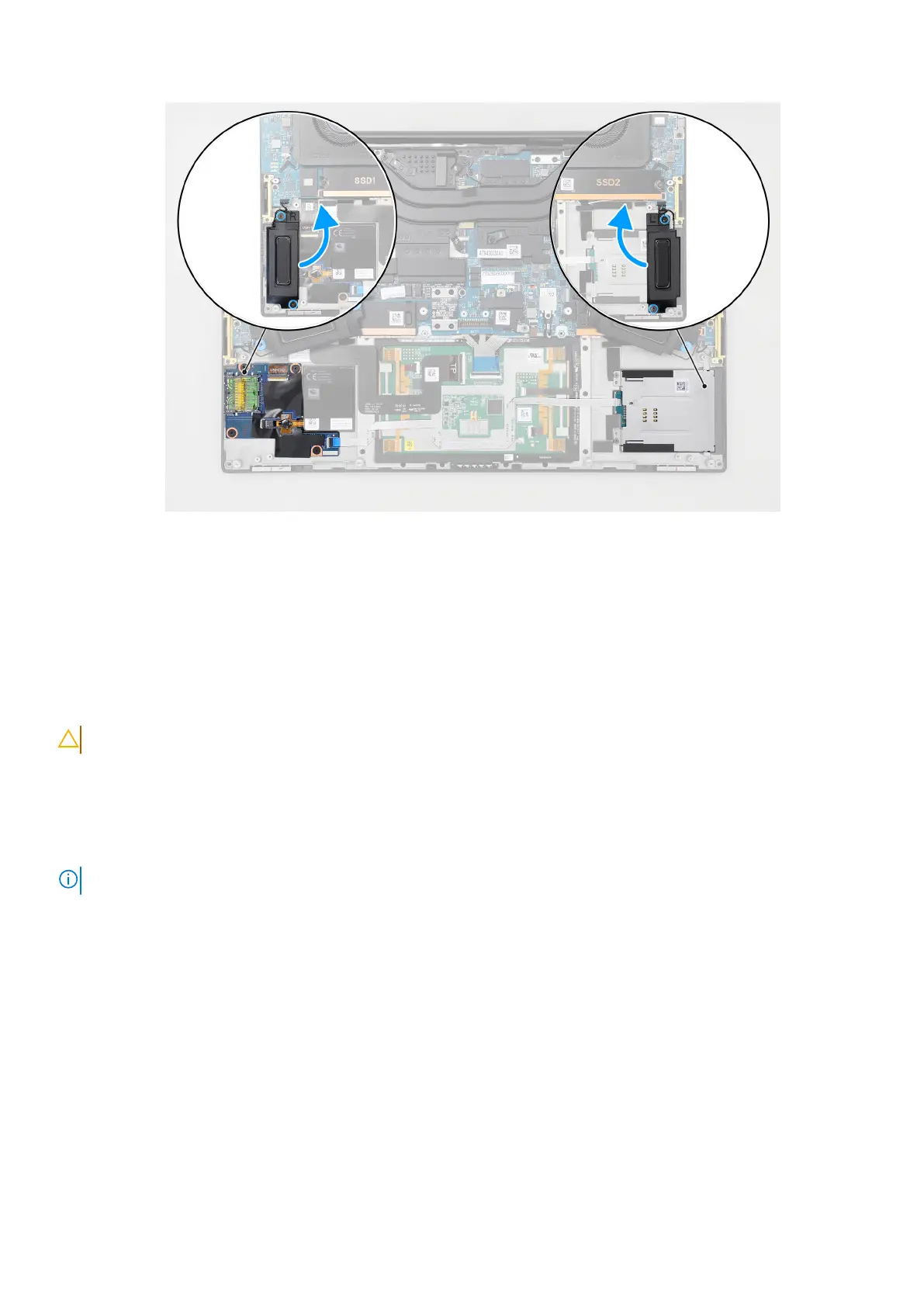

Figure 44. Speakers
3. Disconnect the smart-card reader FFC cable from the connectors on the USH and SD-card daughterboard.
4. Peel back the smart-card reader FFC from the palm-rest assembly.
5. Remove the two screws (M1.6x1.7) that secure the smart-card reader in place.
6. Lift and remove the smart-card reader with the smart-card reader FFC from the chassis.
Installing the smart-card reader daughterboard
CAUTION: The information in this installation section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
NOTE: The following procedure is applicable for computers that are shipped with a smart-card reader only.
The following image indicates the location of the smart-card reader and provides a visual representation of the installation
procedure.
Removing and installing Field Replaceable Units (FRUs)
79
