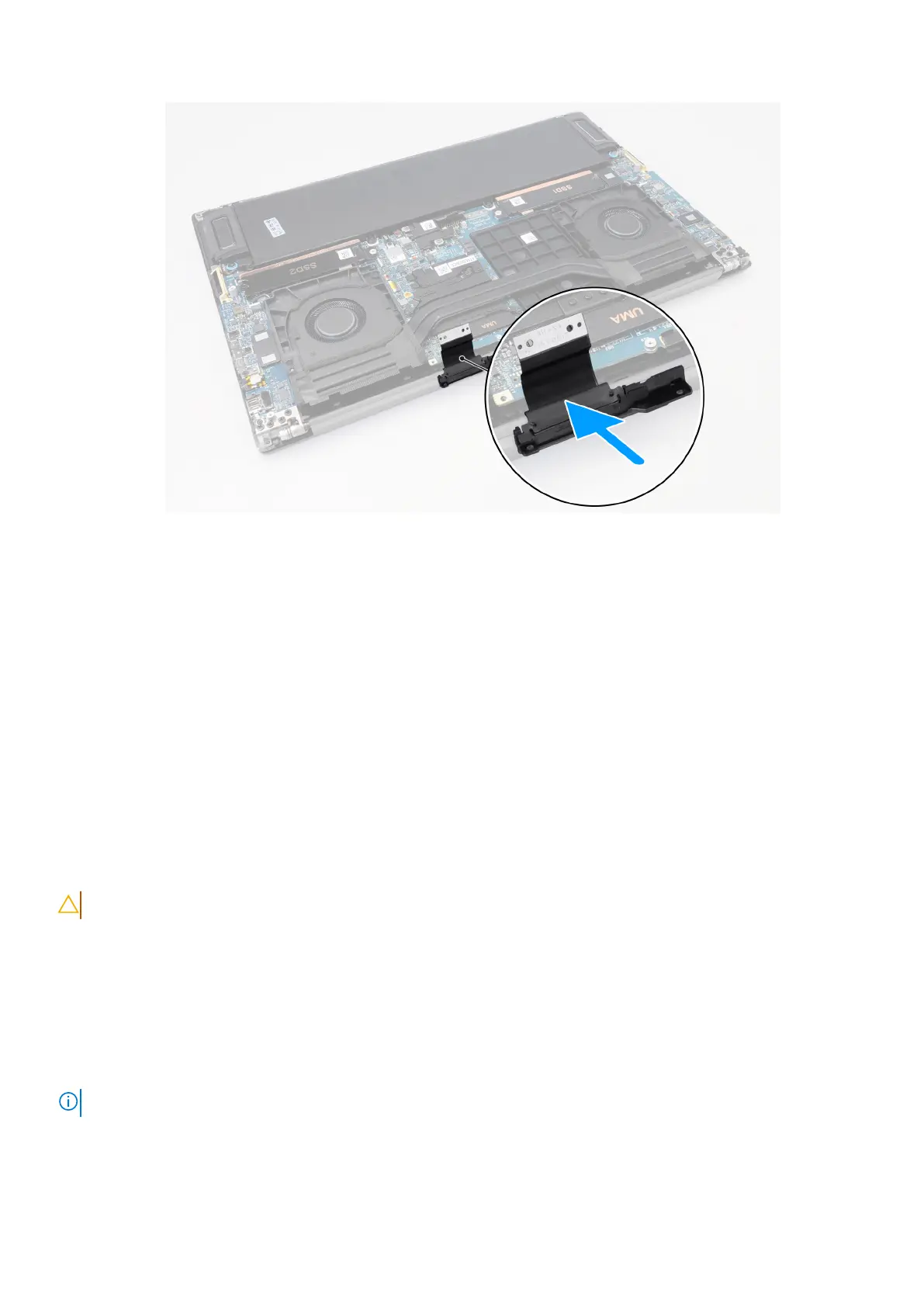

Figure 36. Display FPC
5. Replace the two torx screws (T5, M1.4x4) to secure the display-FPC cable in place.
6. Flip close the display-FPC cover.
7. Replace the two torx screws (T5, M1.4x4) to secure the display-FPC cover in place.
Next steps
1. Install the heat sink for computers that are shipped with a vapor chamber VC heat sink.
2. Install the base cover.
3. Install the SD card.
4. Follow the procedure in After working inside your computer.
SD-card daughterboard
Removing the SD-card daughterboard
CAUTION: The information in this removal section is intended for authorized service technicians only.
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the SD card.
3. Remove the base cover.
4. Remove the battery.
About this task
NOTE: The following procedure is applicable for computers that are shipped without a USH module only.
The following images indicate the location of the SD-card daughterboard and provide a visual representation of the removal
procedure.
72
Removing and installing Field Replaceable Units (FRUs)
