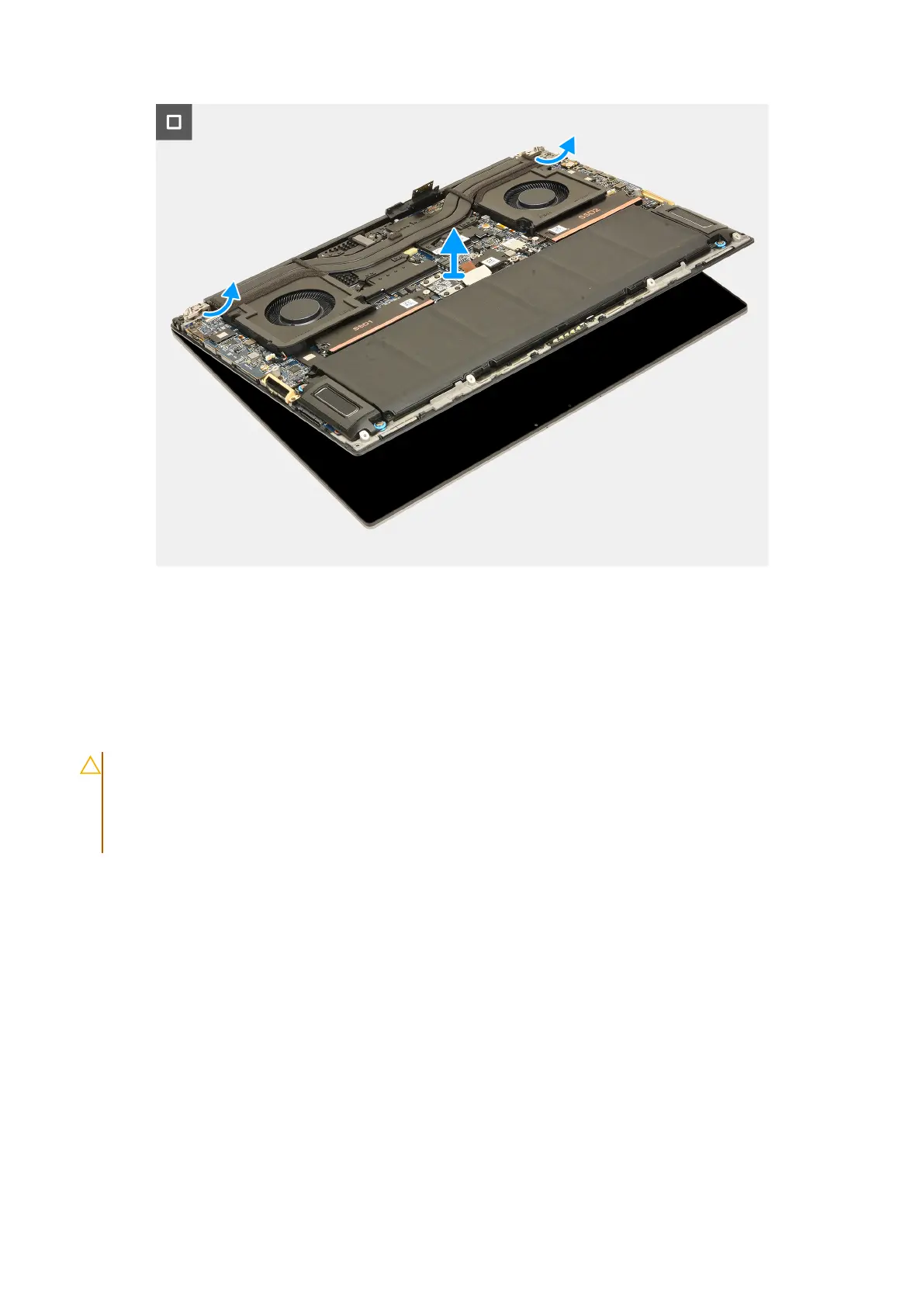

Figure 31. Removing the display assembly
Steps
1. Remove the two torx screws (T5, M1.4x4) that secure the display-FPC cover in place.
2. Flip open the display-FPC cover.
3. Remove the two torx screws (T5, M1.4x4) that secure the display-FPC cable in place.
4. Disconnect the display-FPC cable from the connector on the system board.
5. Remove the interposer board from the computer.
CAUTION:
The pins on the interposer boards that connect the FPCs to the computer or daughter board
are fragile. Technicians should avoid pushing or applying pressure to the pins on the interposer boards. Do
not perform any action that may scratch the pins, such as rotating or turning the boards while they are in
contact with any surface. When handling the interposer board, lift and hold the board from the edges or the
sides.
Removing and installing Field Replaceable Units (FRUs) 67
