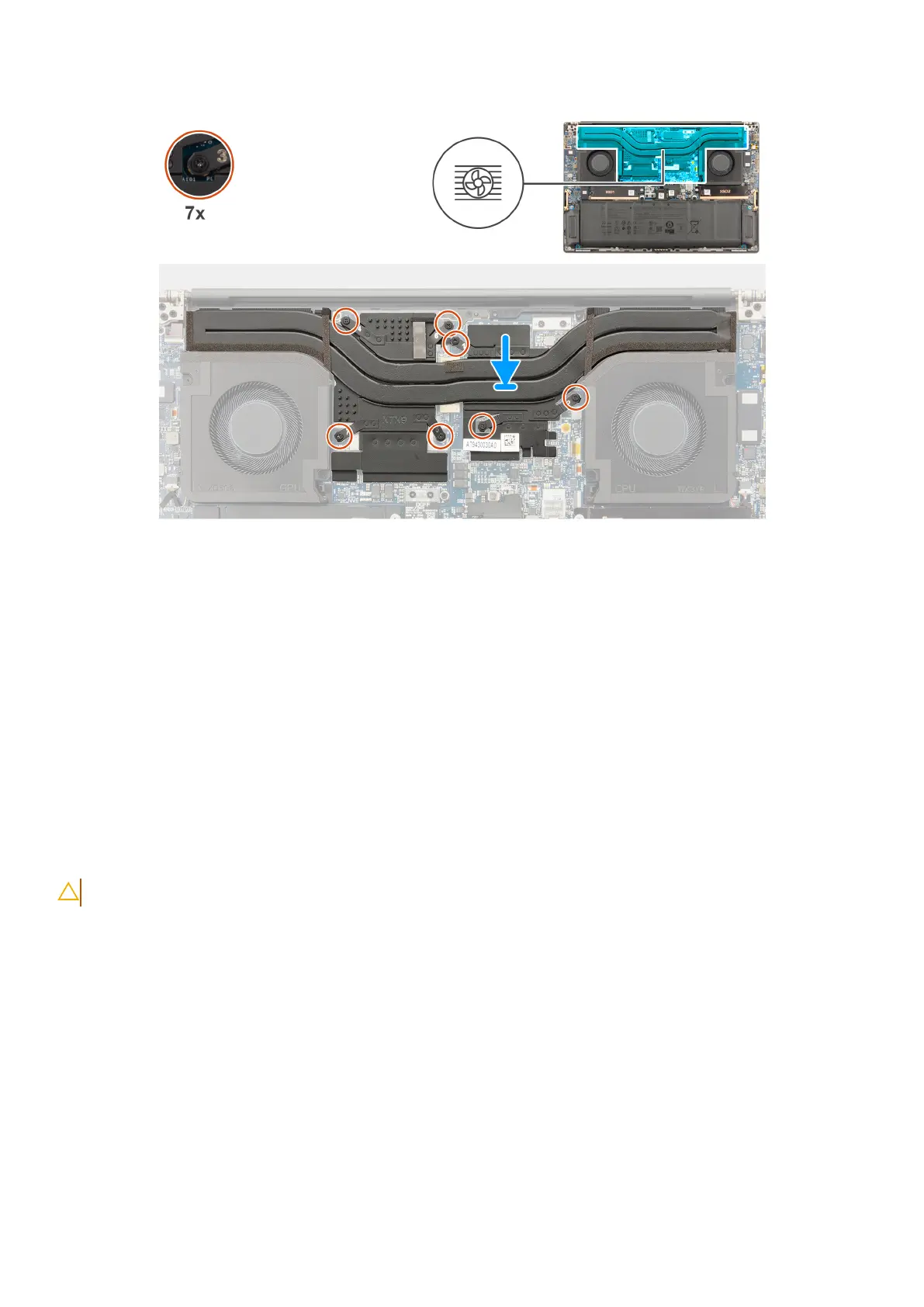

Figure 29. Installing the heat sink for discrete graphics
Steps
1. Align the screw holes on the heat sink with the screw holes on the system board.
2. Tighten the seven captive screws in ascending order (1>2>3>4>5>6>7) to secure the heat sink to the system board.
Next steps
1. Install the base cover.
2. Install the SD card.
3. Follow the procedure in After working inside your computer.
Display assembly
Removing the display assembly
CAUTION: The information in this removal section is intended for authorized service technicians only.
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the SD card.
3. Remove the base cover.
4. Remove the heat sink for computers that are shipped with vapor chamber VC heat sink.
About this task
The following images indicate the location of the display assembly and provide a visual representation of the removal procedure.
Removing and installing Field Replaceable Units (FRUs)
65
