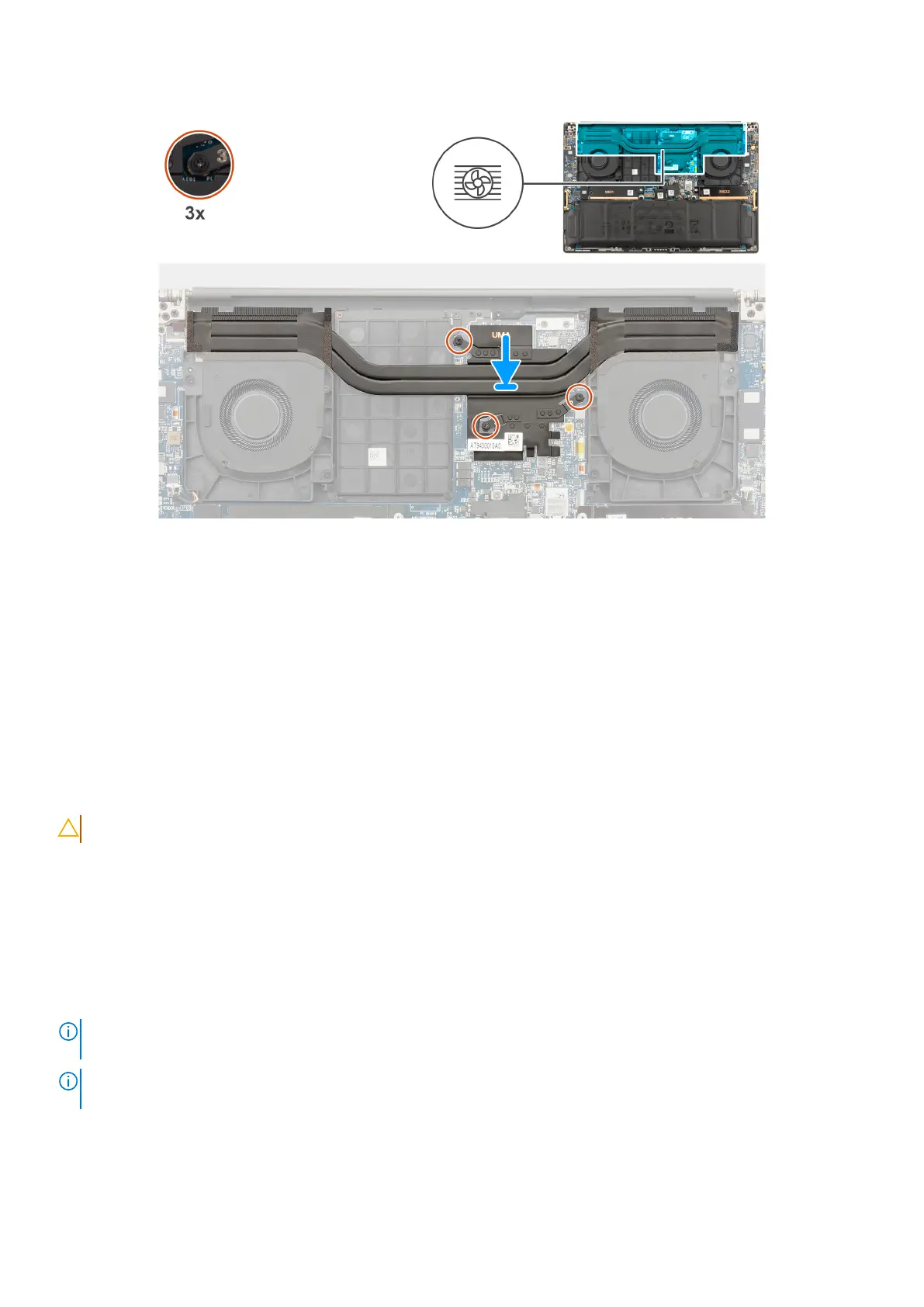

Figure 27. Installing the heat sink for integrated graphics
Steps
1. Align the screw holes on the heat sink with the screw holes on the system board.
2. Tighten the three captive screws in ascending order (1>2>3) to secure the heat sink to the system board.
Next steps
1. Install the base cover.
2. Install the SD card.
3. Follow the procedure in After working inside your computer.
Removing the heat sink for discrete graphics
CAUTION: The information in this removal section is intended for authorized service technicians only.
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the SD card.
3. Remove the base cover.
About this task
The following image indicates the location of the heat sink and provides a visual representation of the removal procedure.
NOTE:
For computers that are shipped with a heat sink labeled “VC” (Vapor Chamber), the heat sink must be removed
before the removal of the display assembly or system board.
NOTE: For computers that are shipped with a heat sink labeled “VC” (Vapor Chamber), the heat sink covers the display
cable: .
Removing and installing Field Replaceable Units (FRUs) 63
