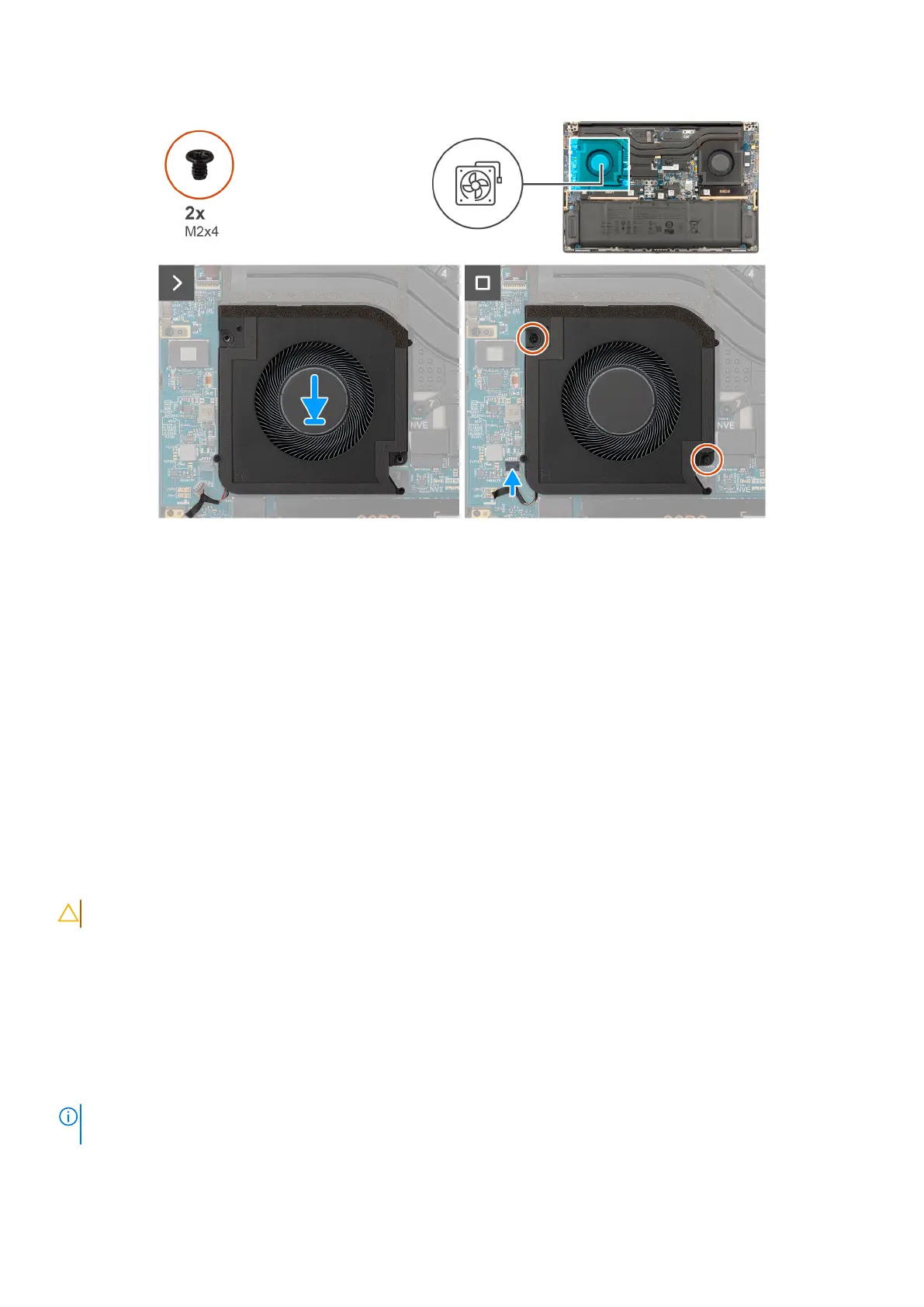

Figure 25. Installing the graphics-card fan
Steps
1. Align and place the graphics-card fan onto the palm-rest assembly.
2. Replace the two screws (M2x4) to secure the graphics-card fan to the palm-rest assembly.
3. Connect the graphics-card fan cable to the connector on the system board.
Next steps
1. Install the base cover.
2. Install the SD card.
3. Follow the procedure in After working inside your computer.
Heat sink
Removing the heat sink for integrated graphics
CAUTION: The information in this removal section is intended for authorized service technicians only.
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the SD card.
3. Remove the base cover.
About this task
The following image indicates the location of the heat sink and provides a visual representation of the removal procedure.
NOTE:
For computers that are shipped with a heat sink labeled “VC” (Vapor Chamber), the heat sink must be removed
before the removal of the display assembly or system board.
Removing and installing Field Replaceable Units (FRUs) 61
