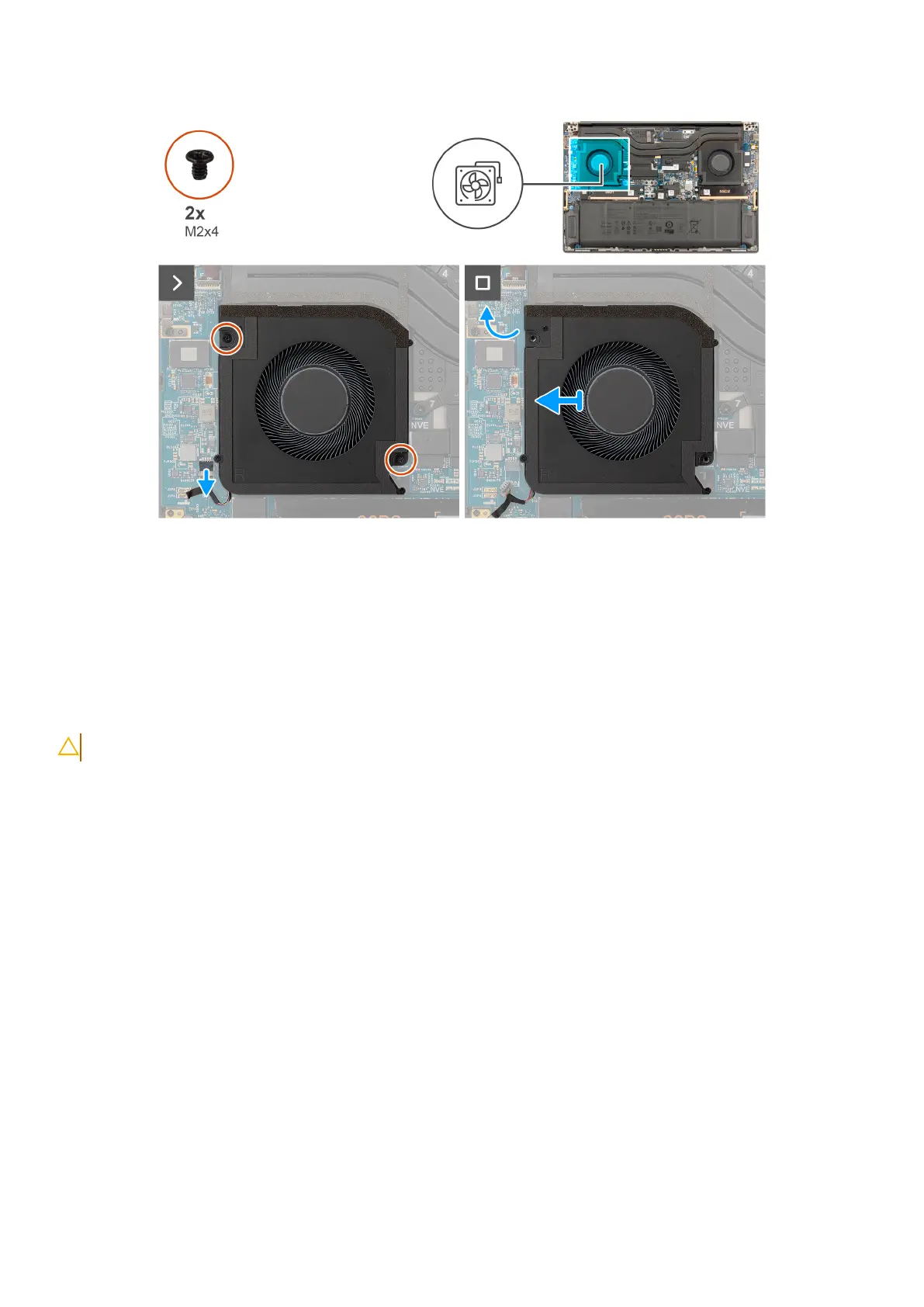

Figure 24. Removing the graphics-card fan
Steps
1. Disconnect the graphics-card fan cable from the connector on the system board.
2. Remove the two screws (M2x4) that secure the graphics-card fan to the palm-rest assembly.
3. Lift the graphics-card fan from the outside and remove it from the palm-rest assembly.
Installing the graphics-card fan
CAUTION: The information in this installation section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the graphics-card fan and provides a visual representation of the installation
procedure.
