Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the processor fan and provides a visual representation of the installation
procedure.

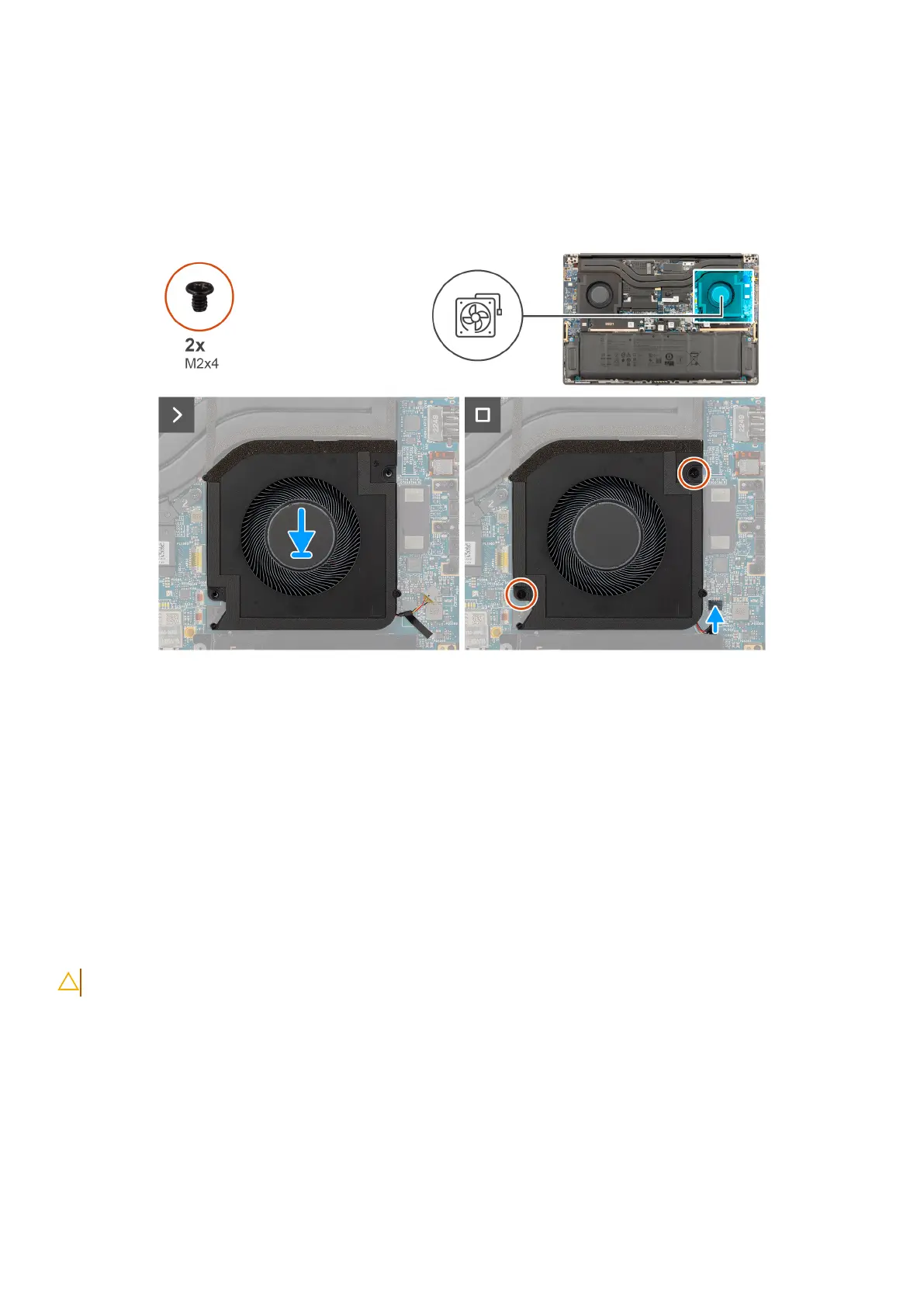

Figure 23. Installing the processor fan
Steps
1. Align and place the processor fan onto the palm-rest assembly.
2. Replace the two screws (M2x4) to secure the processor fan to the palm-rest assembly.
3. Connect the processor-fan cable to the connector on the system board.
Next steps
1. Install the base cover.
2. Install the SD card.
3. Follow the procedure in After working inside your computer.
Removing the graphics-card fan
CAUTION: The information in this removal section is intended for authorized service technicians only.
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the SD card.
3. Remove the base cover.
About this task
The following images indicate the location of the graphics-card fan and provide a visual representation of the removal
procedure.
Removing and installing Field Replaceable Units (FRUs)
59
