Next steps
1. Install the base cover.
2. Install the SD card.
3. Follow the procedure in After working inside your computer.
System fan
Removing the processor fan
CAUTION: The information in this removal section is intended for authorized service technicians only.
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the SD card.
3. Remove the base cover.
About this task

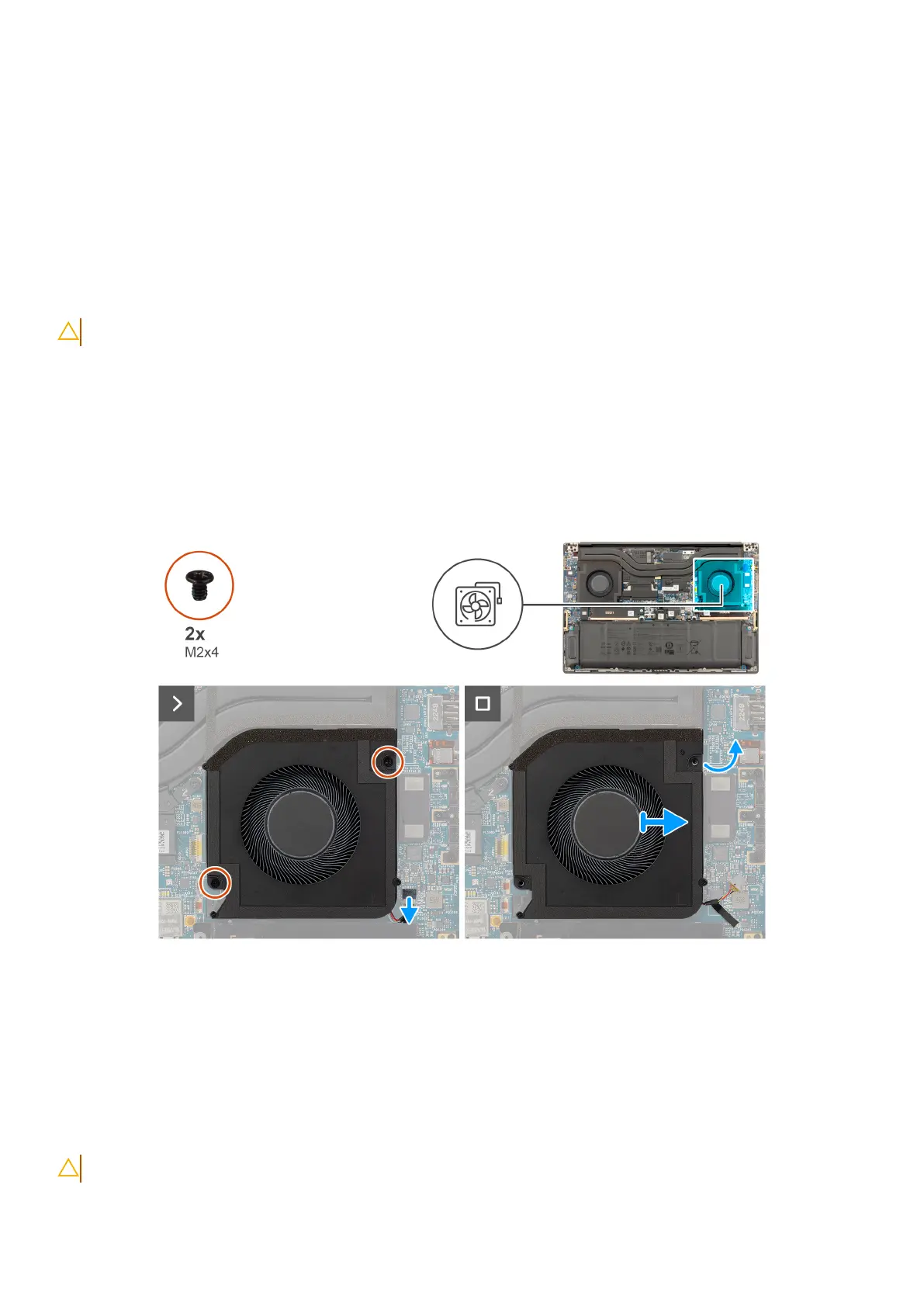

The following images indicate the location of the processor fan and provide a visual representation of the removal procedure.
Figure 22. Removing the processor fan
Steps
1. Disconnect the processor-fan cable from the connector on the system board.
2. Remove the two screws (M2x4) that secure the processor fan to the palm-rest assembly.
3. Lift the processor fan from the outside and remove it from the palm-rest assembly.
Installing the processor fan
CAUTION: The information in this installation section is intended for authorized service technicians only.
58 Removing and installing Field Replaceable Units (FRUs)
