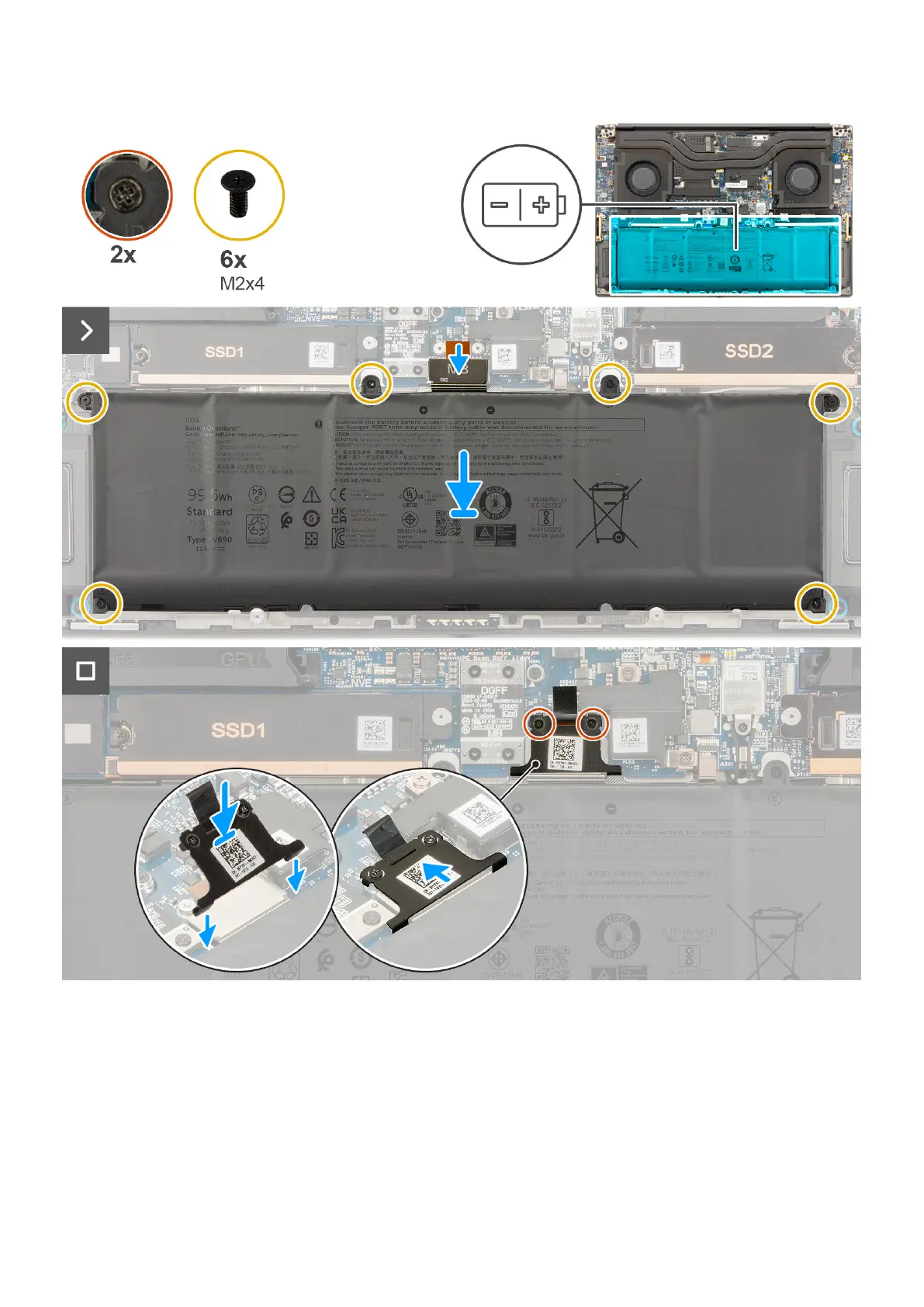

Figure 21. Installing the battery
Steps
1. Align and place the battery into the slot on the computer.
2. Replace the six screws (M2x4) to secure the battery to the palm-rest assembly.
3. Align the battery-FPC bracket and slide it upwards to secure to the system board.
4. Tighten the two captive screws to secure the battery-FPC bracket to the system board.
Removing and installing Field Replaceable Units (FRUs)
57
