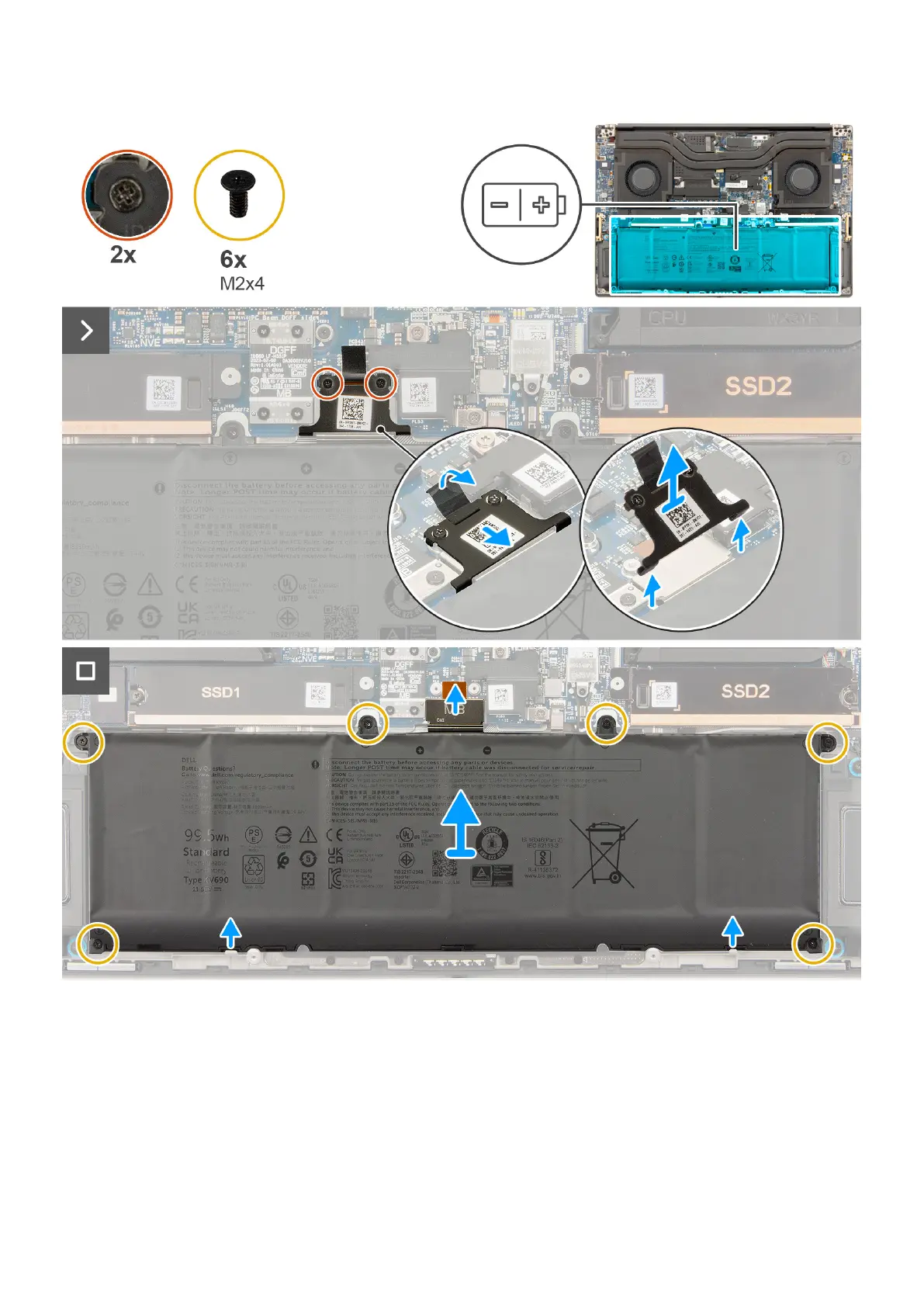

Figure 20. Removing the battery
Steps
1. Loosen the two captive screws that secure the battery-FPC bracket to the system board.
2. Slide the battery-FPC bracket towards the battery and lift it away from the computer.
3. Remove the six screws (M2x4) that secure the battery to the palm-rest assembly.
4. Lift the battery away from the computer.
Removing and installing Field Replaceable Units (FRUs)
55
