NOTE: The following procedure is applicable for models that are shipped with an M.2 2230 SSD in the SSD1 and/or SSD2
slot.

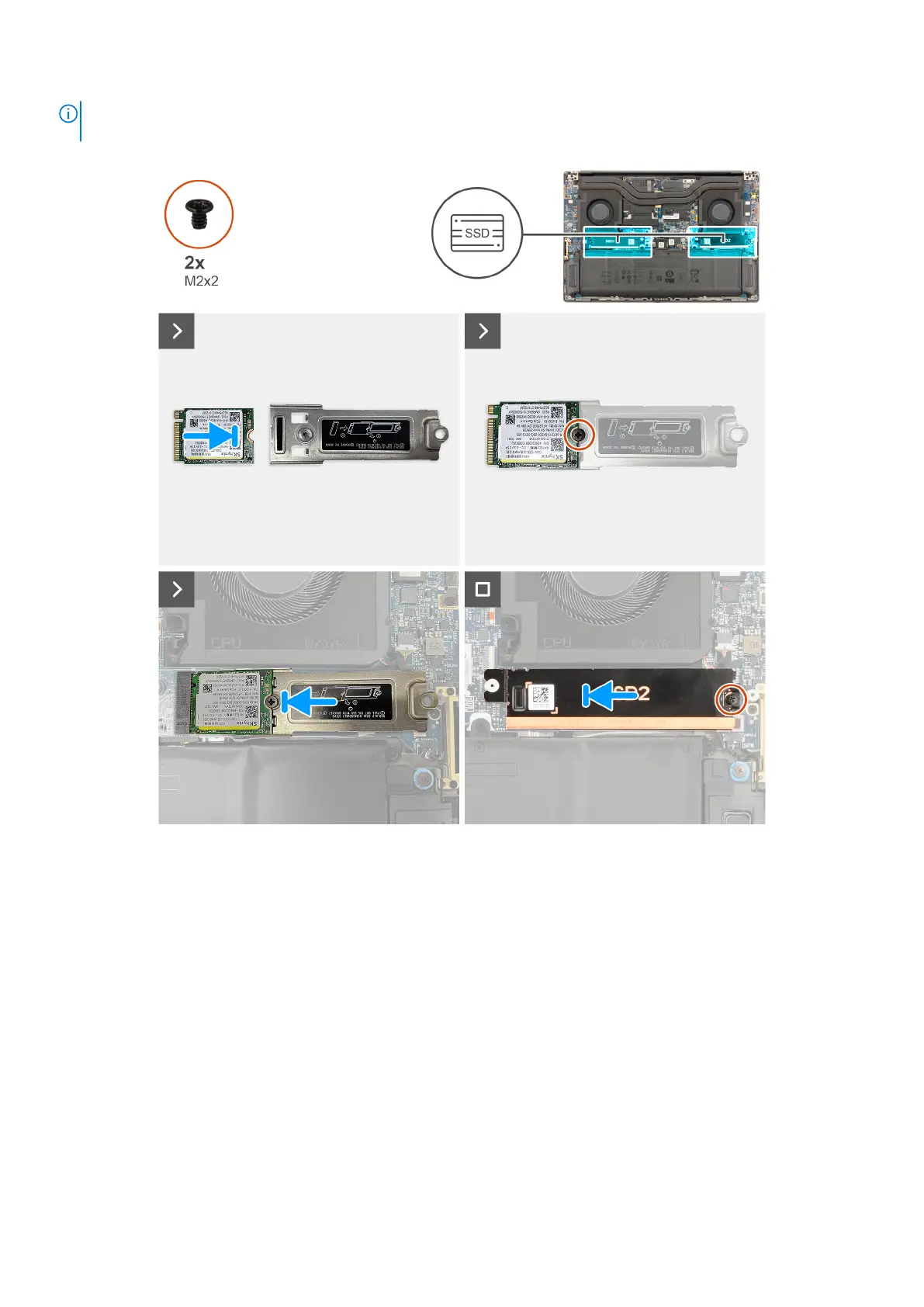

Figure 17. Installing the M.2 2230 SSD
Steps
1. Align the screw hole on the M.2 2230 SSD with the screw hole on the SSD bracket.
2. Replace the single screw (M2x2) to secure the M.2 2230 SSD to the SSD bracket.
3. Align the notch on the SSD with the tab on the M.2 card connector.
4. Slide the M.2 2230 SSD with the SSD bracket into the M.2 card connector on the system board.
5. Align and place the SSD thermal plate in place.
6. Replace the single screw (M2x2) to secure the SSD thermal plate to the system board.
Next steps
1. Install the base cover.
2. Install the SD card.
3. Follow the procedure in After working inside your computer.
Removing and installing Field Replaceable Units (FRUs)
51
