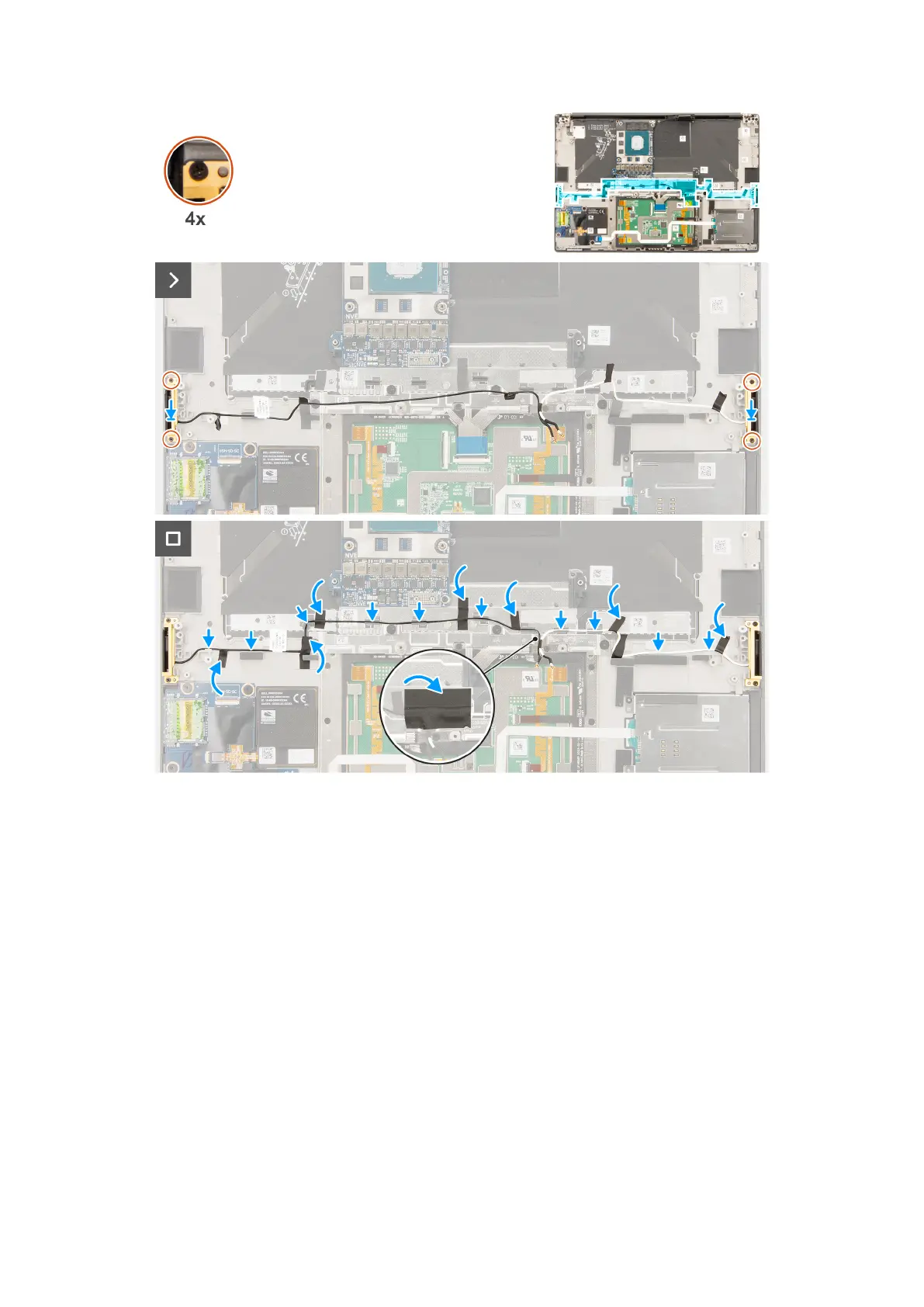

Figure 78. Installing the WLAN-antenna module
Steps
1. Align and place the WLAN antenna in the slot on the computer.
2. Route the WLAN-antenna cables through the routing guides on the palm-rest assembly.
3. Replace the four captive screws to secure the WLAN-antenna cables to the palm-rest assembly.
4. Adhere the tape to secure the WLAN-antenna cables to the palm-rest assembly.
5. Align and place the left and right speakers into the slot on the chassis.
Next steps
1. Install the system board.
2. Install the speakers.
3. Install the heat sink.
4. Install the graphics-card fan.
5. Install the processor fan.
6. Install the battery.
7. Install the M.2 2230 solid state drive or M.2 2280 solid state drive.
8. Install the base cover.
9. Install the SD card.
10. Follow the procedure in After working inside your computer.
