4. Lift the left and right speakers off the computer.
Installing the speakers
CAUTION: The information in this installation section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

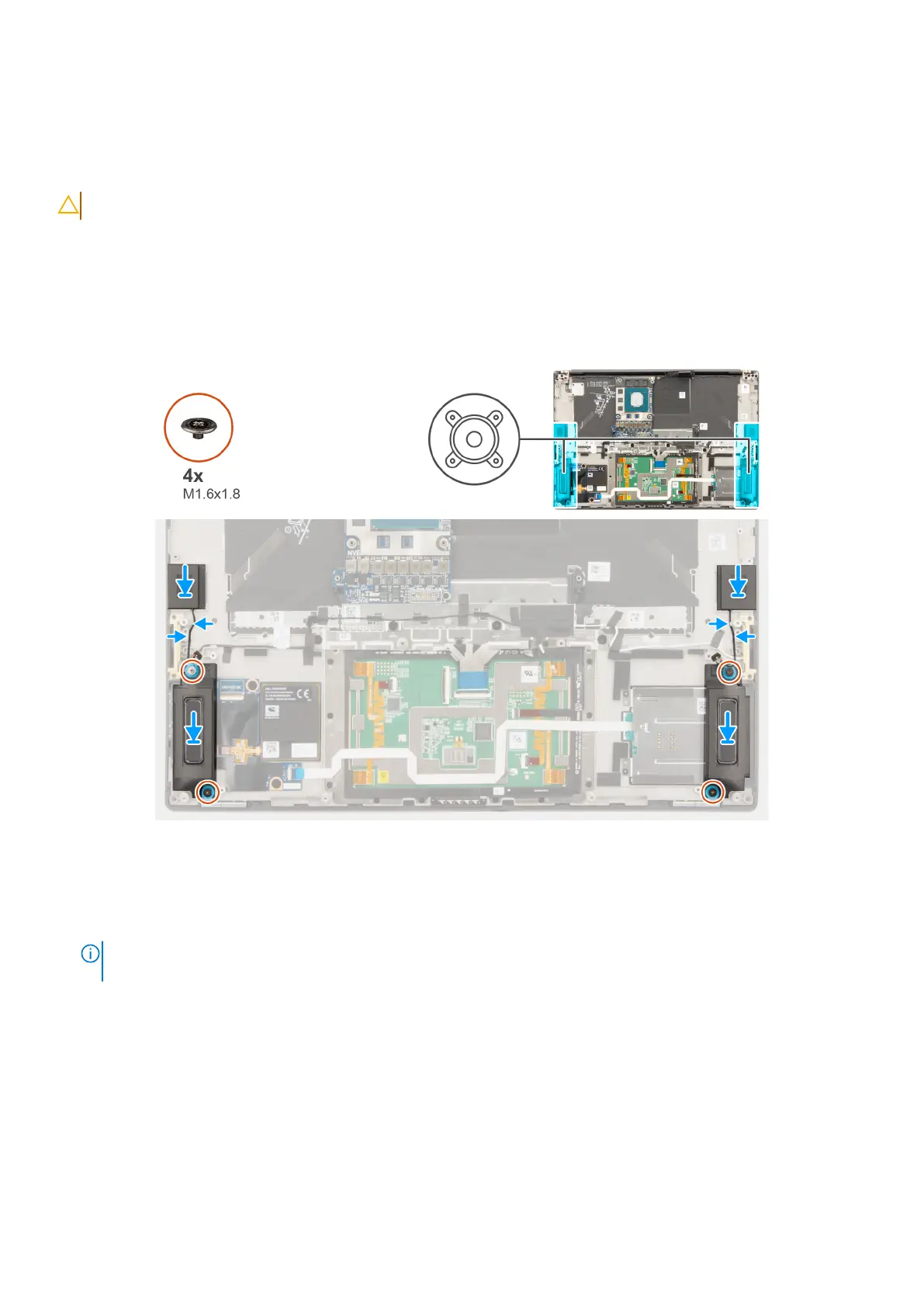

The following image indicates the location of the speakers and provides a visual representation of the installation procedure.
Figure 69. Installing the speakers
Steps
1. Connect the left and right tweeter speaker cables through the routing guides on the system board.
2. Replace the four screws (M1.6x1.8) to secure the left and right speakers in place.
NOTE:
Ensure that the four rubber grommets are seated into the slot and installed on the speakers properly. Ensure the
wires of the speakers and wireless antennas are placed in their routing guides accordingly.
Removing and installing Field Replaceable Units (FRUs) 103
