10 | About the PowerConnect W-3000 Series Controllers Dell PowerConnect W-3000 Series Controller | Installation Guide

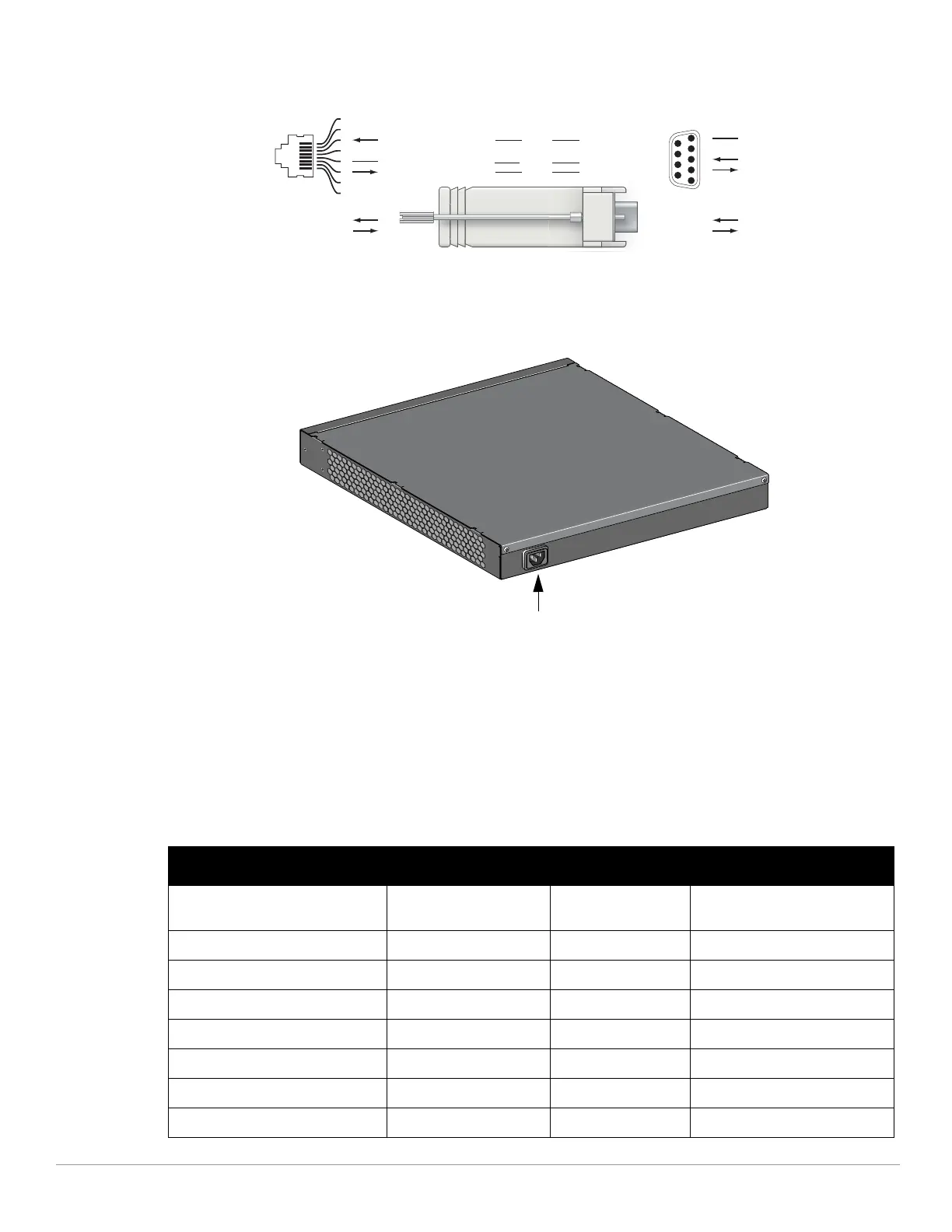

Figure 4 RJ-45 (female) to DB9 (male) Modular Adaptor Conversion
Figure 5 represents the W-3200 rear view.
Figure 5 W-3200 Rear View
AC Power Socket
The W-3000 Series Controllers supports integrated AC powering and the AC power socket on the rear of the unit
is for use with an AC power cord (country-specific). Refer to “Power Management Specifications” on page17 for
power specification details.
LED Status Indicators
Table 2 W-3000 Series Controllers LED Status Indicators
LED Function Indicator Status
POWER Input Power Status
Indicator
On (Solid Green) Power on
Off No power
STATUS Module Status Indicator On (Solid Green) Device is operational
On (Solid Red) Device failed
On (Solid Amber) Device is loading software
Off No power
LNK 1000Base-X Ports Link Status Indicator On (Solid Green) Link has been established
Off No link on port
3
4
5
2
5
63
RJ-45 DB-9
Internal
Connections
TxD
GND
RxD
1
2
3
4
5
6
7
8
TxD
GND
RxD
RJ-45 Female
Pin-Out
Direction
Input
Output
DB-9 Male
Pin-Out
TxD
RxD
Ground
5
4
3
2
1
9
8
7
6
Direction
Input
Output
AC Power Socket
