Installing the 3-cell battery
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

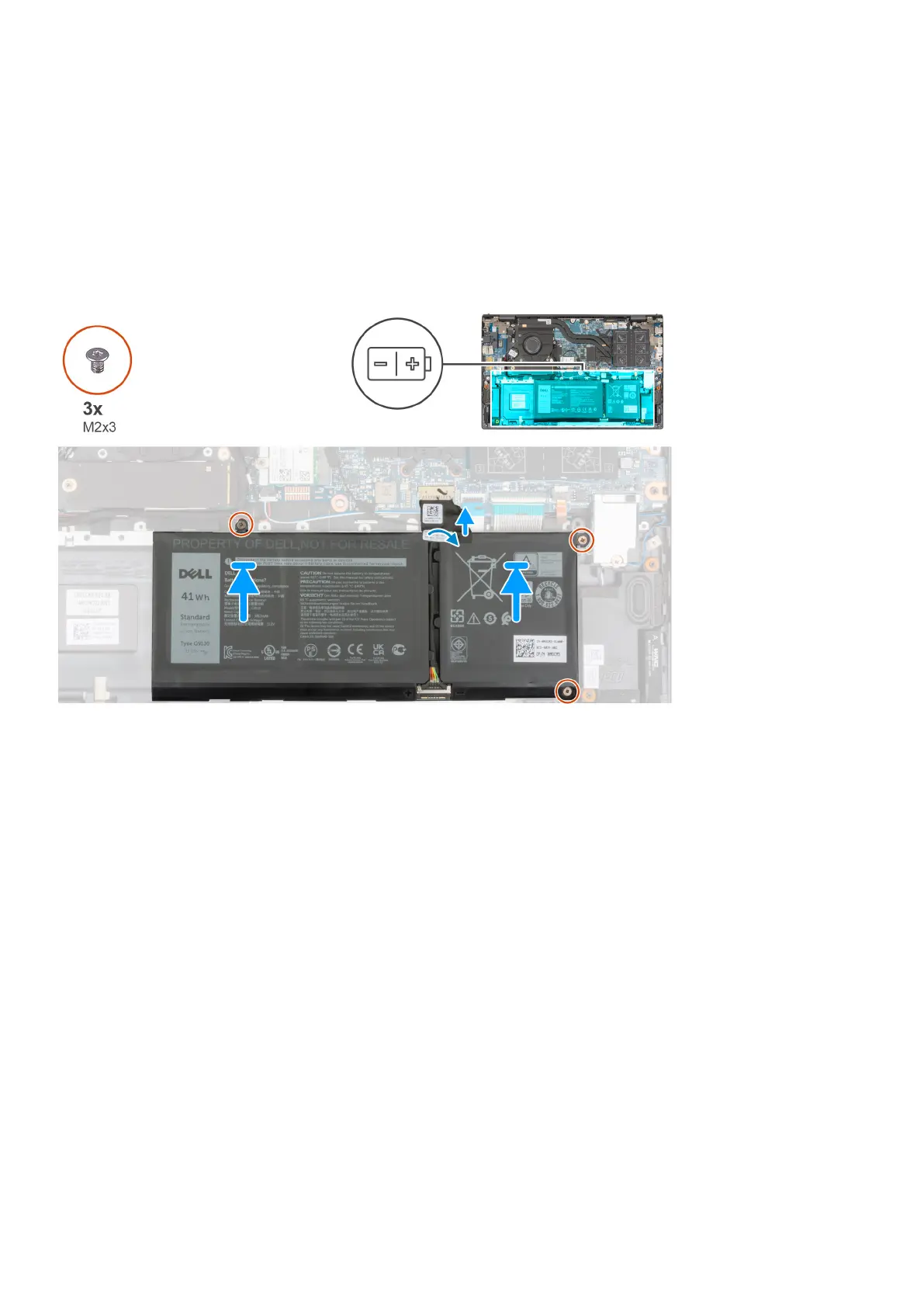

The following image indicates the location of the 3-cell (41 Wh) battery and provides a visual representation of the installation
procedure.
Steps
1. Using the alignment posts, place the 3-cell battery on the palm-rest and keyboard assembly.
2. Align the screw holes on the 3-cell battery with the screw holes on the palm-rest and keyboard assembly.
3. Replace the three (M2x3) screws that secure the 3-cell battery to the palm-rest and keyboard assembly.
4. Connect the battery cable to the system board.
5. Adhere the tape that secures the battery cable to the system board.
Next steps
1. Install the base cover.
2. Follow the procedure in After working on your computer.
Removing the 4-cell battery
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task
The following image indicates the location of the 4-cell (54 Wh) battery and provides a visual representation of the removal
procedure.
18
Removing and installing components
