Steps
1. Connect the battery cable to the system board.
2. Adhere the tape to secure the battery cable.

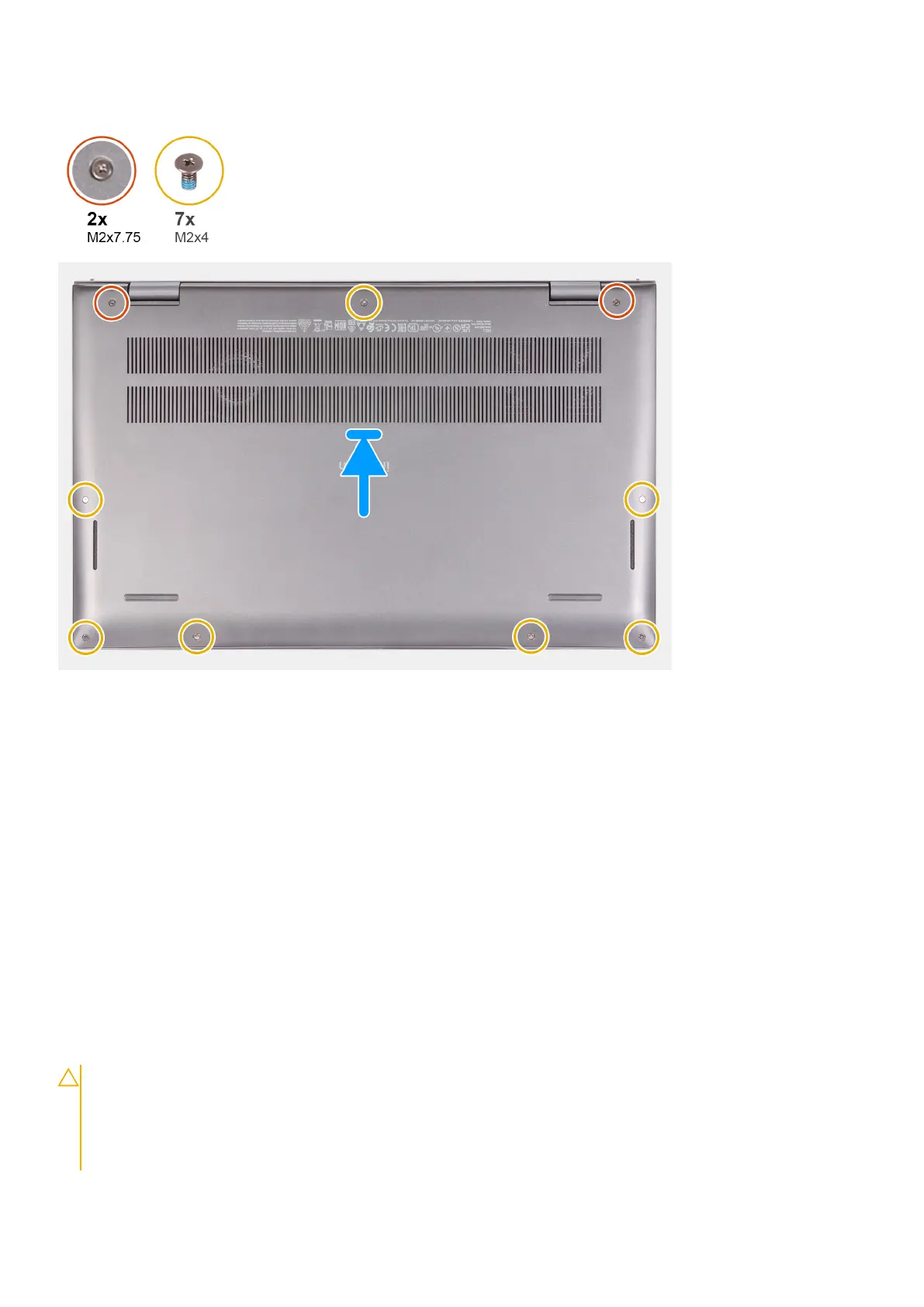

3. Place the base cover on top of the palm-rest and keyboard assembly.
4. Align the screw holes on the base cover with the screw holes on the palm-rest and keyboard assembly, and then snap the
base cover into place.
5. Tighten the two (M2x7.75) captive screws that secure the base cover to the palm-rest and keyboard assembly.
6. Replace the seven (M2x4) screws that secure the base cover to the palm-rest and keyboard assembly.
Next steps
1. Follow the procedure in After working inside your computer.
Battery
Lithium-ion battery precautions
CAUTION:
● Exercise caution when handling Lithium-ion batteries.
● Discharge the battery completely before removing it. Disconnect the AC power adapter from the system and
operate the computer solely on battery power—the battery is fully discharged when the computer no longer
turns on when the power button is pressed.
16 Removing and installing components
