Removing and installing components
NOTE: The images in this document may differ from your computer depending on the configuration you ordered.
Recommended tools
The procedures in this document may require the following tools:
ā Phillips screwdriver #0
ā Plastic scribe
Screw list
NOTE: When removing screws from a component, it is recommended to note the screw type, the quantity of screws, and
then place them in a screw storage box. This is to ensure that the correct number of screws and correct screw type is
restored when the component is replaced.
NOTE: Some computers have magnetic surfaces. Ensure that the screws are not left attached to such surfaces when
replacing a component.
NOTE: Screw color may vary with the configuration ordered.

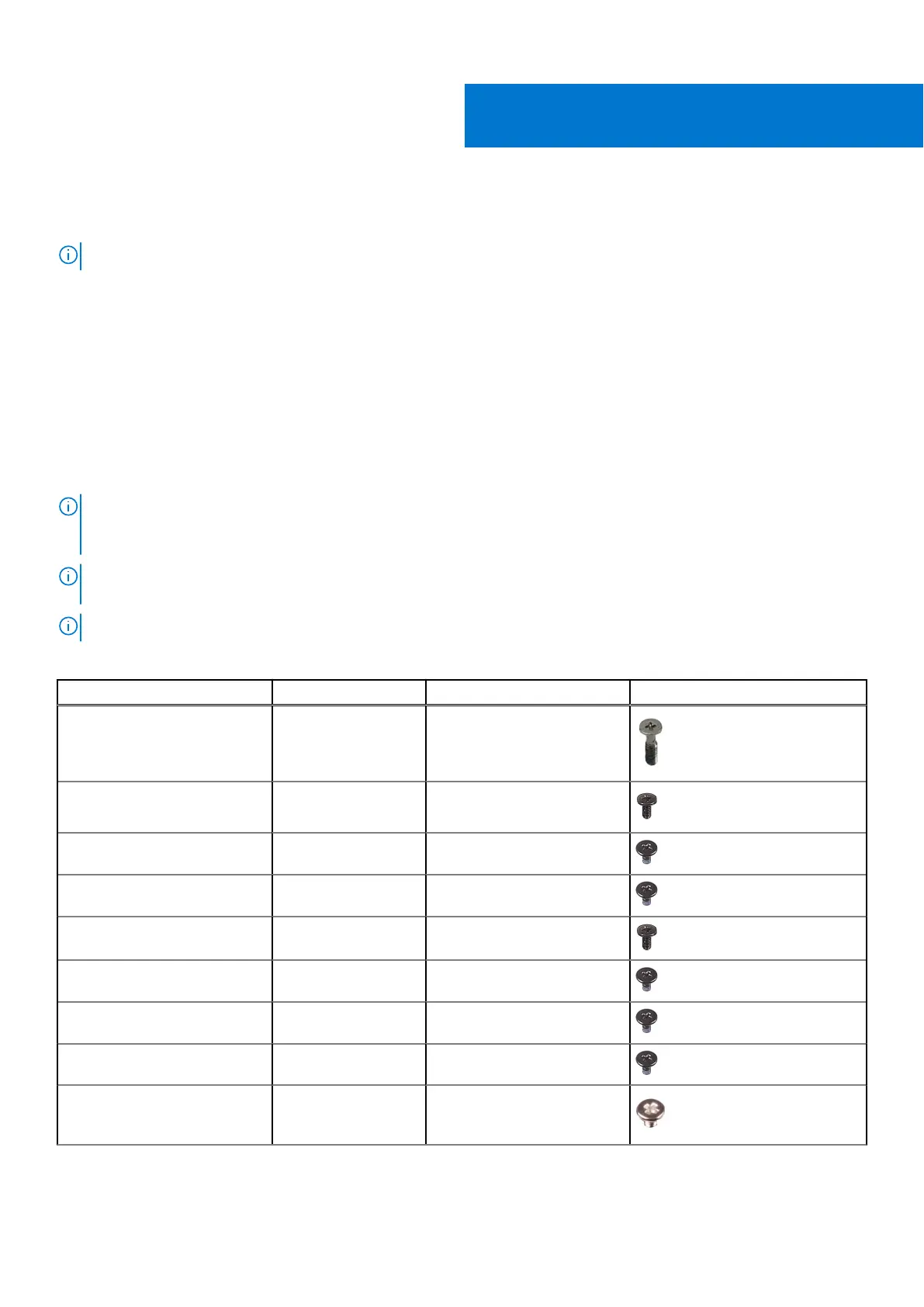

Table 1. Screw list
Component Screw type Quantity Screw image
Base cover
M2x7.5 - captive
screws
2
Base cover
M2x4 7
3-cell battery
M2x3 3
4-cell battery
M2x3
4
Wireless card M2x4 1
Solid-state drive - Slot 1 M2x3 1
Solid-state drive - Slot 2 M2x3 1
Fan M2x3 2
System board M2x2 3
2
10 Removing and installing components
