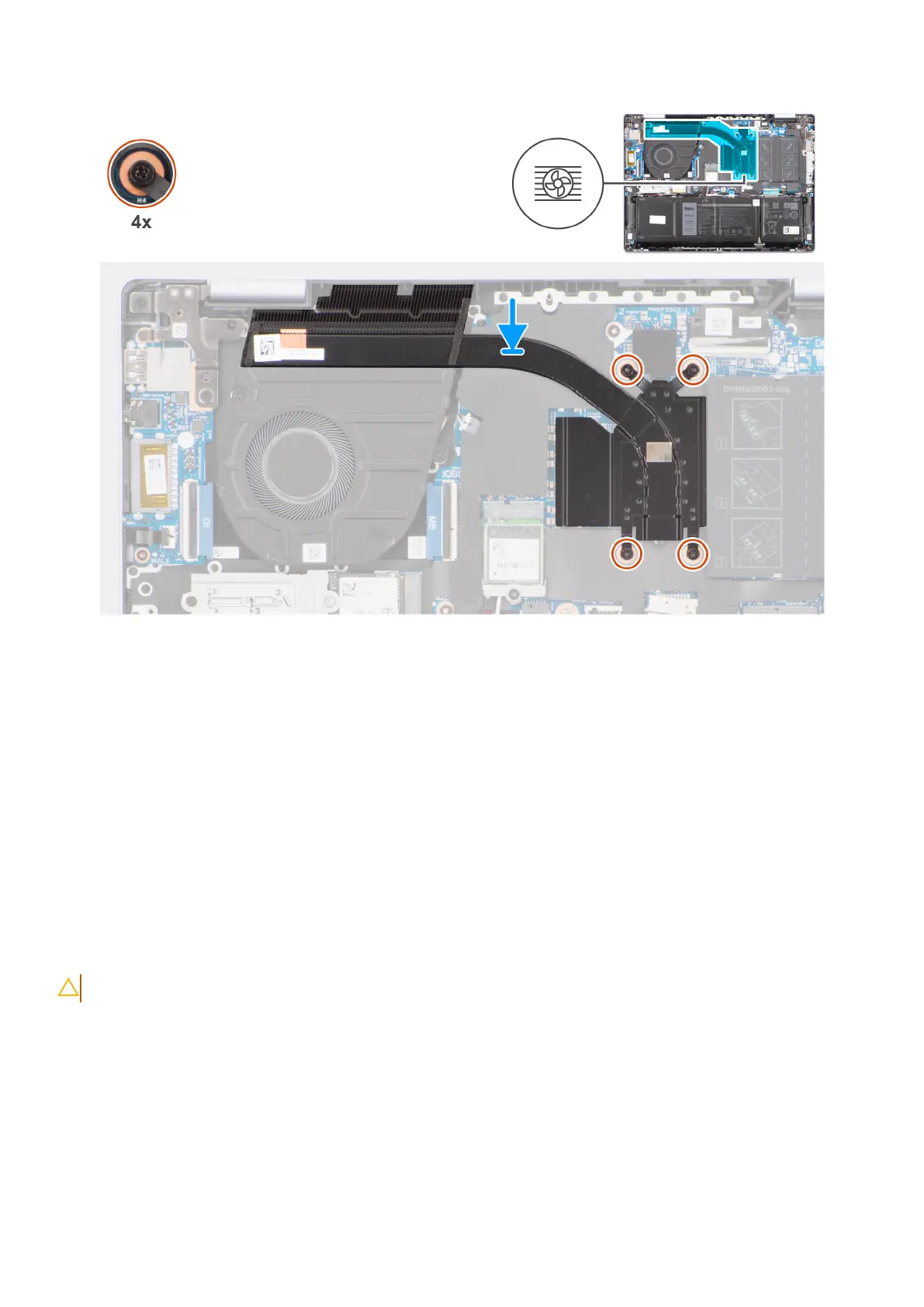

Figure 32. Installing the heat sink
Steps
1. Place the heat sink on the system board.
2. Align the screw holes on the heat sink with the screw holes on the system board.
3. In sequential order (1->2->3->4) tighten the four captive screws that secure the heat sink to the system board.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
I/O board
Removing the I/O board
CAUTION: The information in this section is intended for authorized service technicians only.
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task
The following image indicates the location of the I/O board and provides a visual representation of the removal procedure.
54
Removing and installing Field Replaceable Units (FRUs)
