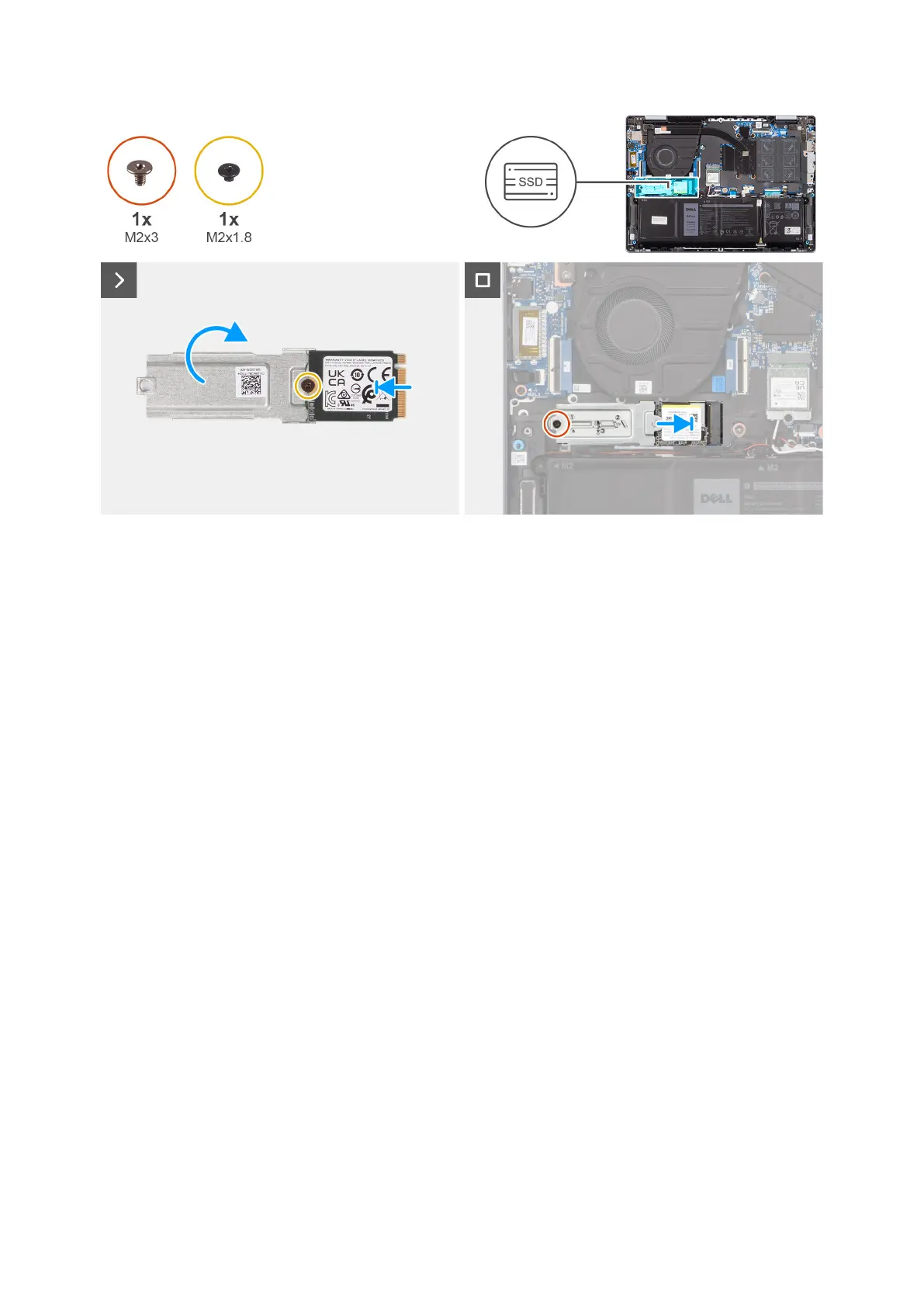

Figure 22. Installing the solid-state drive
Steps
1. Place and align the M.2 2230 solid-state drive on the M.2 2230 solid-state drive mounting bracket.
2. Replace the screw (M2x1.8) that secures the M.2 2230 solid-state drive to the M.2 2230 solid-state drive mounting bracket.
3. Flip over the M.2 2230 solid-state drive assembly.
4. Align the notch on the M.2 2230 solid-state drive with the tab on the M.2 solid-state drive slot on the system board.
5. Slide and place the M.2 2230 solid-state drive in the M.2 solid-state drive slot on the system board.
6. Replace the screw (M2x3) that secures the M.2 2230 solid-state drive assembly to the system board.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
Wireless card
Removing the wireless card
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task
The following image indicates the location of the wireless card and provides a visual representation of the removal procedure.
Removing and installing Customer Replaceable Units (CRUs)
43
