Steps
1 Remove the two screws (M2.5x5) that secure the base cover to the palm-rest assembly.
2 Loosen the six captive screws.
3 Using a plastic scribe, pry the base cover from the bottom-left corner and continue to work on the sides to open the base
cover.
4 Lift the base cover o the palm-rest assembly.

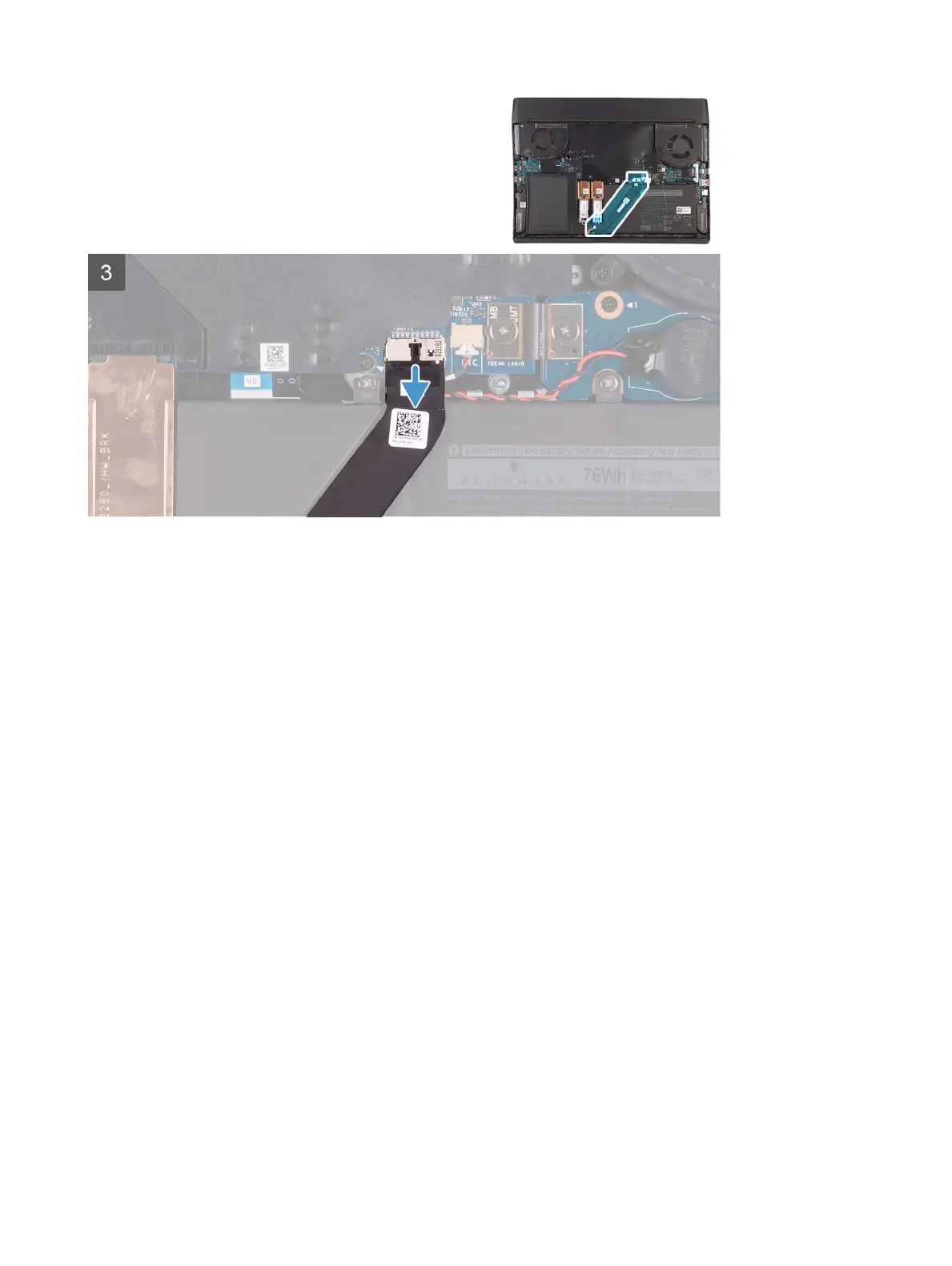

5 Disconnect the battery from the system board.
6 Press and hold the power button for 5 seconds to ground the computer and drain the ea power.
Installing the base cover
Prerequisite
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the base cover and provides a visual representation of the installation procedure.
11
