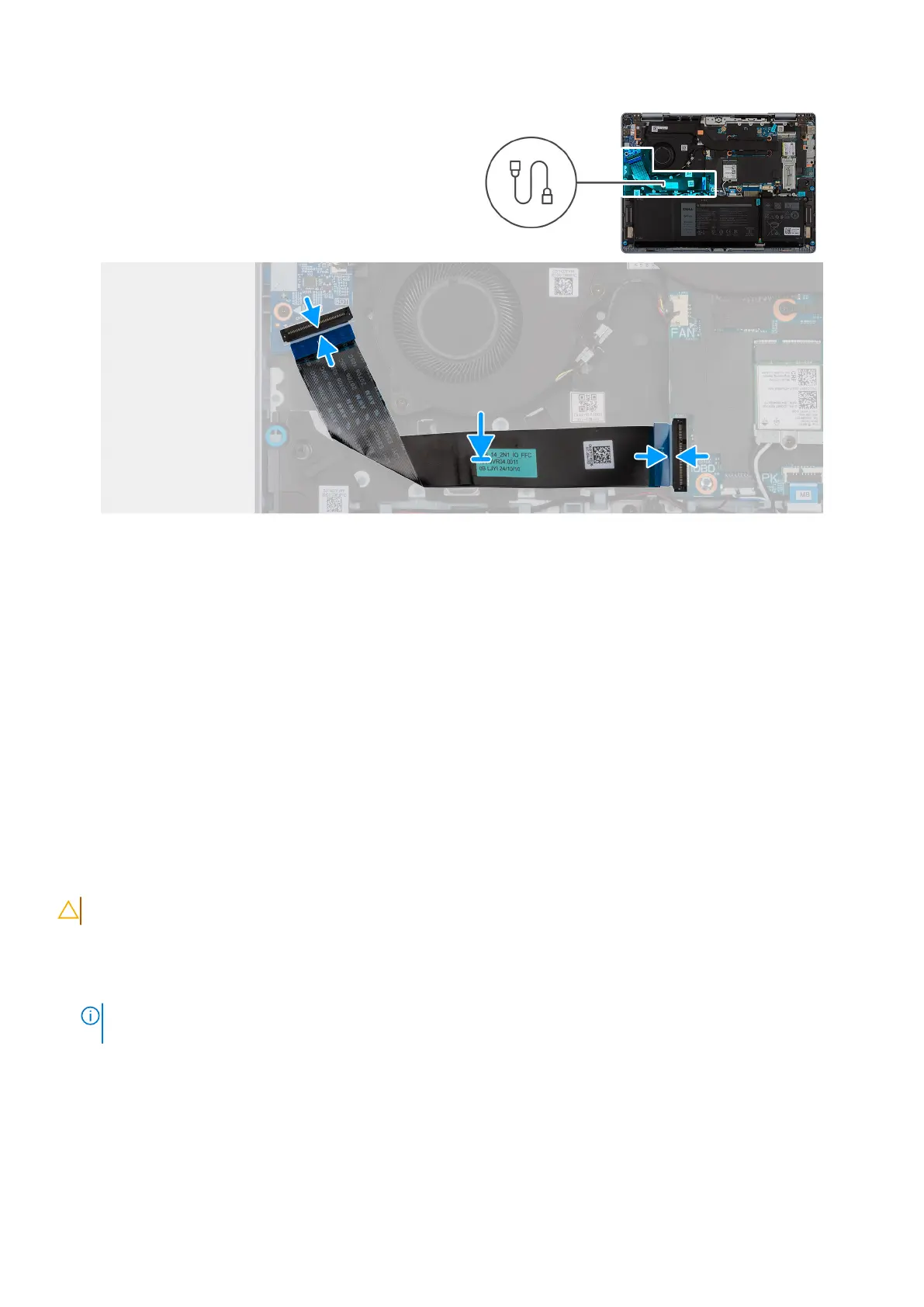

Figure 31. Installing the I/O-board cable
Steps
1. Place the I/O-board cable on the palm-rest and keyboard assembly.
2. Connect the I/O-board cable to its connector (IOBD) on the system board and close the latch.
3. Connect the I/O-board cable to its connector on the I/O board and close the latch.
4. Adhere the I/O-board cable to the palm-rest and keyboard assembly.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
I/O board
Removing the I/O board
CAUTION: The information in this section is intended for authorized service technicians only.
Prerequisites
1. Follow the procedure in Before working inside your computer.
NOTE:
Ensure that your computer is in Service Mode. For more information, see step 7 in Before working inside your
computer.
2. Remove the base cover.
About this task
The following image indicates the location of the I/O board and provides a visual representation of the removal procedure.
Removing and installing Field Replaceable Units (FRUs)
55
