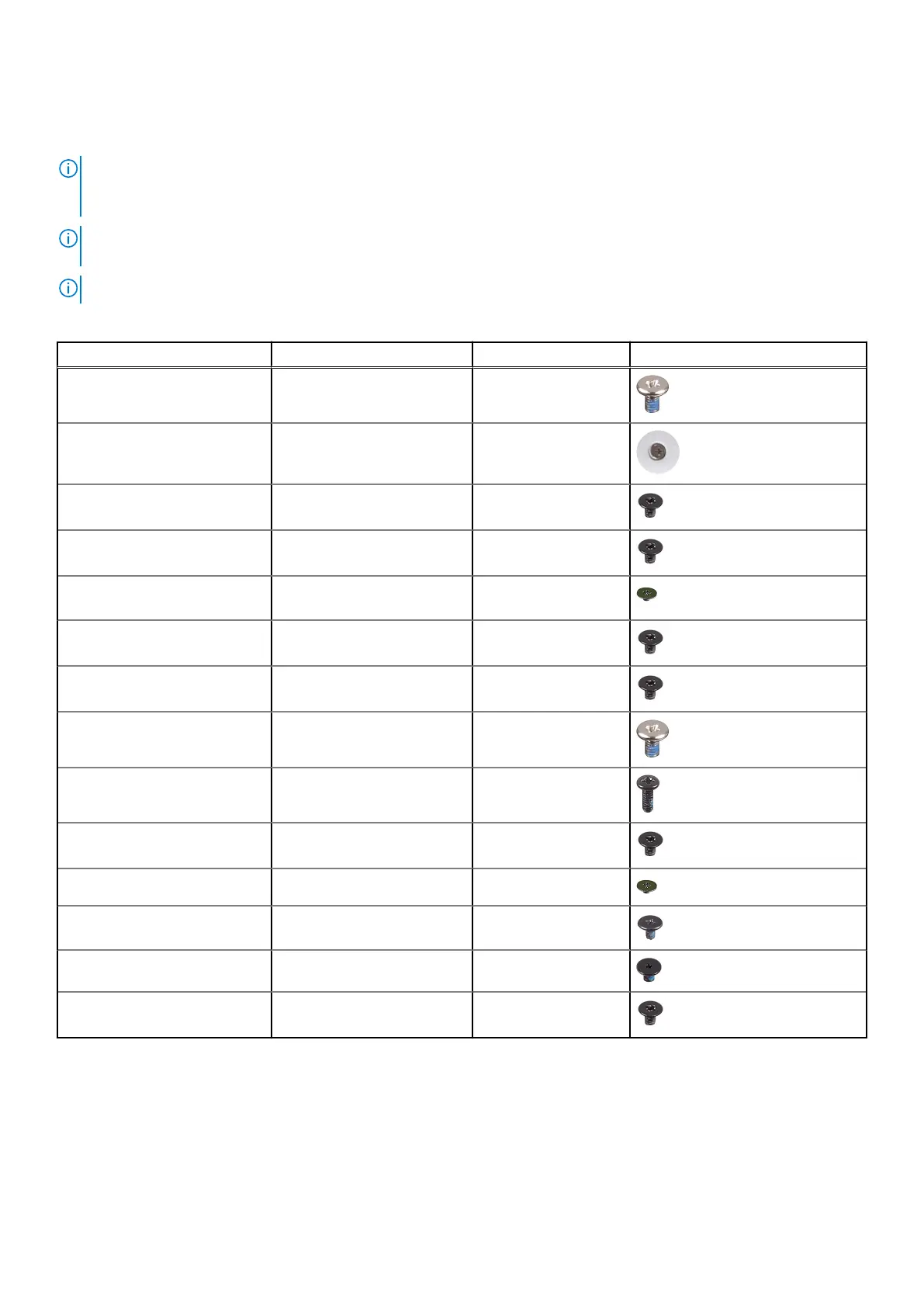

Screw list
NOTE: When removing screws from a component, it is recommended to note the screw type and the quantity of screws,
and then place them in a screw storage box. This is to ensure that the correct number of screws and correct screw type is
restored when the component is replaced.
NOTE: Some computers have magnetic surfaces. Ensure that the screws are not left attached to such surfaces when
replacing a component.
NOTE: Screw color may vary depending on the configuration ordered.
Table 24. Screw listî
Component Screw type Quantity Screw image
Base cover M2x4 5
Base cover Captive 2
Battery M2x3 4
M.2 2230 mounting bracket M2x3 1
M.2 2230 solid state drive +
M.2 mounting bracket
M2x1.8 1
Fan M2x3 2
Wireless-card bracket M2x3 1
Type-C port bracket M2x4 2
Display assembly M2.5x4 5
I/O board M2x3 1
System board M2x1.8 2
Touchpad M2x2.5 2
Touchpad M1.6x1.5 6
Power button M2x3 1
Major components of Dell 14 Plus DB14250
The following image shows the major components of Dell 14 Plus DB14250.
