30 Part Number: 9291458 11/17
Operation Section 3
8100-EF(N) Series Operation
Note
The cold pan is not intended to be used with ice.
There is a switch on the compressor housing front to turn
the 8100-EF units on and off. The unit must be turned off
when not in use or overnight for defrosting and cleaning.
8100-EF Series LiquiTec® Eutetic fluid cold pans are adjusted
at the factory to provide proper operation without any
further adjustments.
The temperature control is located on the condensing
housing.

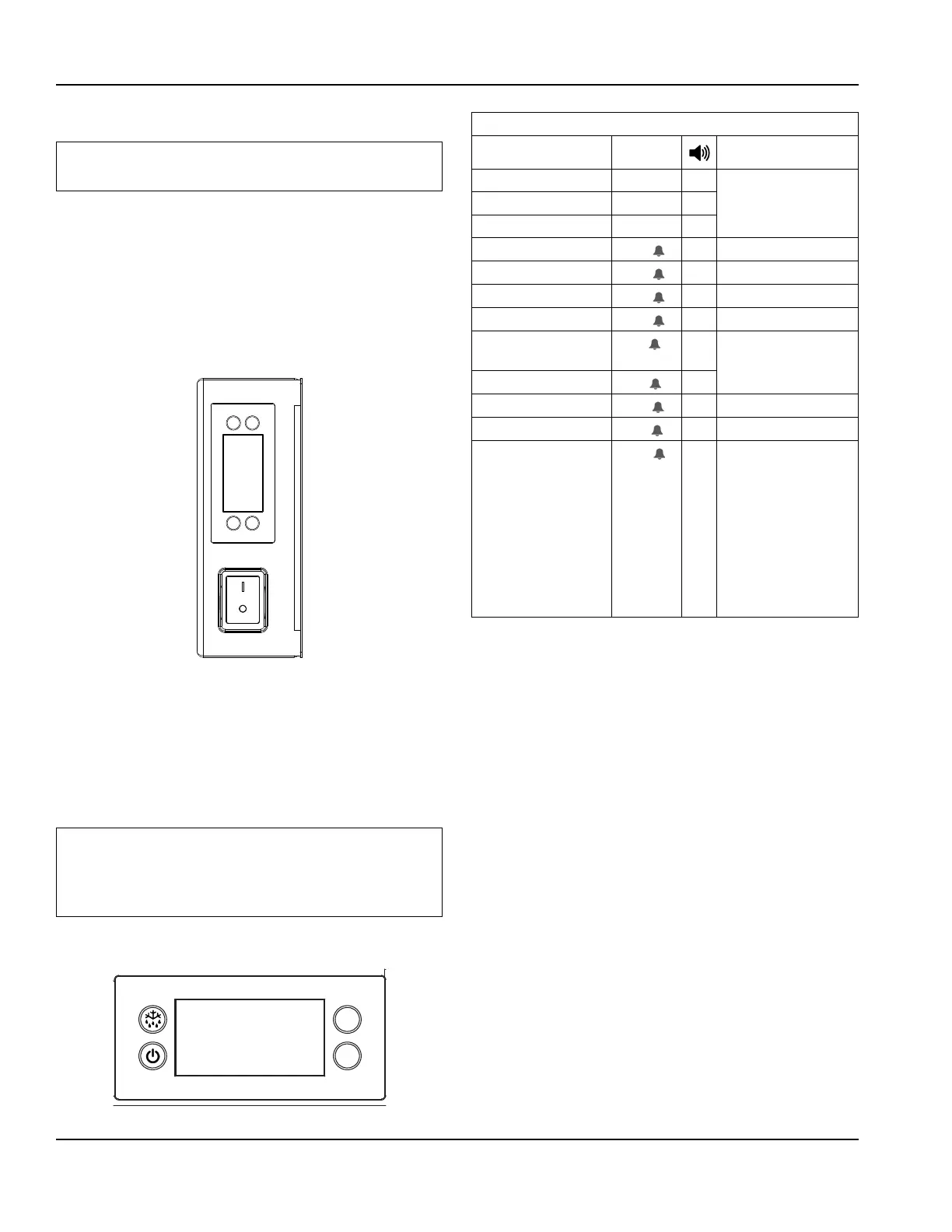

Power Switch & Temperature Control
1. At initial start-up or anytime power is disconnected,
then reconnected to the unit, the control will go into
normal cooling mode.
2. The temperature control will cycle the compressor and
condenser fan motor to maintain proper temperature.
Notice
Temperature displayed is for refrigeration set point
purposes only. Display does not reflect air or product
temps in unit.
TEMPERATURE CONTROL & DISPLAY
V
V
Operation / Indication
Status Displayed
Comments
Normal (°C) Temp. [°C] Unit depends on setting
(parameters in control)
Normal (°F) Temp. [°F]
Show set-point Temp.
Sensor 1 defect
E01
X Air sensor
Sensor 2 defect
E02
X Coil sensor
Sensor 3 defect
E03
X Open
Sensor 4 defect
E04
X Open
High temperature
alarm
Hi
X Automatically switching
at 2 sec rate
Low temperature alarm
Lo
X
Line voltage too high
uHi
X
Line voltage too low
uLi
X
Control calls for cooling
for more than 24 hours
straight
LEA
X Time includes defrost.
Error will go away if the
control cycles off the
compressor or if the
power is shut off. If error
is on a cold pan it could
be related to a high
ambient temperature or
not shutting the rail off
nightly.
Press upper or lower right button.
• Display show actual set-point (blinking).
• If buttons untouched for 3 seconds returns to
normal.
• Increase set-point by pressing upper button. Max value
depends on parameters in control.
• Decrease set-point by pressing lower button. Min value
depends on parameters in control.
• If buttons untouched for 3 seconds returns to
normal and stores new set-point.
Press lower left button for 5 seconds.
• Unit goes into stand-by mode.
• The display will read Off, then a period.
• Press the lower left button again for 5 seconds.
• The display will read On.
• The unit will then start up in normal cooling
mode.
Temperature Alarm
The alarm will sound and flash HI or LO 90 minutes after the
unit has reached its alarm temperature point or after any
power interruption if the temperature is above or below the
alarm set points.
