16 Part Number: 9294997A 09/21
Installation Section 2

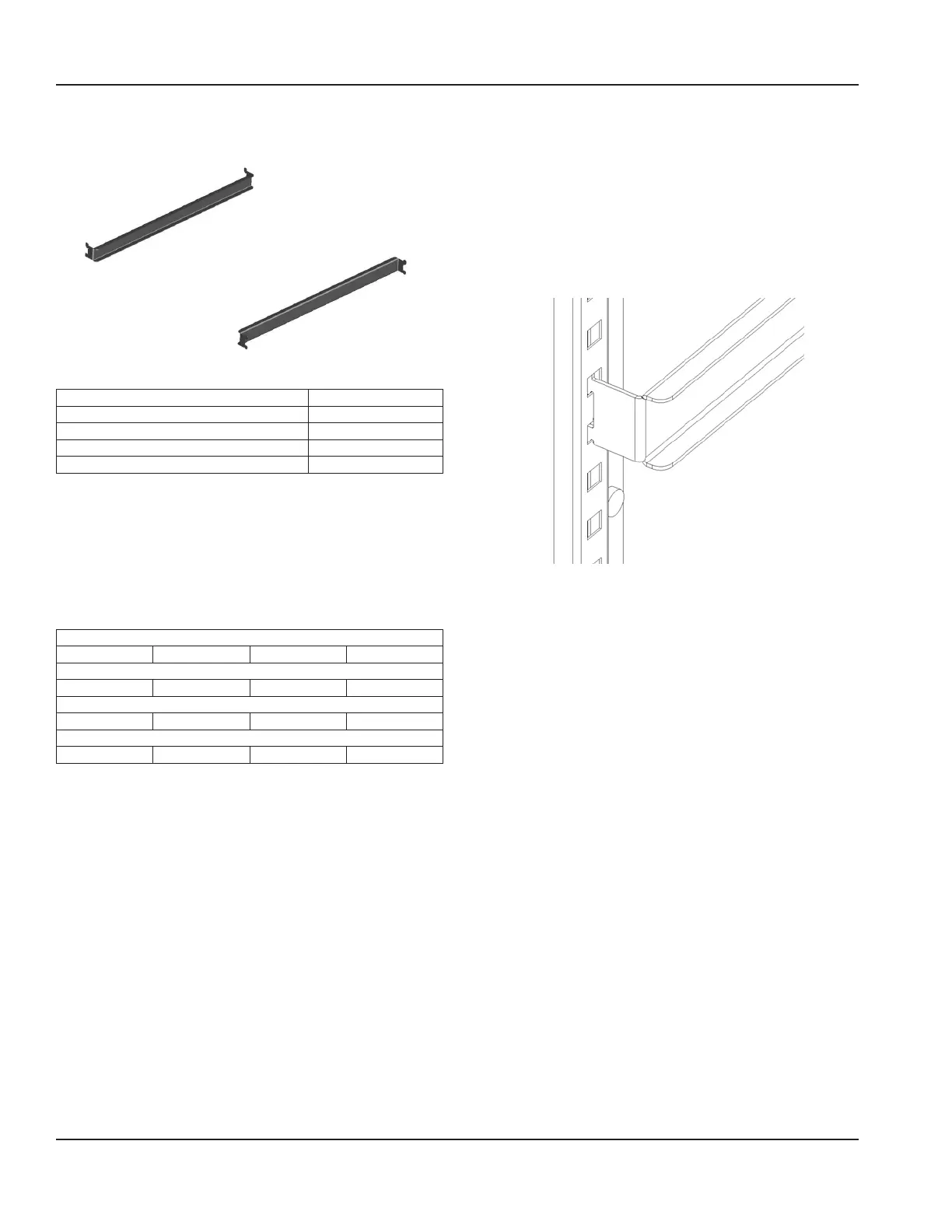

T-3 Tray Slide Installation
Edge Support for 12” x 20” pans
T-3 Tray Slide for 12”x 20” pans
System Name T-3
Slide Style Tray
Support Style Edge
Compatible with 12” x 20” Pans Yes
Compatible with 18” x 26” Pans No
• The T-3 tray slide system is designed to support 12” x 20”
pans by the edge of the pan.
• The slides are shaped as a C channel.
• Each set of tray slides is mounted at the same height
across a door section.
• For each pan, one set of two (2) tray slides is used.
Centerline Spacing
3.0” 4.0” 5.0” 6.0”
Maximum Tray Slides for a Full Section
17 12 9 7
Maximum Tray Slides for a Half Section (Top)
6 5 4 3
Maximum Tray Slides for a Half Section (Bottom)
8 6 5 4
T-3 Installation Instructions
1. For each pan, two (2) tray slides will be used. Each tray
slide must have another tray slide at the same height,
on the opposite side of the door section. Mount the tray
slides onto the pilasters by sliding the tabs down into
the pilaster cutouts. Make sure that all tabs are engaged
securely to each pilaster.
NOTE: A dead-blow hammer is recommended to seat the tab
into the cutouts.
Pilaster
Slider
2. Verify that all tray slides are lined up evenly.
NOTE: An easy check to verify correct installation is to slide a
pan of the appropriate size into each slide. If the pan is held
securely, and is level inside the door section, the installation
has been successful.
