F2000/F17 Series Equipment Stand Service and Installation Manual
For customer service, call (800) 733-8829, (800) 733-8821, Fax (989) 773-3210, www.delfield.com
16
Delfield
™
®
1
2
4
5
6
7
8
9
3
Key Part Number Description
- 000-BN5-0030 Assembly, 1/4 HP Condensing Unit
1 3516457 Blade, Fan, 7.25 DIA., 30Deg
2 2160020 Guard, Fan, 7.25
3 2162717 Motor, Fan, 9W, 115V, CW
4 3526999 Compressor, NF5.5CLX, 115V, 60HZ
5 2194787 Capacitor, Start, 280MFD
6 3516444 Compressor, Relay, Overload, NF5.5CLX
7 3516322 Drier, Filter, (2)Inlet
8 039-231-0030 Pan, Condensate, SM
9 3516454 Coil, Condenser, 1/5, 1/4,1/3HP
Key Part Number Description
- 000-BN5-0054 Assembly, 1/2HP Cond, Low, Hot gas
1 3516554 Blade, Fan, 9.00”
2 2160019 Guard, Fan, Wire
3 2162716 Motor, Fan, 16W, 115V, CW
4 3516324 Cutout, High Pressure
5 3527001 Compressor, SC12CLX.2,115/60HZ
6 3516322 Drier, Filter, (2)Inlet
7 2194789 Capacitor, Start, 240MFD
8 3516441 Relay, Comp, SC12CLX.2
9 3516455 Coil, Condenser, 1/2 HP
- 024-034-0031 Pan, Comp, 18.00
1
2
4
5
6
7
8
9
3
Key Part Number Description
- 000-BN5-0055 Assembly, 3/4 HP Cond, Low, Hot gas
1 2160019 Guard, fan condenser
2162716 Motor, condenser fan 16W, 155V
3516433 Blade, fan 10” CW
2 3527002 Compressor, SC18CLS.2, 115V60hz
3516442 Capacitor, start, run assembly
3 3516322 Filter drier
4 3516456 Coil, condenser, 3/4hp
Key Part Number Description
000-BN5-0031 Assembly, 1/5 Condensing Unit
1 3516457 Blade, Fan, 7.25 DIA.,30 Deg
2 2160020 Guard, Fan, 7.25
3 2162717 Motor, Fan, 9W, 115V, CW
4 3526997 Compressor, 1/5HP, 115/60, R404A
5 2194787 Capacitor, Start, 280MFD
6 3516446 Compressor, Relay, Danfoss
7 3516322 Drier, Filter, (2)Inlet
8 039-231-0030 Pan, Condensate, SM
9 3516454 Coil, Condenser, 1/5, 1/4, 1/3HP
1
2
3
4

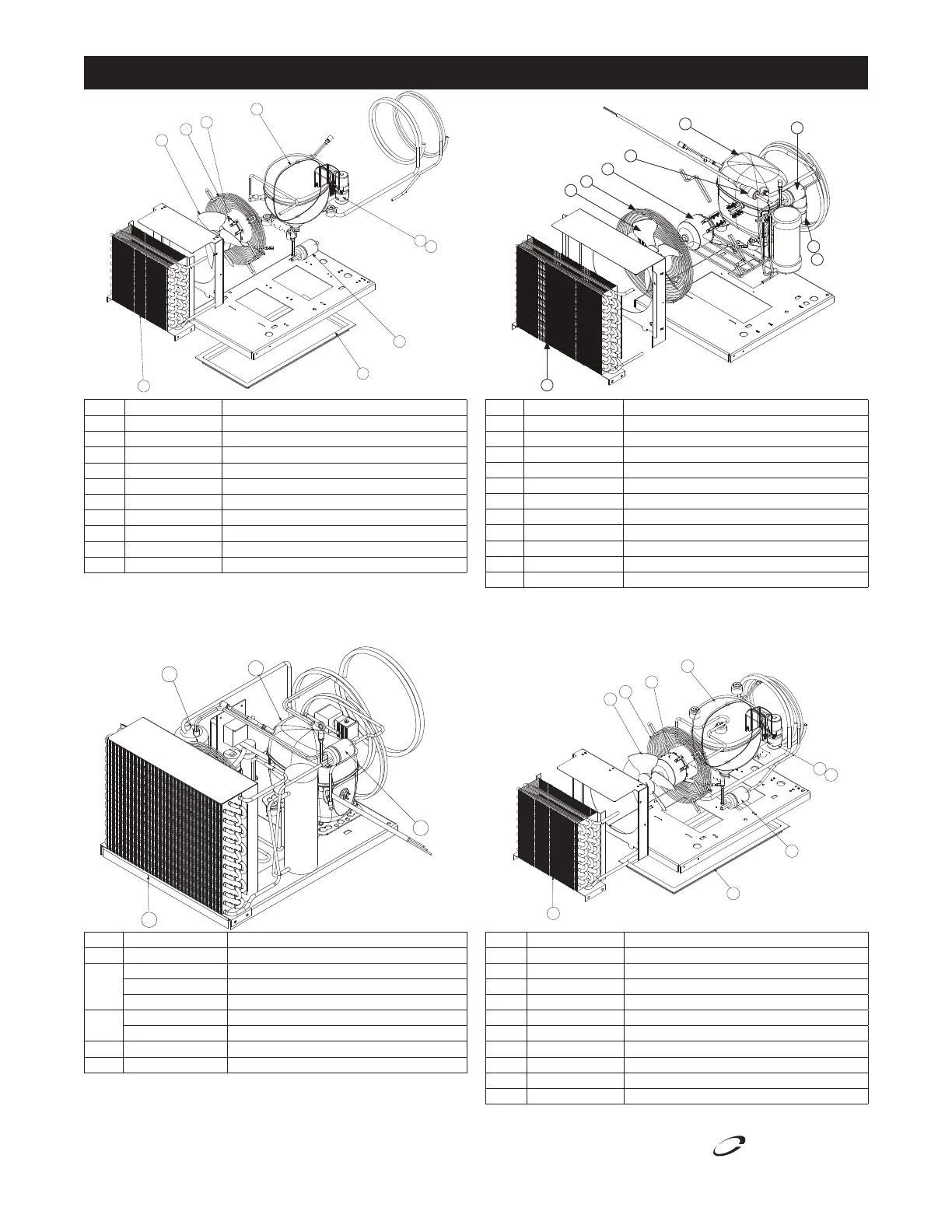

Replacement Parts - Condensing Unit Asemblies
3
2
4
5
8
7
6
1
9
