11
Compact Refrigerators
After the cabinet is connected to the power source it will
automatically begin operating. With the covers and doors
closed, the temperature of the cabinet should reach 36°F to
40°F (2°C to 4°C) in about one hour. Temperature on salad
top will maintain 33°F to 41°F (1°C to 4°C) with pans recessed
2.5” (6.5cm) at 86°F ambient room temperature for a period
of four hours, meeting NSF-7 requirements. The temperature
control on a at top unit other than 4427 models is located
on the back panel inside the refrigerator and can be adjusted
to meet the current conditions. The temperature control on
4427 at top and all salad top units is located in the rear of
the unit, 14" to 16" above oor in access hole.
Refrigerated cabinets with two evaporators have counter-
rotating fans to ensure even airow throughout the cabinet.
The left evaporator has a CCW motor and a clear fan blade
and right evaporator has a CW motor and a black fan blade.
Temperature Control Instruction for Flat Top Units
except 4427 Models
A thermostat located in the evaporator housing on the interior
rear of the cabinet controls the temperature inside the box. The
factory setting for the control is “4” and maintains about 38°F
(3°C) inside the box. Set toward “1” for higher temperatures
and set to a higher number for lower temperatures.
Temperature Control Instruction for Salad Top
Units and 4427 Flat Top Models
A thermostat located in rear of cabinet controls the
temperature inside the box. The factory setting for the control
is 4.5 and maintains about 34°F(1°C) to 36°F (2°C) inside the
box. Set toward 1 for higher temperatures and set to a higher
number for lower temperatures.
Important Information on 4427 Solid Top Models:
The unit is Energy Star Version II compliant. During normal
operation the evaporator fan pulses independently of the
compressor as dictated by the Danfoss Controller as follows:
1. During the cooling mode, compressor and evaporator
fan run simultaneously.
2. During the compressor o mode, evaporator fan pulses
three minutes on and three minutes o.
3. During an actual defrost event other than the o-cycle
defrost, compressor stays o but the evaporator fan runs
continuously.
Cabinets with pans should be operated with pans
in place. Operating the cabinet without all pans
in place will lessen eciency and may damage
the cabinet.
Continuous opening and closing of the door will
hamper the cabinet’s ability to maintain optimum
refrigeration temperature.
Top section is not intended for overnight storage.
Product should be removed from pans. Pans can
remain in cabinet while empty.
Defrosting
Refrigerators defrost automatically with every cycle of the
compressor. The water generated is routed to a pan on the
rear of the cabinet and is evaporated by the heat given o
by the compressor.
Service Alert
During normal operation the evaporator fan may cycle
and/or pulse independently of the compressor. Consult
the service manual or contact Technical Support at
1-800-733-8829 if you are unsure of the proper function.

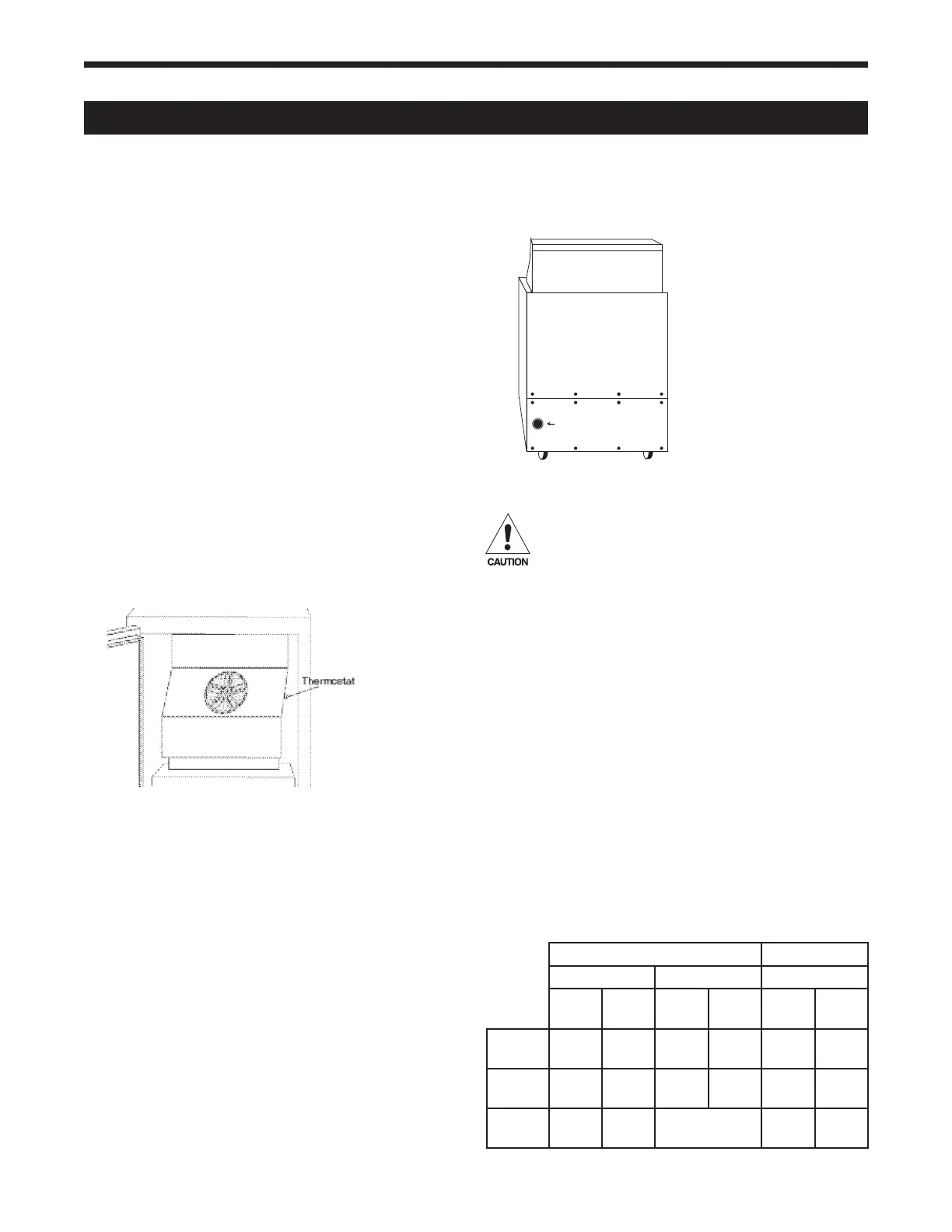

Refrigerated Cabinet Operation
Flat Top Units except 4427 Models
Temperature Control Knob Access
Salad Top Units and 4427 Flat Top Models
Cooling Cycle Defrost Cycle
Compressor On Compressor O Compressor O
Evap
Fan On
Evap
Fan O
Evap
Fan On
Evap
Fan O
Evap
Fan On
Evap
Fan O
4400
Open Top
X X X
4400
Solid Top
X X X
4427
Solid Top
X
Cycles On 3-Min,
O 3-Min
X
