3
English
NOTE: Use only direct-burial wire to prevent corrosion and prolong signal integrity. Alternatively, low-voltage lighting
wire can be used, but note that it is only available as a 2-conductor wire. If using a 2-conductor wire, run two pairs of
wires: one for the left amplifier channel/speakers and one for the right. The included wire nuts can accommodate a wire
gauge of up to 14 AWG.
4. Choosing the Speaker Wire Type
We recommend using color-coded, 4-conductor direct-burial speaker wire, such as ‘14/4’ (14-gauge, 4-conductor). Refer
to the wiring chart below to determine the minimum required wire gauge for a given distance.
Wire Gauge Distance
16 AWG Up to 150' (45 meters)
14 AWG Up to 250' (80 meters)
IMPORTANT: To prevent potential damage to the amplifier caused by short circuiting of the speaker wires, do not
connect the speaker wires to the amplifier until after all speaker connections are made and secure.
1. Refer to the installation instructions provided by the manufacturer for any other speakers included in this
installation.
2. Set the satellite speakers and subwoofer in the approximate mounting locations determined in section 3 “Planning
the Installation” on the previous page.
3. Dig a trench between the speaker locations for running the speaker wires. Be sure to follow local codes for
trenching limitations.
4. Run the speaker wire through the trench as described in the wiring instructions in section 6 “Installing the Satellite
Speakers” on the next page and section 7 “Installing the Subwoofer.“ We recommend leaving 14-16" of excess
wire per speaker so that the wire doesn’t kink or pull taut when covering the wire with dirt in the trench. Figure 4
shows the wiring of a complete system using a stereo amplifier.
5. Preparing for Speaker Installation
Recommended Items
• Shovel
• Wire stripper that accommodates up to 14-gauge wire
• Round cable stripper or utility knife
• Speaker wire spool with sufficient speaker wire for the planned installation
• Wire/zip ties
• Electrical tape
• Rubber mallet
• Measuring tape
• Tools and instructions for any other speaker components of this installation

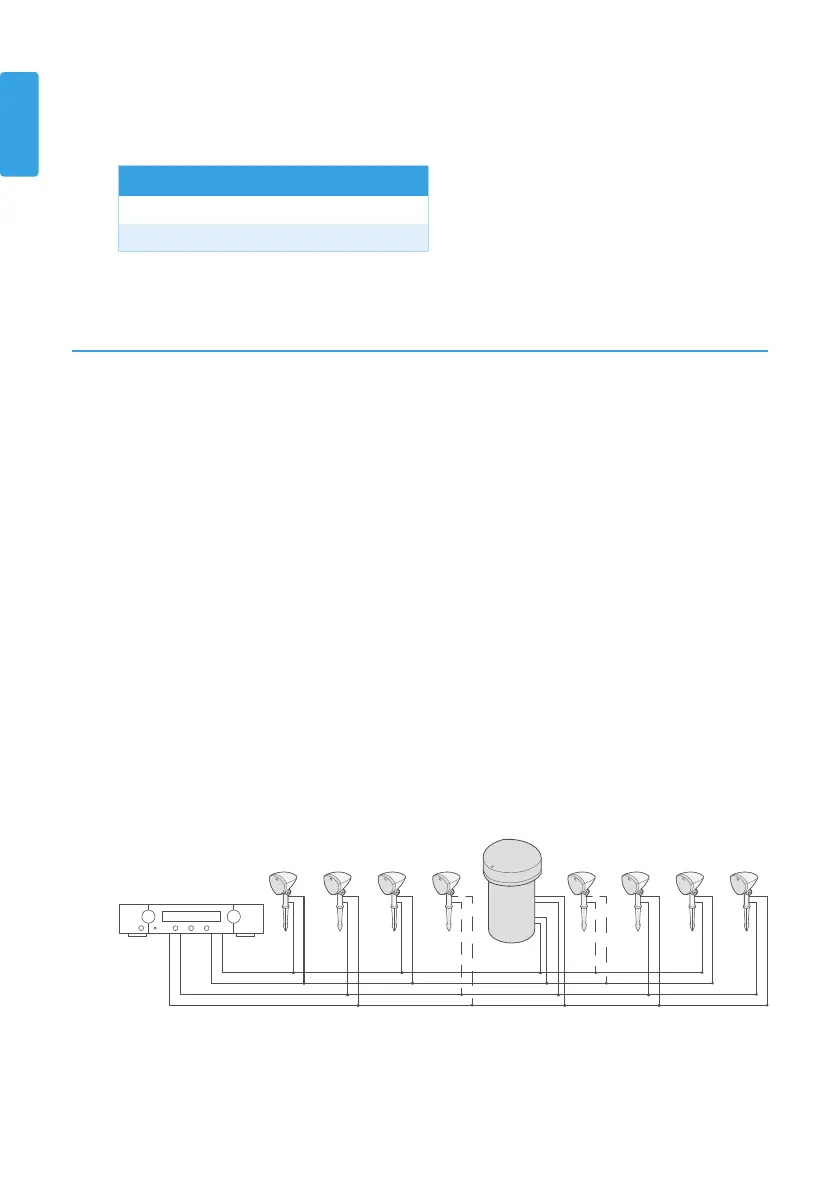

Figure 4
RIGHT RIGHT
LEFT / RIGHT
LEFT
RIGHTLEFT
LEFT LEFTRIGHT
_
+
_
+
RIGHTLEFT
IMPORTANT: Connect the subwoofer only as shown. Do not connect the two subwoofer channels in parallel, as doing so
would cause the impedance to drop too low and potentially damage the amplifier/receiver.
