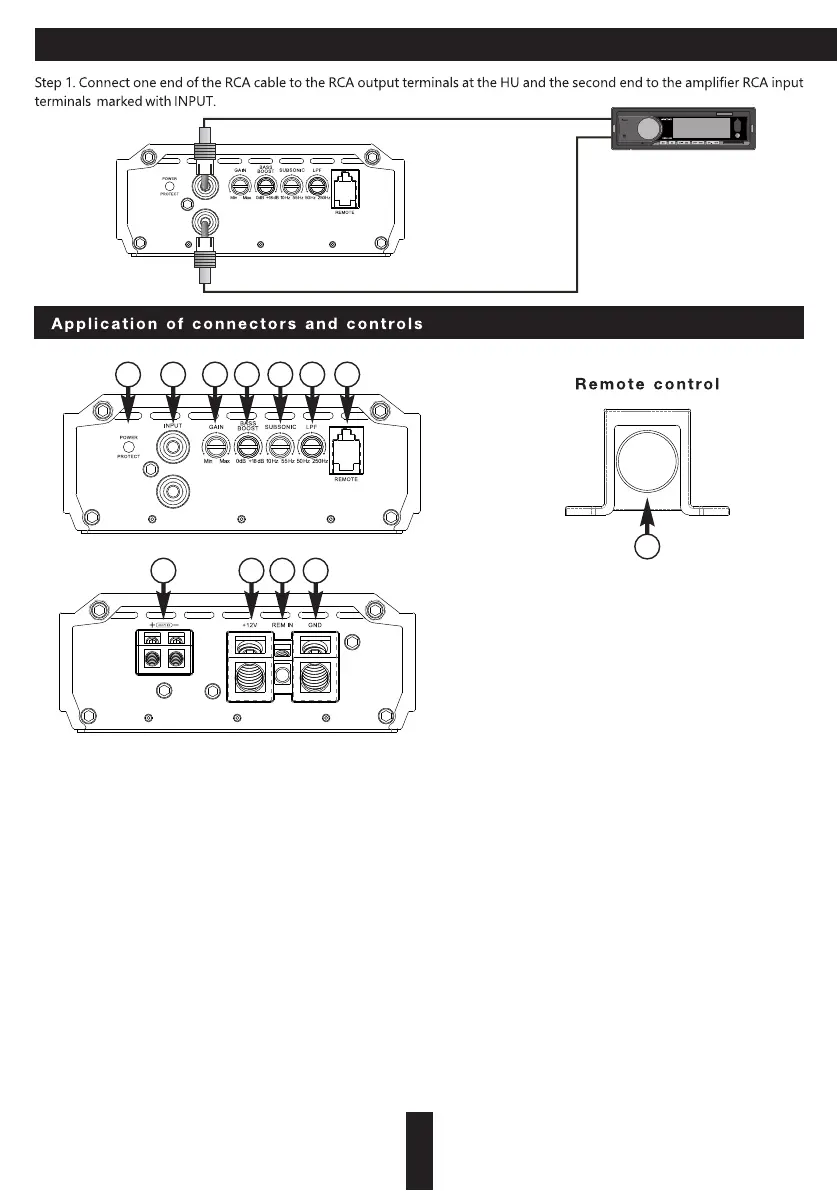

Standard wiring diagram of mono amplifier to head unit
16 17 18
5
1. POWER / PROTECT – LED for operation (blue) / LED for protection (red)
2. INPUT – signal input, RCA jacks
3. GAIN – input signal level adjustment (0.4 V – 8 V)
4. BASS BOOST – bass level (0-18 dB at 45 Hz) adjustment
6. LPF – low pass filter (50 Hz – 250 Hz at 24 dB/Oct)
8. SPEAKER OUTPUT – subwoofer connection terminals
9. +12V – power supply terminal (+12V)
10. REM IN – connector of remote activation of the amplifier
11. GND – grounding supply terminal «-»
12. GAIN - input signal level adjustment
5. SUBSONIC – subsonic frequency filter (10 Hz - 55 Hz at 24 dB/Oct)
7. REMOTE – input for connection of the bass remote control
12
SP EA KER O UT PU T
1 2 3 4 5 6 7
8 9 10 11
