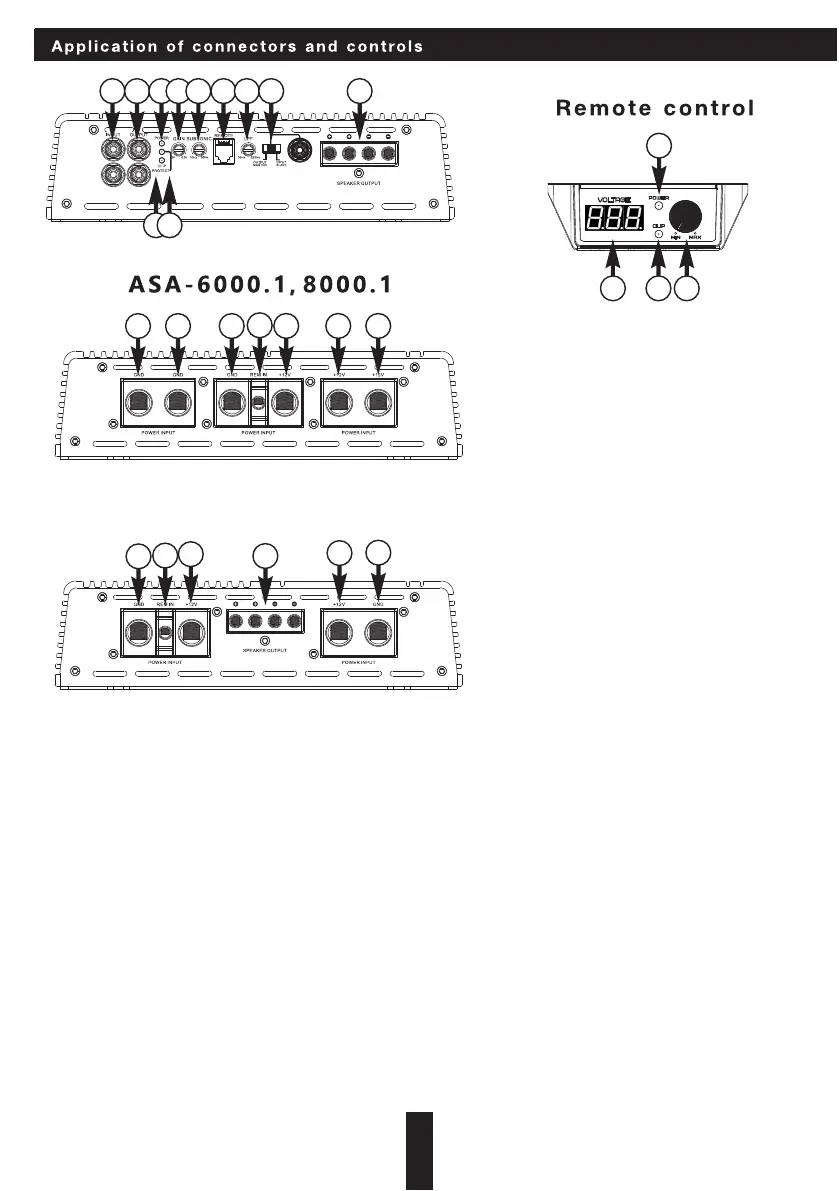

Standard wiring diagram of mono amplifier to head unit
3. POWER – LED for operation (blue)
4. PROTECT – LED for protection (red)
6. GAIN – input signal level adjustment (0.2 V – 6 V)
7. SUBSONIC – subsonic frequency filter (10 Hz - 50 Hz at 24 dB/Oct)
9. LPF – low pass filter (35 Hz – 250 Hz at 24 dB/Oct)
11. SPEAKER OUTPUT – subwoofer connection terminals
12. GND – grounding supply terminal «-»
13. REM IN – connector of remote activation of the amplifier
14. +12V – power supply terminal (+12V)
8. REMOTE – input for connection of the bass remote control
10. OUTPUT MASTER / INPUT SLAVE - selection of the amplifier operating mode
1 2 3 6 7 8 9
4
5
10 11
1. INPUT – signal input, RCA jacks
2. OUTPUT – signal output, RCA jacks
5. CLIP – LED on the clip (orange)
15. POWER – LED for operation (blue)
16. LED - DISPLAY – displays voltage readings
17. CLIP – LED on the clip (orange)
18. GAIN – input signal level adjustment
12
13
14
12 12
14 14
12
13
14
11
14
12
ASA-4000.1
15
17 1816
