4

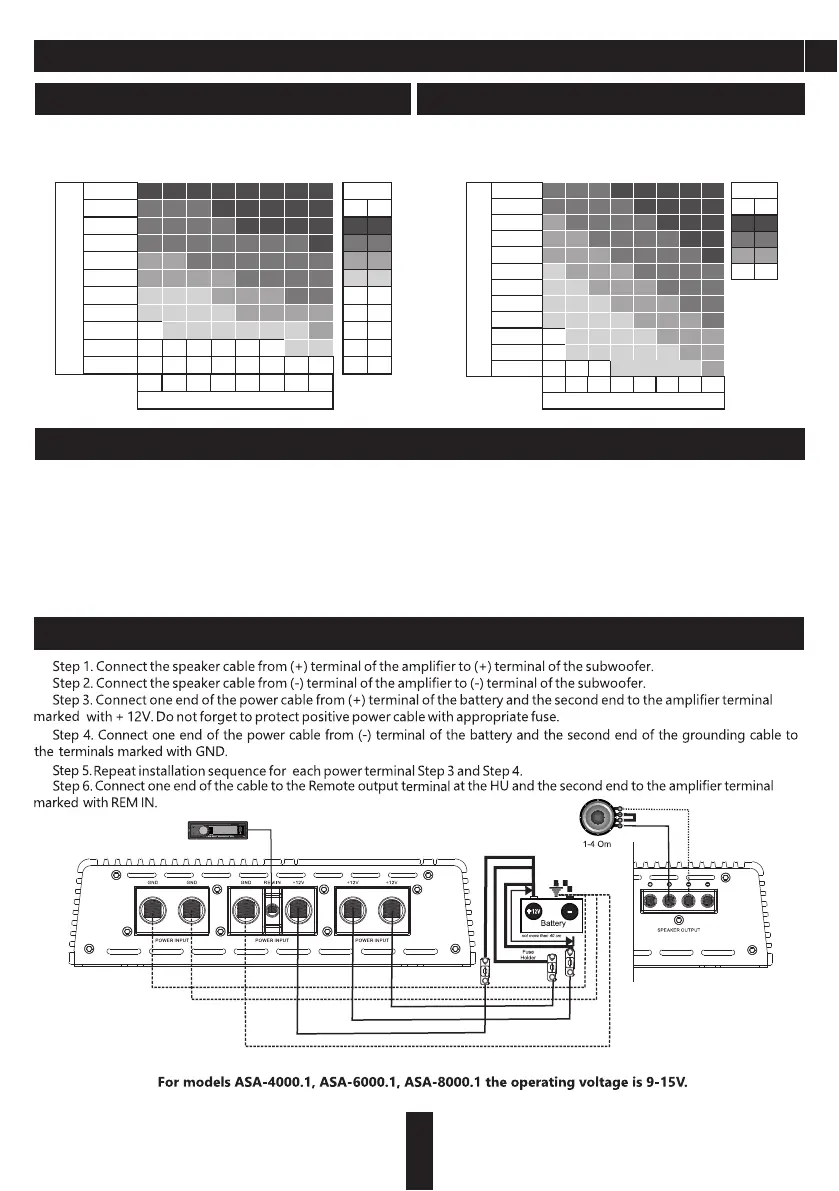

5. W I R I NG D I A GR A M S
Connect the speaker cables from the positive and negative terminals of the speakers to the respective outputs of the amplifier
terminal marked with SPEAKER OUTPUT, as shown at the diagram. To connect the power wire supply it is necessary to use .
special power cables. The fuse is placed in the holder and fixed in the cable cut. One end of the cable is connected to the positive
terminal of the battery, the second one – to the amplifier terminals marked with + 12V. Be sure to use a fuse with the parameters
sufficient for use in the system. The length and diameter of the grounding cable must conform to the length and diameter of the
cable + 12V. Connect one end to the negative terminal of the battery and the other end of the grounding cable to the terminals
marked with GND. Connect the head unit (HU) to low-level inputs of the amplifier using RCA cable.
Use the table below to select the desired diameter based
on the length and the current consumption.
Use the table below to select the desired diameter based
on the length and the power consumption.
Selection of the diameter of the power cables
Selection of the diameter of the speaker cables
EN
4. SELECTION OF THE DIAMETER OF POWER CABLES AND SPEAKER CABLES
240-350
180-240
150-180
120-150
100-120
80-100
60-80
40-60
20-40
8-20
0-8
0-1 1-2 2-3 3-4 4-5 5-6 6-7 7-8
53,5
33,6
21,2
8,4
5,3
3,3
2,1
1,3
0,8
1/0
2
4
8
10
12
14
16
18
A.W.G
mm²
Diameter
Cable length (m)
Consumption current (А)
20 000
25 000
15 000
10 000
8000
6000
4000
2000
1000
500
250
100
0-1 1-2 2-3 3-4 4-5 5-6 6-7
Cable length (m)
Power consumption (W)
7-8
16,8
8,37
5,26
2,08
5
8
10
14
A.W.G
mm²
Size
EN
Standard wiring diagram of mono amplifier to one subwoofer and to battery
Caution!!! The minimum permissible connection load impedance is 1 Ohm.
