Use the table below to select the desired diameter based

on the length and the current consumption.

Use the table below to select the desired diameter based

on the length and the power consumption.

Selection of the diameter of the power cables

Selection of the diameter of the speaker cables

4. SELECTION OF THE DIAMETER OF POWER CABLES AND SPEAKER CABLES

240-350

180-240

150-180

120-150

100-120

80-100

60-80

40-60

20-40

8-20

0-8

0-1 1-2 2-3 3-4 4-5 5-6 6-7 7-8

53,5

33,6

21,2

8,4

5,3

3,3

2,1

1,3

0,8

1/0

A.W.G

mm²

Diameter

Cable length (m)

Consumption current (А)

20 000

25 000

15 000

10 000

8000

6000

4000

2000

1000

500

250

100

0-1 1-2 2-3 3-4 4-5 5-6 6-7

Cable length (m)

Power consumption (W)

7-8

16,8

8,37

5,26

2,08

A.W.G

mm²

Size

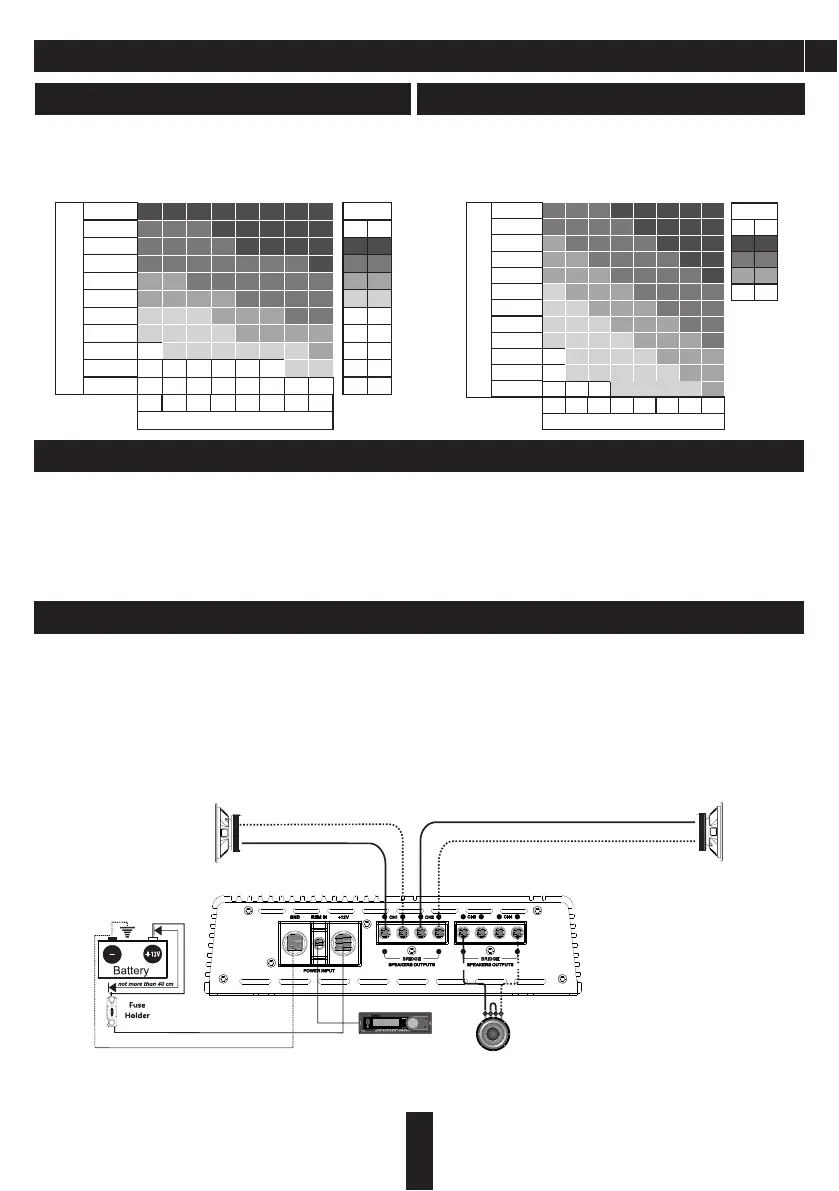

5. WIRING DIAGRAMS

Standard wiring diagram of four-channel amplifier to two speakers, to one subwoofer and to battery

Connect the speaker cables from the positive and negative terminals of the speakers to the respective outputs of the ampliﬁer

terminal marked with CH1 / CH2, CH3 / CH4 SPEAKERS OUTPUTS, as shown at the diagram. To connect the power wire supply it

is necessary to use special power cables. The fuse is placed in the holder and ﬁxed in the cable cut. One end of the cable is

connected to the positive terminal of the battery, the second one – to the ampliﬁer terminals marked with +12V. Be sure to use a

fuse with the parameters suﬃcient for use in the system. The length and diameter of the grounding cable must conform to the

length and diameter of the cable +12V. Connect one end to the negative terminal of the battery and the other end of the

grounding cable to the terminals marked with GND. Connect the head unit (HU) to low-level inputs of the ampliﬁer using RCA

cable.

Step 1. Connect the speaker cable from (+) terminal of the ampliﬁer to (+) terminal of the speaker.

Step 2. Connect the speaker cable from (-) terminal of the ampliﬁer to (-) terminal of the speaker.

Step 3. Repeat the installation sequence for each speaker step 1 and step 2.

Step 4. Connect the speaker cable from (+) terminal of the ampliﬁer to (+) terminal of the subwoofer.

Step 5. Connect the speaker cable from (-) terminal of the ampliﬁer to (-) terminal of the subwoofer.

Step 6. Connect one end of the power cable from (+) terminal of the battery and the second end to the ampliﬁer terminal marked

with + 12V. Do not forget to protect positive power cable with appropriate fuse.

Step 7. Connect one end of the power cable from (-) terminal of the battery and the second end of the grounding cable to the

terminals marked with GND.

Step 8. Connect one end of the cable to the Remote output terminal at the HU and the second end to the ampliﬁer terminal marked

with REM IN.

Caution!!! The minimum permissible connection load impedance at single channel is 1 ohm.

For models ASA-550.4 and ASA-750.4 the operating voltage is 9-16V.

1-8 Ohm

min. 2 Ohm

1-8 Ohm
