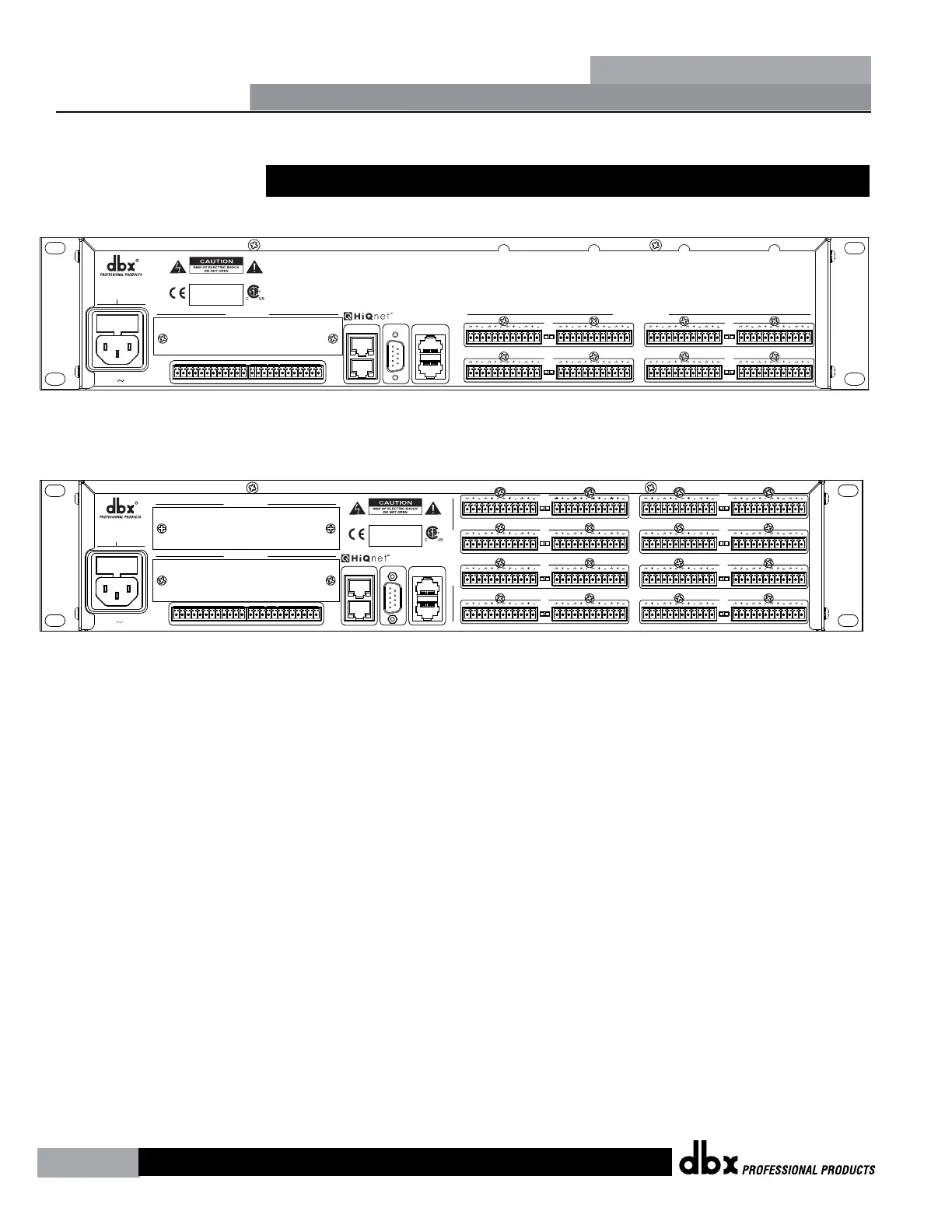

2.2 Rear Panel

SC 32

75 WATTS

100-240V 50/60Hz

8 7 6 5 4 3 2 18 7 6 5 4 3 2 1

INPUTS / OUTPUTSOPTION SLOT

ZC INPUTS 1 - 6

ZC INPUTS 7 - 12

RS-232

ETHERNET

1CC 2 3 4 5 6

7 8 R R

+

NCCNO

-

C 1 2 3 4 5 6

RELAY OPTO

LOGIC OUTPUTSCONTROL INPUTS

A HARMAN INTERNATIONAL COMPANY

SALT LAKE CITY , UTAH

SC 32

C A

D B

FUSE REPLACEMENT RATINGS

100V-240V T 2.5A, H 250V

ELECTRIQUE - NE PAS OUVRIR

RISQUE DE CHOC

ATTENTION:

FOR

UL60065

120V~,60Hz

IEC60065

WARNING:

TO REDUCE THE

RISK OF FIRE OR ELECTRIC

SHOCK DO NOT EXPOSE THIS

EQUIPMENT TO RAIN OR

MOISTURE

SC 64

120 WATTS

100-240V 50/60Hz

8 7 6 5 4 3 2 18 7 6 5 4 3 2 1

8 7 6 5 4 3 2 18 7 6 5 4 3 2 1

8 7 6 5 4 3 2 18 7 6 5 4 3 2 1

INPUTS / OUTPUTS

ZC INPUTS 1 - 6

ZC INPUTS 7 - 12

RS-232

ETHERNET

RELAY OPTO

LOGIC OUTPUTSCONTROL INPUTS

1CC 2 3 4 5 6

7 8 R R

+

NCCNO

-

C 1 2 3 4 5 6

A HARMAN INTERNATIONAL COMPANY

SALT LAKE CITY , UTAH

SC 64

E A

F B

G C

H D

FUSE REPLACEMENT RATINGS

100V-240V T 2.5A, H 250V

OPTION SLOT 1

OPTION SLOT 2

ELECTRIQUE - NE PAS OUVRIR

RISQUE DE CHOC

ATTENTION:

FOR

UL60065

120V~,60Hz

IEC60065

WARNING:

TO REDUCE THE

RISK OF FIRE OR ELECTRIC

SHOCK DO NOT EXPOSE THIS

EQUIPMENT TO RAIN OR

MOISTURE

OPTION SLOTS

High-speed Option Slots accommodating high-bandwidth networked audio options cards

(coming soon).

SC 32 - One Option Slot.

SC 64 - Two Option Slots.

POWER CONNECTOR

IEC power connector.

FUSE

Field-serviceable fuse.

CONTROL INPUTS

Allow up to eight contact closures to be used to control HiQnet™ parameters.

RELAY

Integrated relay with Normally Open (NO) and Normally Closed (NC) terminals driven from

HiQnet parameters.

Section 2

Getting Started

®

6

SC 32 / SC 64
