OPERA UNICA 12 - OPERA UNICA 15 Cod. 420120269 REV. 1.0

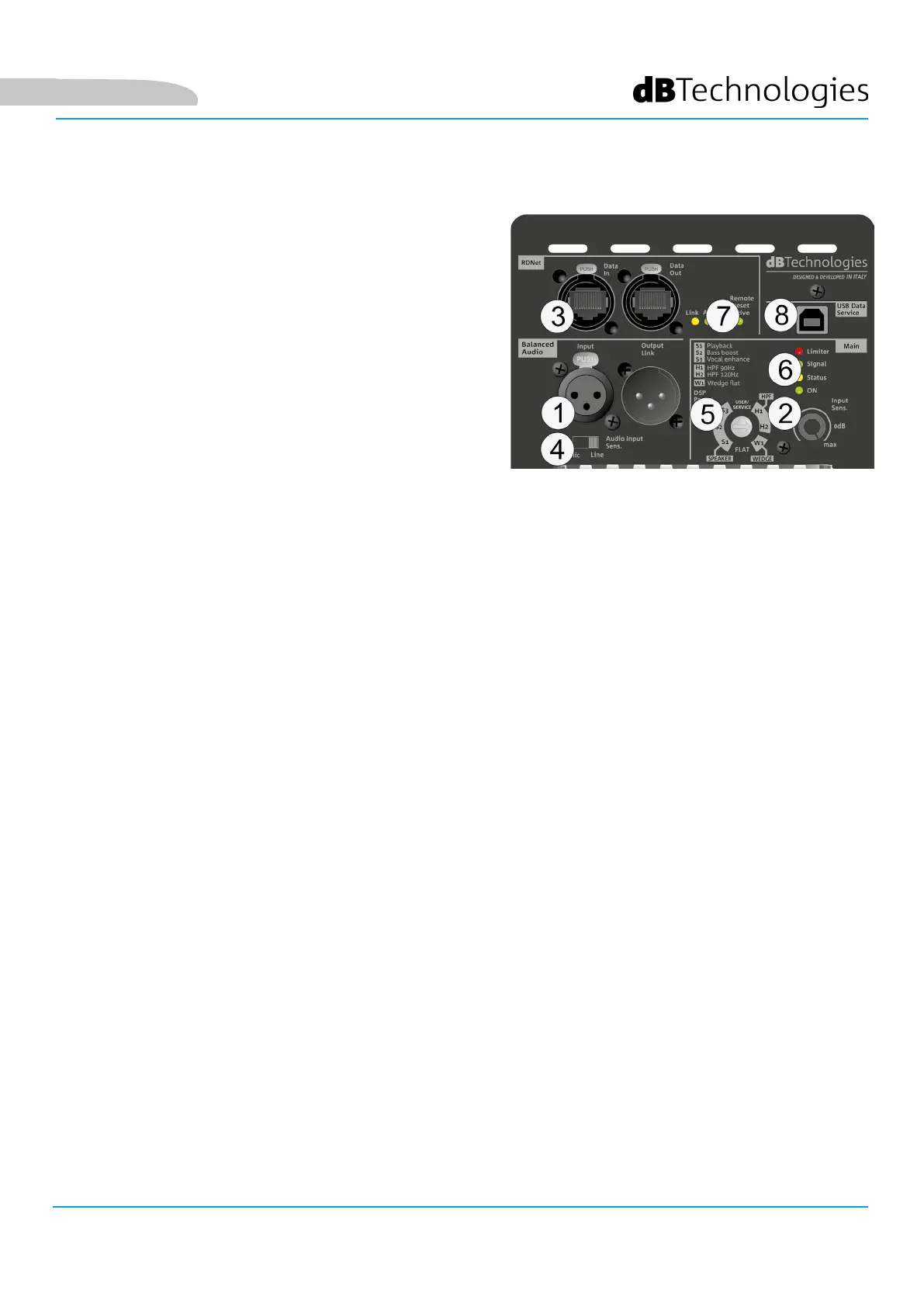

INPUT, OUTPUT, RDNET AND CONTROL SECTION

5. DSP PRESET - ROTARY AND TABLE

The presets selectable through rotary are shown in this table as a reminder.

SPEAKER

S1 - Playback, suitable for a music program playback

S2 - Bass boost, with emphasis on low frequencies

S3 - Vocal enhance, suitable for human voice

HPF

H1 - HPF 90Hz, applies a lters with cut-off frequency at 90 Hz

H2 - HPF 120Hz, applies a lter with a frequency

WEDGE

W1 - WEDGE FLAT,

FLAT

FLAT - It does not equalise the loudspeaker output.

USER/SERVICE - POSITION FOR FIRMWARE UPDATE

1. INPUT AND OUTPUT LINK (“Balanced audio”)

Input and output compatible with balanced XLR cables.

In particular, "Input" is used to connect with the audio

signal coming from the mixer or from another loudspeaker,

"Output Link" is used to link the signal to other

loudspeakers. Daisy-chain conguration.

2. INPUT SENSITIVITY

Allows adjusting the attenuation of the speaker using the

input volume.

3. INPUT AND NETWORK CONNECTION LINK RDNet

Section compatible with network cables with etherCON/RJ45

connectors.

In particular, "Data in" must be connected to devices such

as RDNet Control 2 or Control 8; "Data Out" is used to

link the network to additional loudspeakers in daisy-chain

conguration.

6. STATUS LEDs

LEDs relating to speaker operation. See explanatory table in the following page.

7. CONTROL LEDs

LEDs relating to module network operation (RDNet).

In particular, if "Link" is on the RDNet network is active and has acknowledged the device, if "Active" is ashing

there is data trafc, if "Remote Preset Active" is on all local control on the amplier panel are by-passed by the

RDNet remote control.

8. SERVICE DATA USB PORT

It is a USB B port to be used only for product rmware update. For further information refer to "FIRMWARE

UPDATE".

4. INPUT SENSITIVITY “Mic/Line” SWITCH

Set the switch to “Mic” in case of microphone input and to “Line” in case of signal coming from a mixer or from

another loudspeaker.
