9
dBTechnologies Composer REV. 6.0 Cod. 420120250 REV. 1.0
SOFTWARE

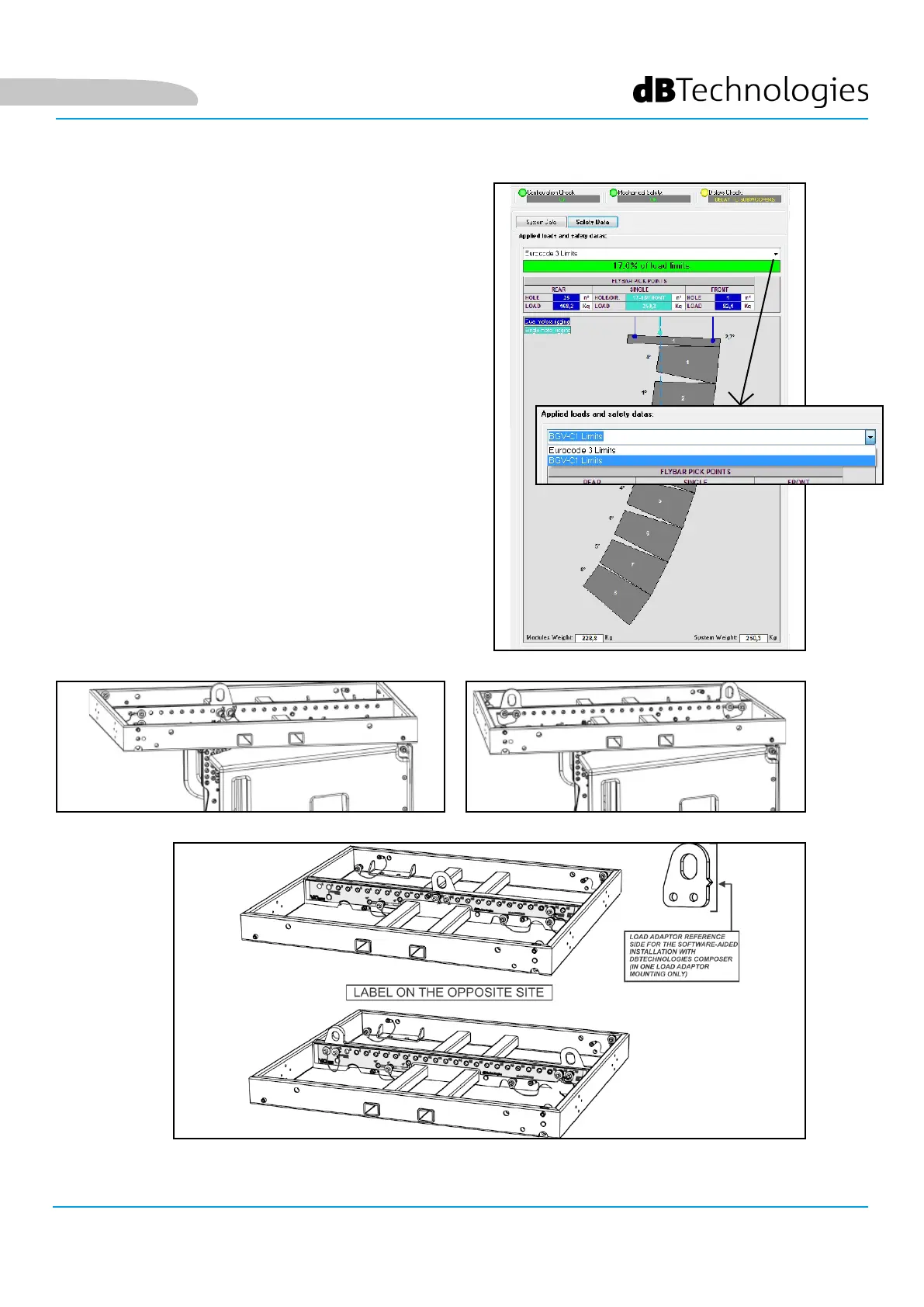

In Safety Data, the user can nd a complete simulation
of the line-array center of gravity, with weight and safety
informations.
In particular, 2 safety references, as usual, can be
choosen (EUROCODE 3 or BGV-C1). The related result is a
percentage of the maximum weight capacity used in the
conguration, shown in a green label, if safe, or in red
label, if not admitted.
In case of use of only one chain motor, the “SINGLE”
reference give the number of the holes in load adaptor
positioning.
Please note that these holes are numbered on a label
on the side of the actual DRK-210 y-bar frame. The
“FRONT”/”REAR” indication is about the reference of 1
load adaptor, as shown in the picture below. In case of
“FRONT” this reference must be on the side of the front of
line-array, in case of “REAR” in the rear one.
In case of use of two chain motors, the references
holes are the external (extreme) one, and the reference
orientation it is not important.
Please not that in each case each motor has to be sized in
accordance with the weight reported in “LOAD” eld.
For further information please refer also to DRK-210
mounting instructions.
