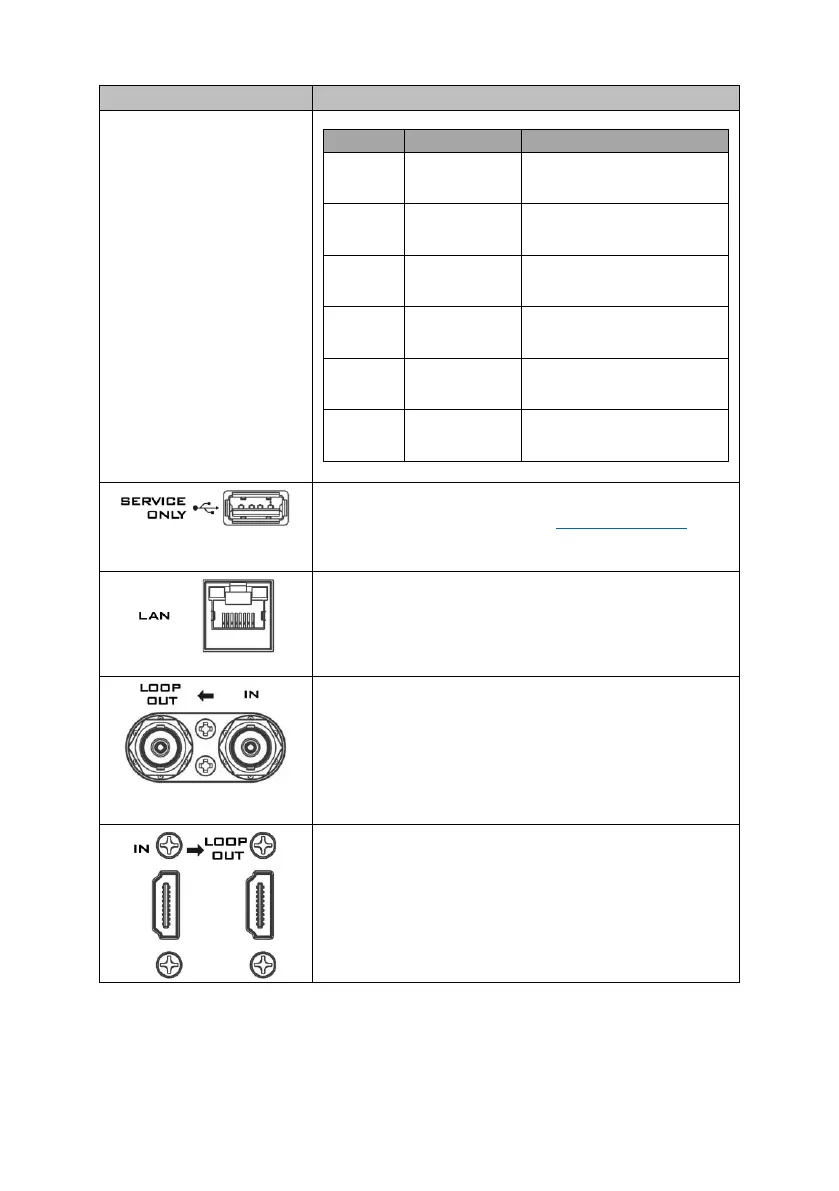

Ports
Descriptions
Pin No.
Signal Name
Descriptions
1
Red
Red tally light indicator
for monitor A
3
Green
Green tally light
indicator for monitor A
4
GND
Ground for monitor A’s
tally signal
6
Red
Red tally light indicator
for monitor B
8
Green
Green tally light
indicator for monitor B
9
GND
Ground for monitor B’s
tally signal
Service Only Port (SERVICE)
For firmware upgrade only; see Firmware Update for
more information about firmware upgrade.
LAN Port
Currently unavailable.
SDI Input/Output Pair
Connect an SDI video source to the SDI IN port. The
Loop Out port is simply a loop thru output of the SDI
input.
HDMI Input/Output Pair
Connect an HDMI video source to the HDMI IN port.
The Loop Out port is simply a loop thru output of the
HDMI input.
