3. Description of the Device
The DAP PA-5500SA is an internet radio and multimedia player with an integrated 460-watt, 100-volt amplifier.
Designed to fit into a 19-inch rack, the device has both balanced and unbalanced inputs and outputs. It can
be operated using the controls on the front, with the 4STREAM app or with the included remote control.
3.1. Front View

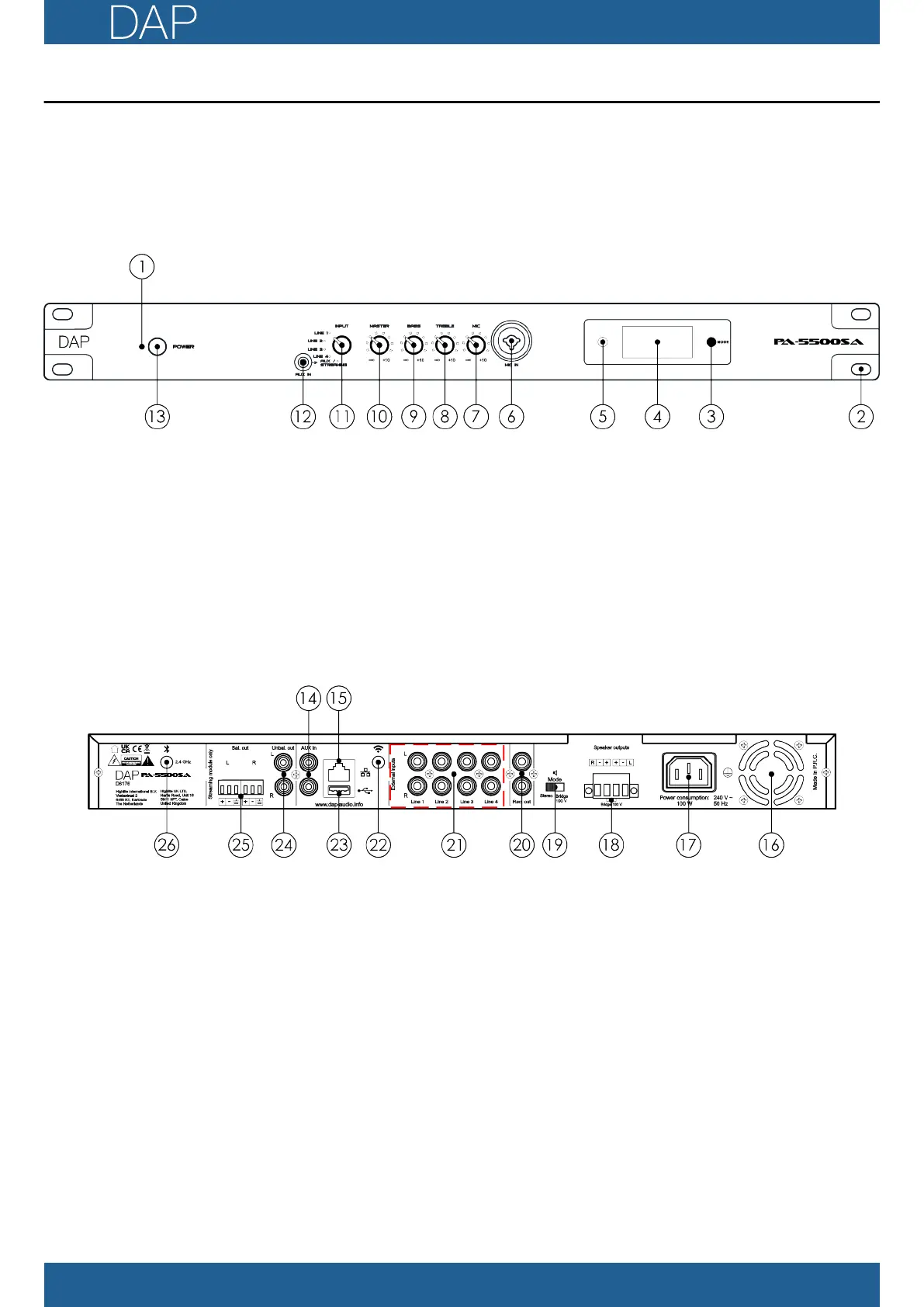

Figure 2
01) Power LED indicator (blue) 08) Treble level control knob
02) 4 x mounting openings (for installation in a 19" rack) 09) Bass level control knob
03) Mode button 10) Master level control knob
04) OLED display (1,4") 11) Input selector knob
05) Standby LED indicator (red) 12) Balanced auxiliary IN (mini jack)
06) Balanced microphone IN (XLR/jack combo) 13) Power switch ON/OFF
07) Microphone level control knob
3.2.
Back View
Figure 3
14) Unbalanced auxiliary IN (RCA - left/right) -
(streaming module only)
21) 4 x unbalanced line IN (RCA - left/right)
15) RJ45 LAN connector IN 22) Wi-Fi antenna connector
16) Fan vent 23) USB-A port
17) IEC power connector IN 24) Unbalanced OUT (RCA - left/right) -
(streaming module only)
18) Speaker OUT (wire terminals - left/right -
positive/negative)
25) Balanced OUT (wire terminals - left/right -
positive/negative/ground)
19) Mode switch (stereo - bridge/100 V) 26) Bluetooth antenna connector
20) Unbalanced recording OUT (RCA - left/right)
