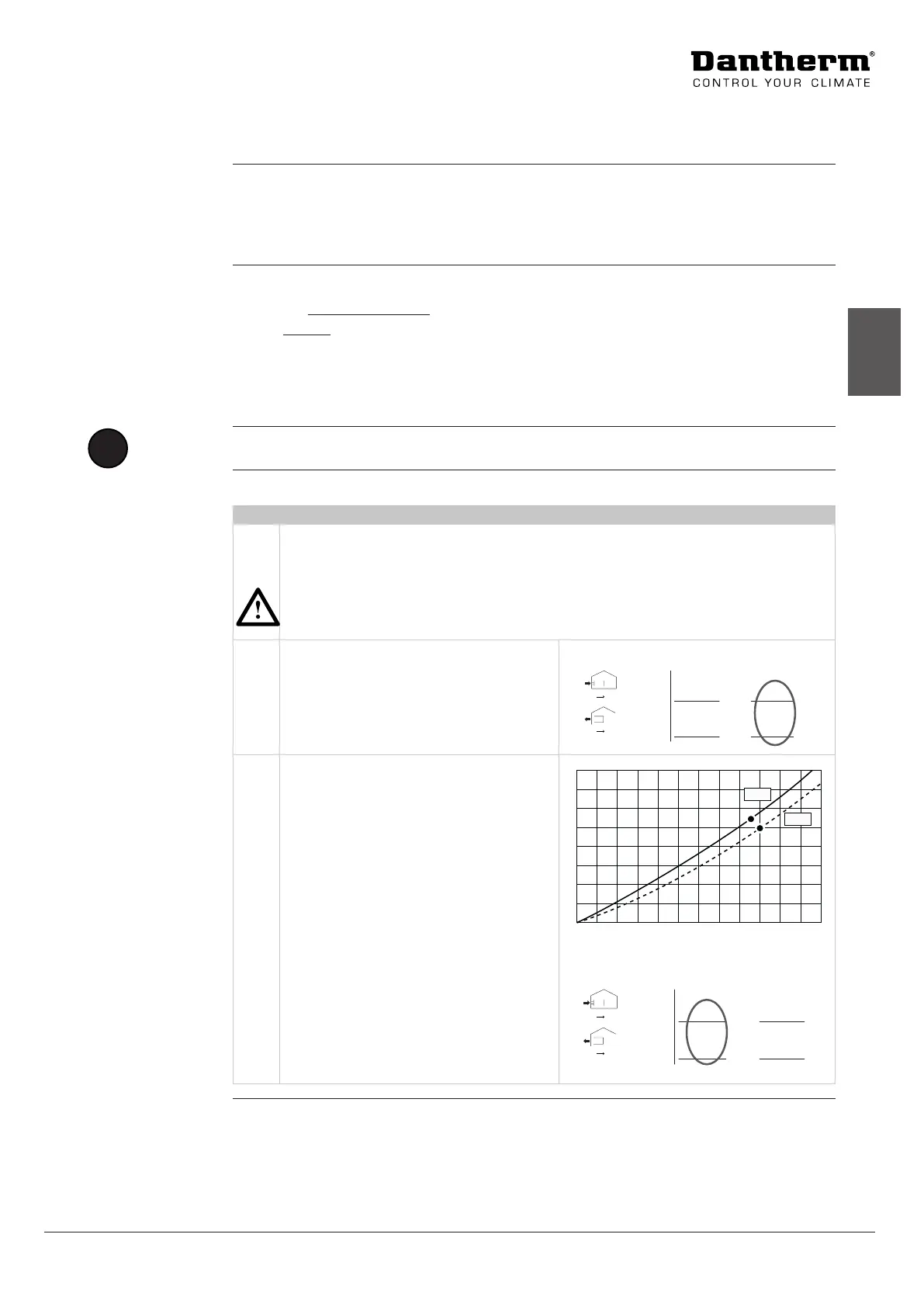

INSTALLATION & SERVICE MANUAL FOR PROFESSIONALS
Installation: Calibration of airow
en
Calibration of airow
In order to achieve the correct comfort level, as well as to control humidity levels, it is import-
ant to adjust the amount of supply air entering the house, as well as the exhaust air from the
house.
This is done by adjusting the fan speed level in a nominal mode corresponding to level 3.
Calibration of the airow can be done in two ways:
1. via the membrane keypad on the unit (see description below)
2. via PC Tool (follow the step-by-step description in PC Tool)
In both procedures, the airow must be calibrated by measuring ΔPa over the heat exchanger
using the pressure nozzles behind the front plate.
Dantherm recommends a handheld manometer, such as Testo 510 or similar.
Pour 0.5 L water into the water trap to prevent leakage from the drain prior to calibration.
Follow these steps in preparation for calibrating the device.
Step Action Illustration
1 Use the desired airow rate according to national regulations that corresponds to
the size and pressure drop of the house.
The supply airow must under no circumstances be higher than the exhaust airow,
as this can lead to humid air being pressed into the building structure with harmful,
negative eects on the building.
2 Note the desired values for supply and
exhaust airow rates on the label located
on the cover of the heat exchanger.
(The values shown are examples for illus-
trative purposes only)
Airow
Einstellwerte / Calibration / Calibrazione
020
30
10
40 60 80 100 120 140 160 180 200 220 240
40
50
60
70
80
20
0
[Pa] [m³]
[m³][Pa]
P1 P2
P3 P4
P1-P2
P3-P4
Airow
Einstellwerte / Calibration / Calibrazione
020
30
10
40 60 80 100 120 140 160 180 200 220 240
40
50
60
70
80
20
0
[Pa] [m³]
[m³][Pa]
P1 P2
P3 P4
P1-P2
P3-P4
Airow
Einstellwerte / Calibration / Calibrazione
020
30
10
40 60 80 100 120 140 160 180 200 220 240
40
50
60
70
80
20
0
[Pa] [m³]
[m³][Pa]
P1 P2
P3 P4
P1-P2
P3-P4
171
180
3 Locate the corresponding pressure drop
on the airow graph on the heat ex-
changer and note the value as shown.
Airow
Einstellwerte / Calibration / Calibrazione
020
30
10
40 60 80 100 120 140 160 180 200 220 240
40
50
60
70
80
20
0
[Pa] [m³]
[m³][Pa]
P1 P2
P3 P4
P1-P2
P3-P4
Airow
Einstellwerte / Calibration / Calibrazione
020
30
10
40 60 80 100 120 140 160 180 200 220 240
40
50
60
70
80
20
0
[Pa] [m³]
[m³][Pa]
P1 P2
P3 P4
P1-P2
P3-P4
Airow
Einstellwerte / Calibration / Calibrazione
020
30
10
40 60 80 100 120 140 160 180 200 220 240
40
50
60
70
80
20
0
[Pa] [m³]
[m³][Pa]
P1 P2
P3 P4
P1-P2
P3-P4
171
180
50
54
Introduction
Calibration tools
!
NOTE
Use of graph
Warning
Caution
