8.
X1
X1 X2 X3
X2 X3 X1 X1
2
3
1 4
4
1
e30bj138.10

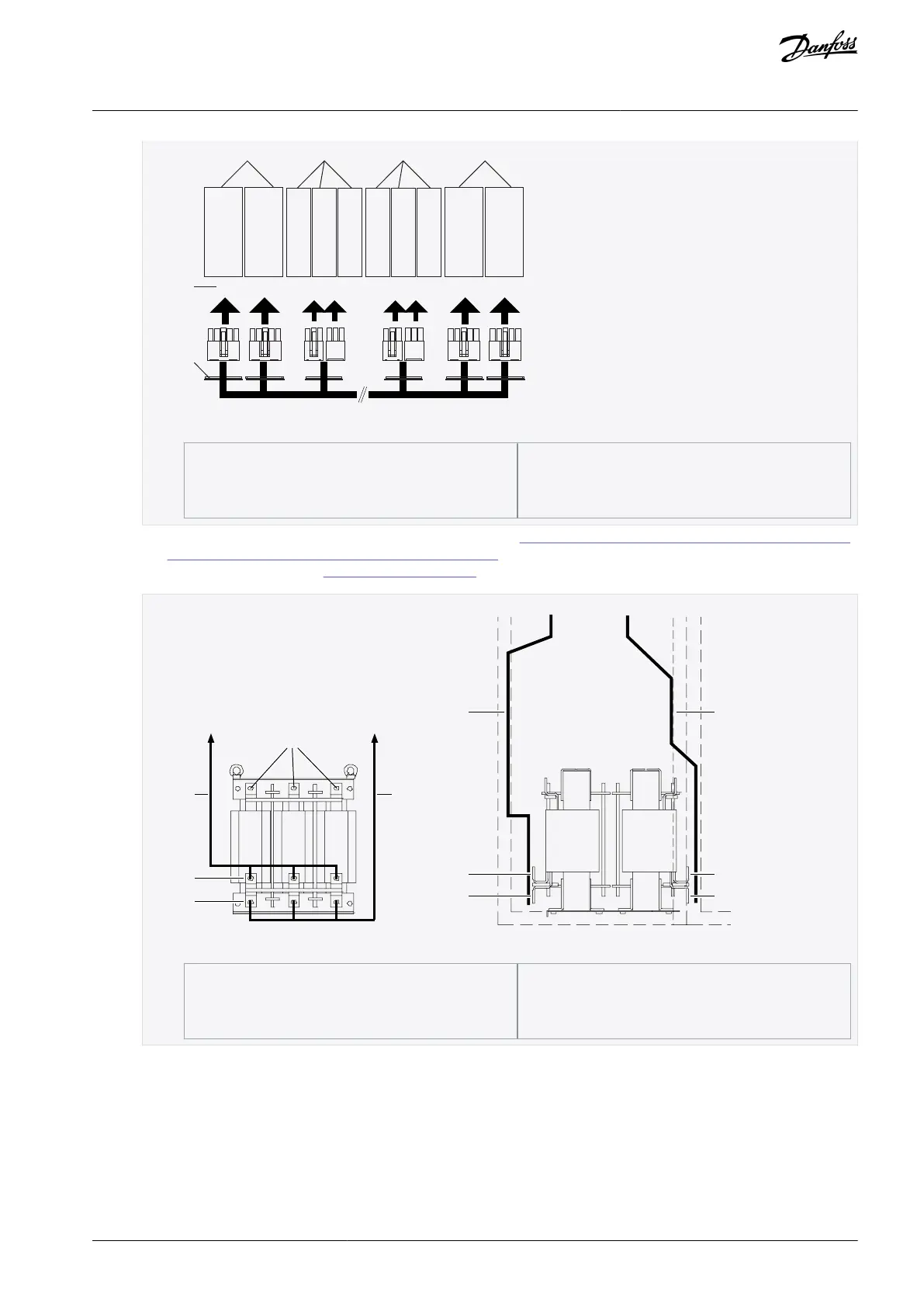

Illustration 48: FR14 with 4 NFE units
1
NFE unit
2
Terminal on the unit
3
Rubber grommet
4
Inverter unit
Route the incoming busbars to the AC chokes in the cabinet. See 12.4.2 Busbar and Terminal Dimensions for 380–500 V AC
and 12.4.6 Busbar and Terminal Dimensions for 525–690 V AC for the dimensions for the used busbars. Install a busbar on
each pole of the AC choke. See 6.4 AC Choke Connections for information about AC choke connections.
L1 L2 L3
1
3
4
1
2
1
3
4
3
4
1
e30bk606.10
Illustration 49: Cabling from AC choke to NFE
1
Cables or busbars to NFE
2
Terminals for supply cables or busbars
3
Upper set of terminals
4
Lower set of terminals
AQ468246143802en-000201 / DPD00888 | 67Danfoss A/S © 2023.09
Electrical Installation
VACON® NXP IP00 Drive Modules
Operating Guide
